Component Location, Vehicle View

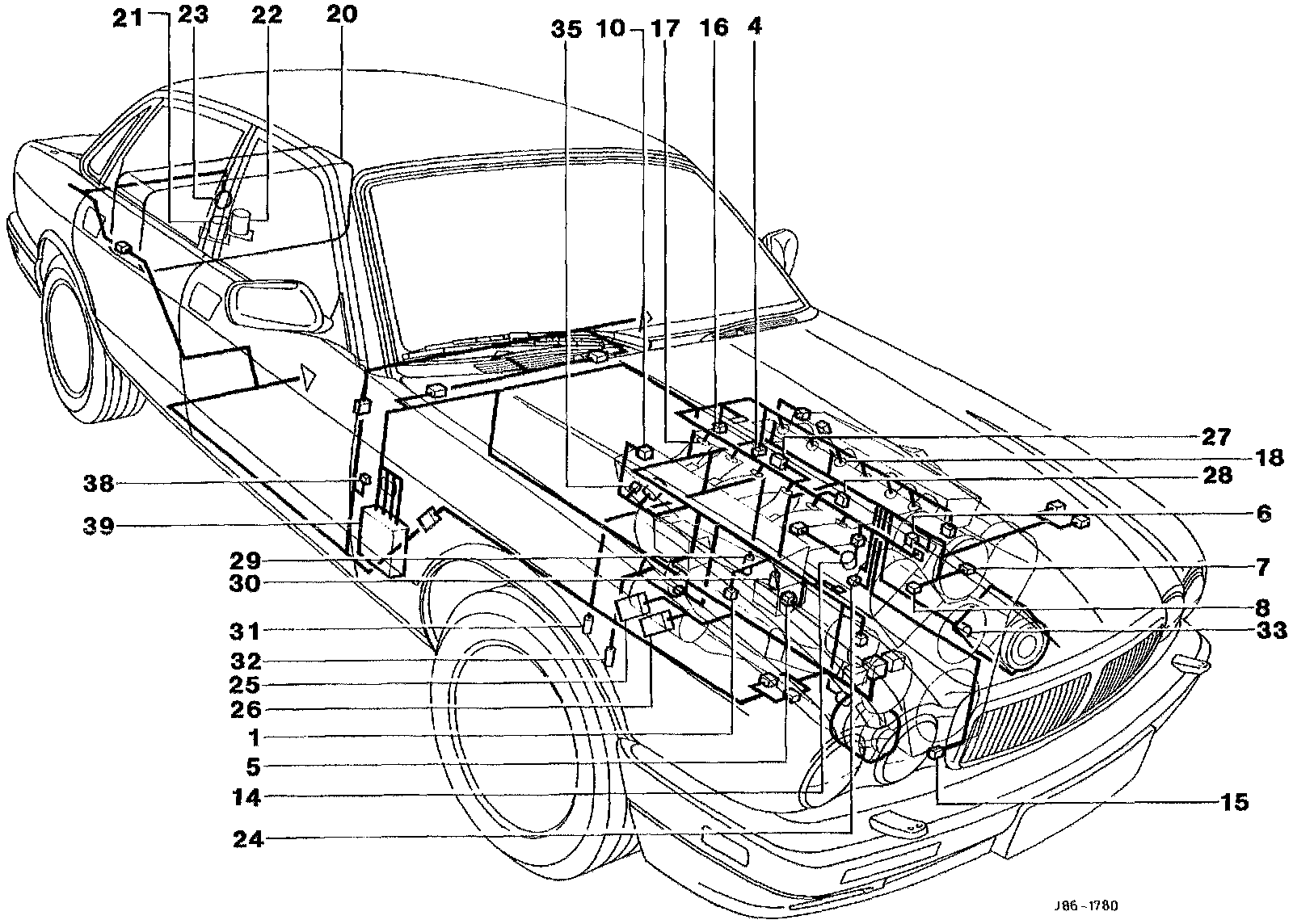

Fig. 1:

1. Intake Air Temperature Sensor
4. Throttle Position Sensor
5. A-Bank Idle Air Control Valve
6. B-Bank Idle Air Control Valve
7. A-Bank Evap. Emission Purge Control Solenoid Valve
8. B-Bank Evap. Emission Purge Control Solenoid Valve
10. A-Bank Manifold Absolute Pressure Sensor
14. Camshaft Position Sensor
15. Engine Position Sensor
16. Engine Speed Sensor
17. A-Bank Fuel Injectors
18. B-Bank Fuel Injectors
20. Fuel Tank
21. Main Fuel Pump
22. Secondary Fuel Pump
23. Fuel Level Sensor
24. Engine Coolant Temperature Sensor
25. A-Bank Ignition Amplifier
26. B-Bank Ignition Amplifier
27. A-Bank Ignition Coil
28. B-Bank Ignition Coil
29. A-Bank Upstream Heated Oxygen Sensor
30. B-Bank Upstream Heated Oxygen Sensor
32. B-Bank Downstream Heated Oxygen Sensor
31. A-Bank Downstream Heated Oxygen Sensor
33. Secondary Air Injection Pump
35. Vacuum Solenoid Valve
38. Inertia Fuel Shut-off Switch
39. Engine Control Module
