Federal Engine Management, Part 2

Q�Federal Engine Management, Part 2:

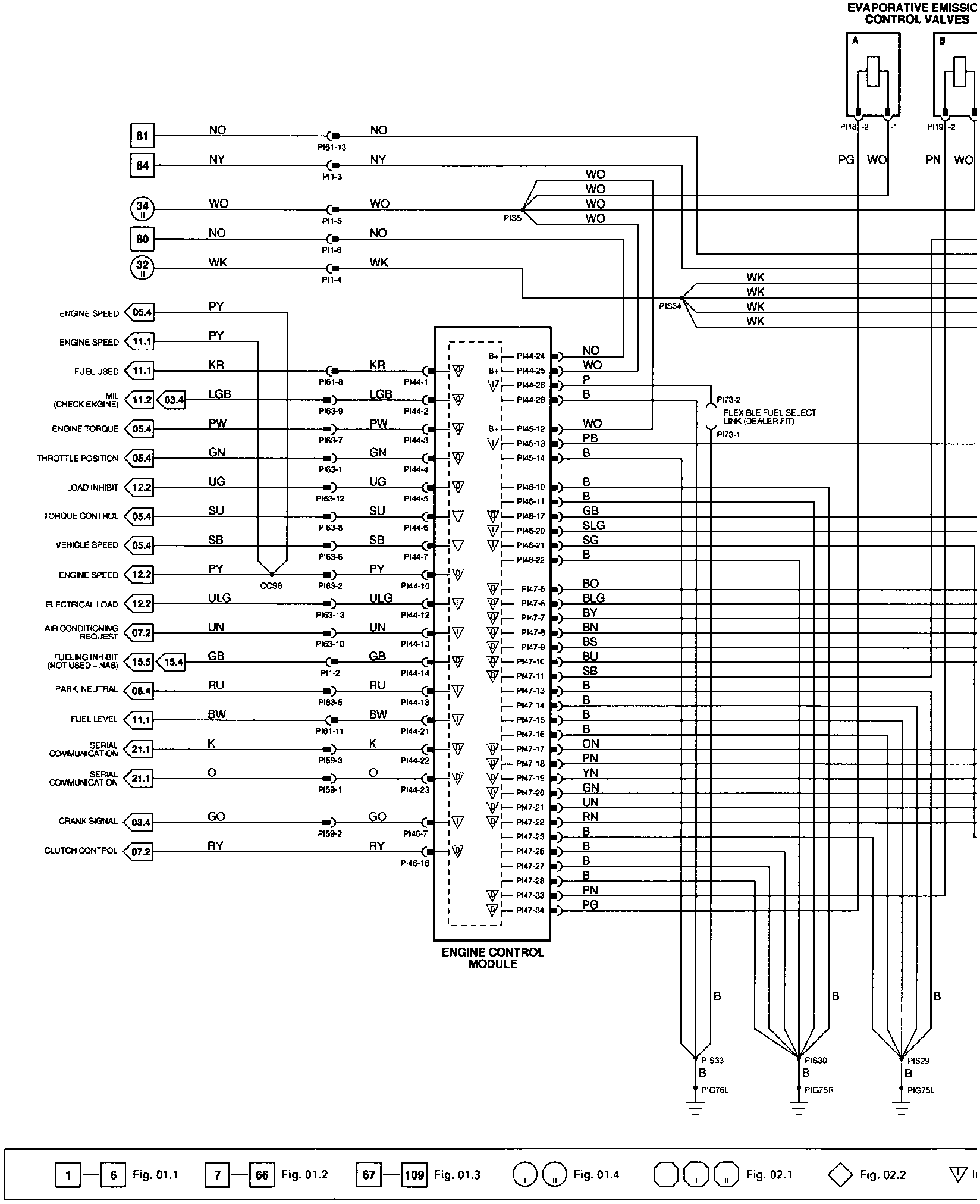

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

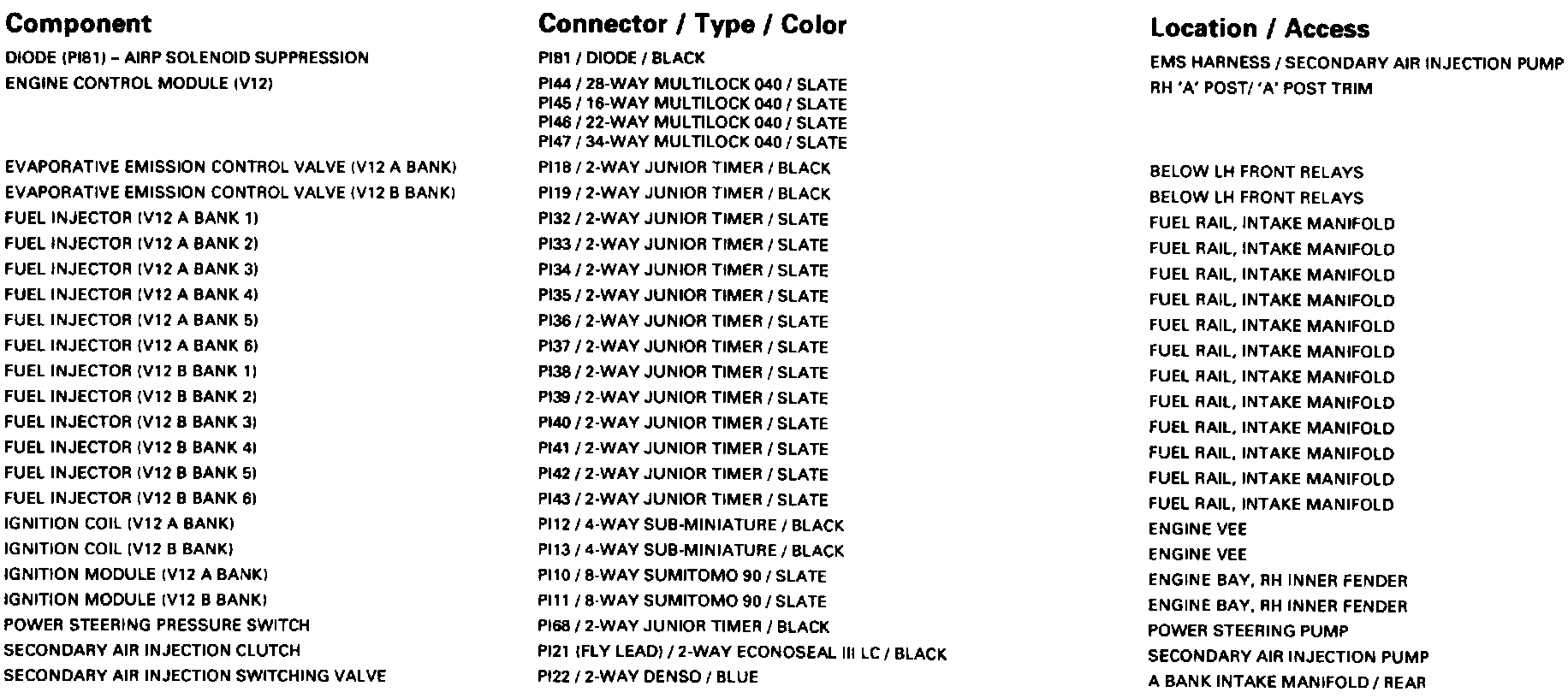

Federal Engine Management, Part 2: Components:

Component Information

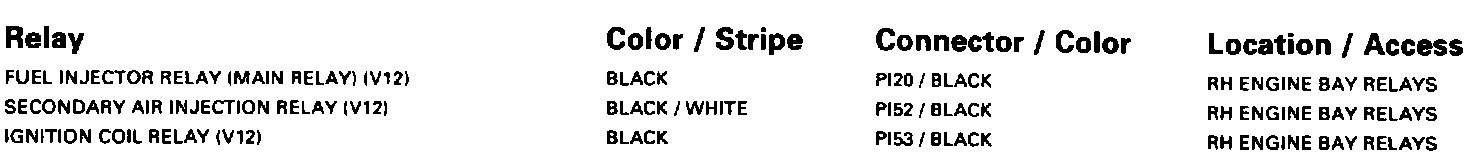

Federal Engine Management, Part 2: Relays:

Relay Information

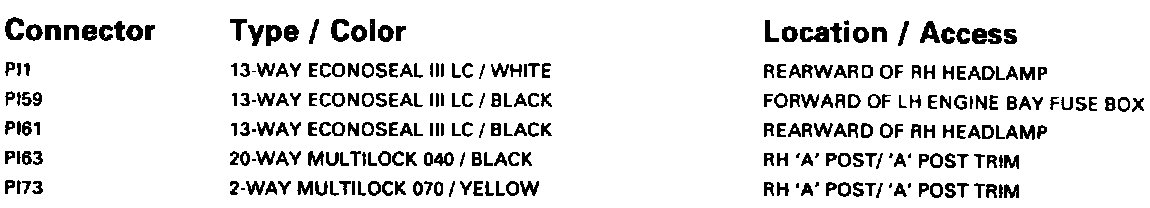

Federal Engine Management, Part 2: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

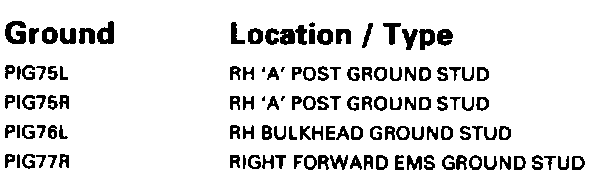

Federal Engine Management, Part 2: Grounds:

Ground Information

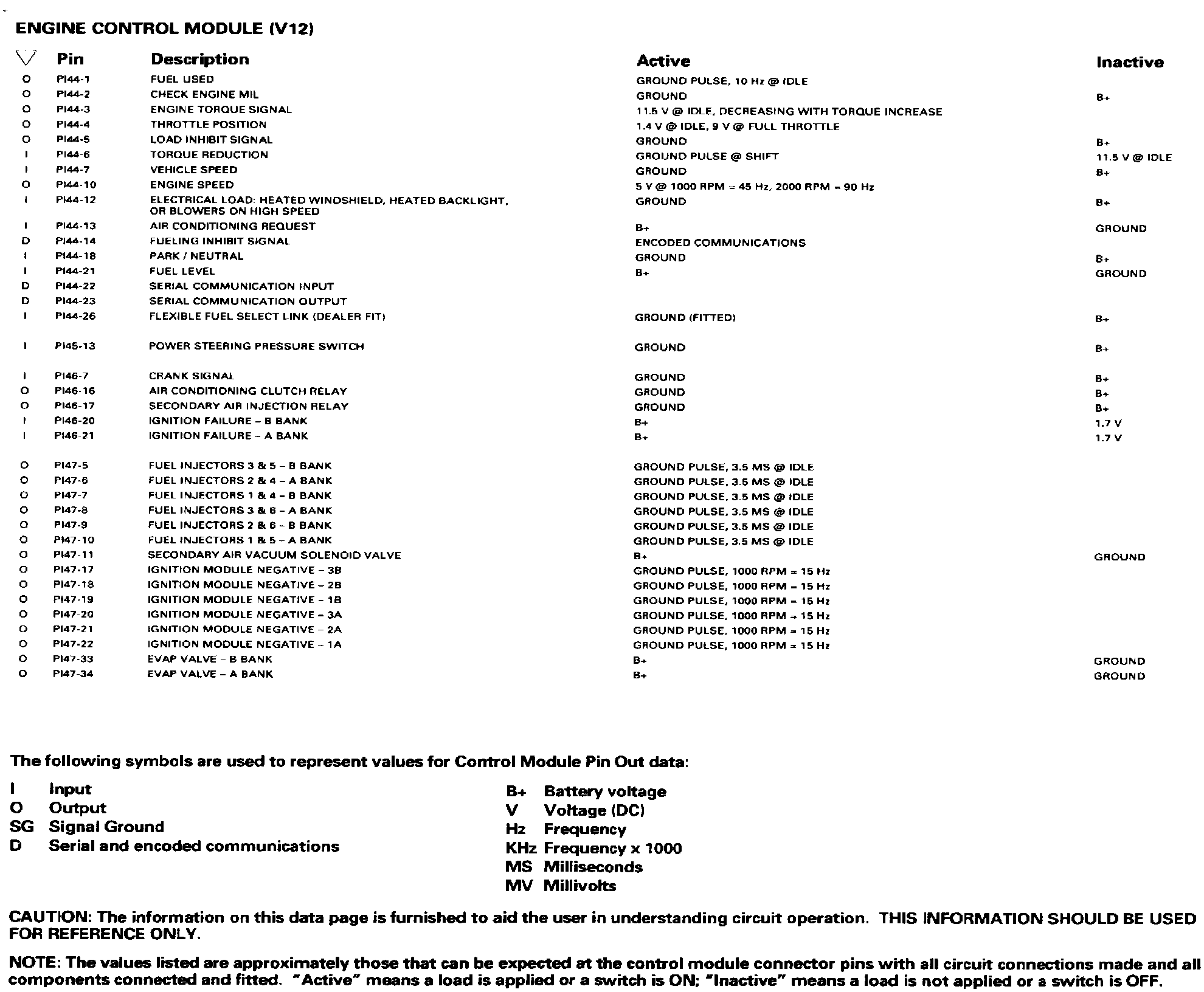

Federal Engine Management, Part 2: Control Module Pin Out Information:

Control Module Pin Out Informations
