Instrumentation: Normal Display

�:

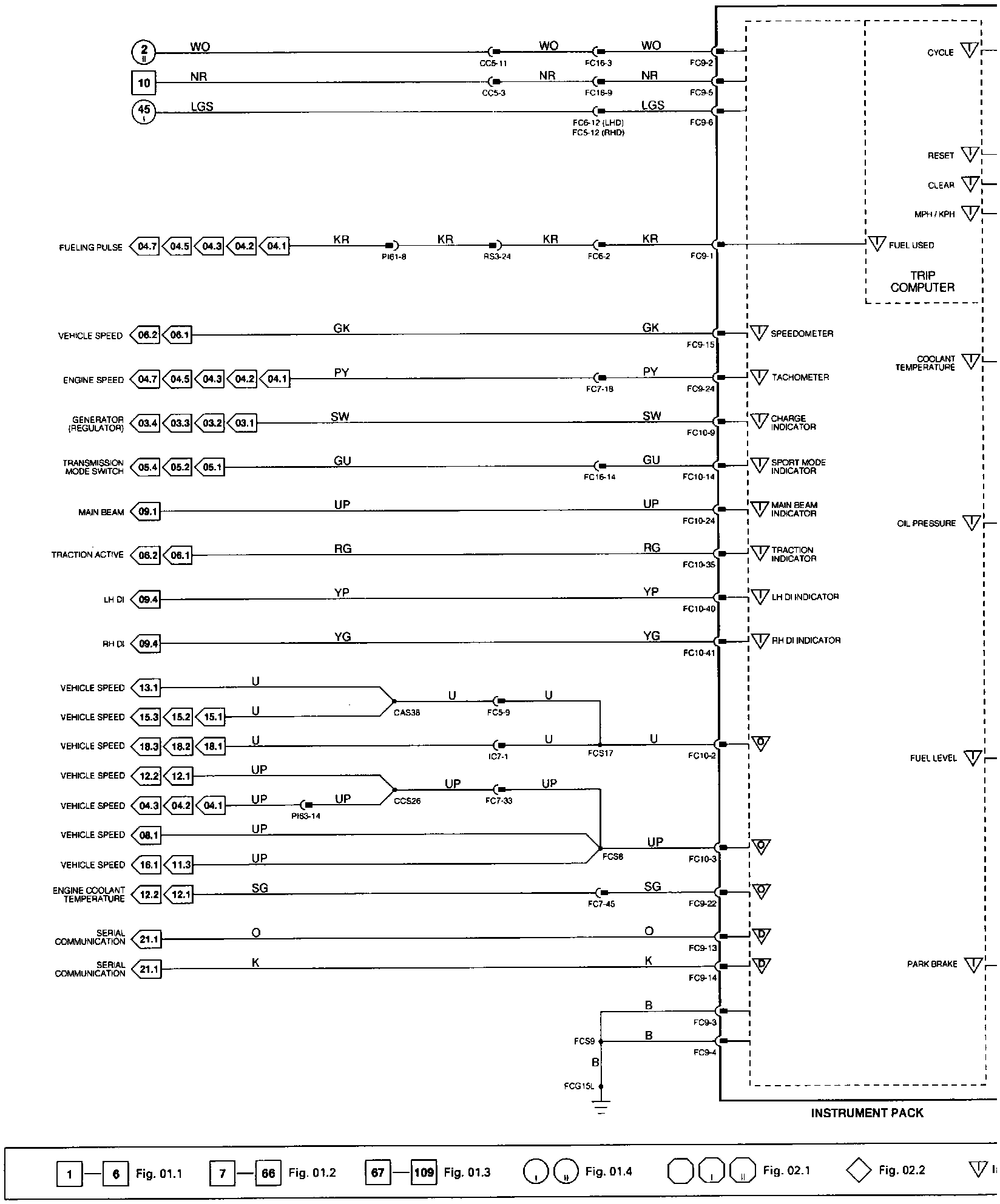

Wiring Diagram

Instrument Normal Display: Components:

Components Informations

Instrument Normal Display: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

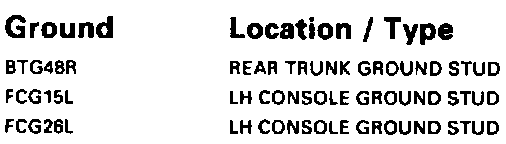

Instrument Normal Display: Grounds:

Grounds Informations

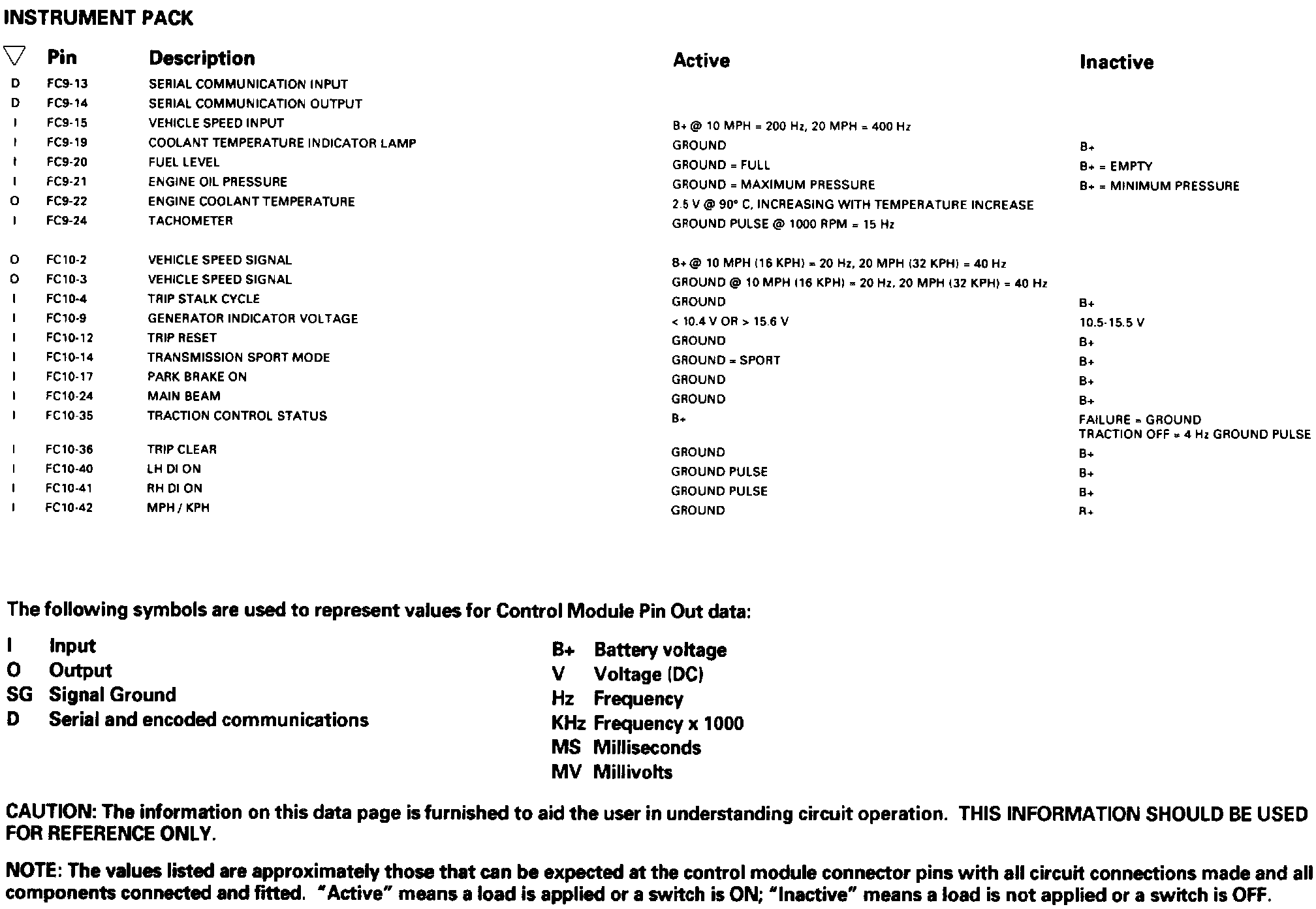

Instrument Normal Display: Control Module Pin Out Information:

Control Module Pin Out Informations


For the diagrams that continue from this diagram, refer to "Diagrams : Electrical : Diagrams By Fig Number"

Electrical Diagrams
