Front Suspension - Rattle
11-04DATE 12/95
Amended 9/96
Sedan Range
MODEL
1995-*96* MY
Sedan Range
VIN
720001-756474
Front Suspension Rattle - Brake Disc Shield - Install New Retaining Screws
Remove and destroy Bulletin 11-04, dated 12/95. Replace with this Bulletin. The model year has been revised and is indicated by asterisks.
ISSUE:
Some 1995 MY Sedan Range vehicles within the above VIN range may experience a noise from the front suspension area.
The noise is caused by loosening of the Torx screws that secure the brake disc shield and the water shield to the stub axle, allowing the shields to vibrate. New screws are now available to solve this complaint.
ACTION:
In case of a customer complaint remove the hub assembly as described in Section 70.10.18 of the XJ6 - XJ12 Saloon Range Service Manual. Remove and discard the old screws. Install the new screws listed in the Parts Information and torque to 7.4 - 8.8 lb. ft. (10-12 Nm.)
NOTE:
When the hub is removed, the seal must be replaced with a new one using Special Tool JD 179. The seal face that contacts the hub must be coated with a special lubricant (Shell Retinex LC). Thoroughly clean all traces of the previous lubricant from the hub.

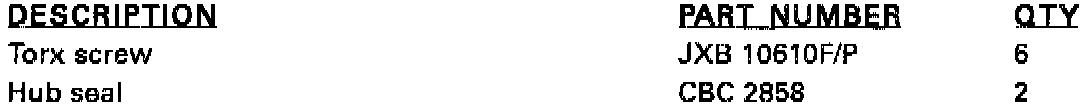

PARTS INFORMATION:

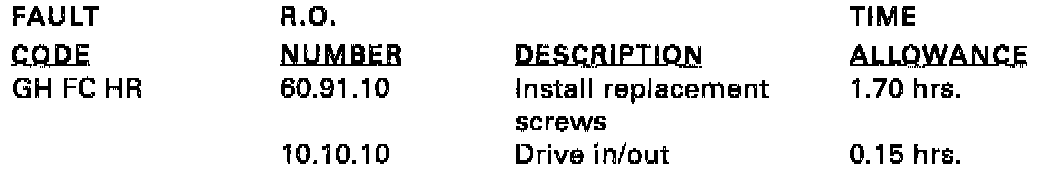

WARRANTY INFORMATION:
