Security System - Fault Diagnostic Guide
86-161Security System - Fault Diagnosis Guide
MODEL
Sedan Range 1995 MY-ON
VIN 720001-ON
DATE
10/95
ISSUE:
Additional fault tracing information for Sedan Range vehicle security system.
ACTION:
Refer to the possible symptom and cause information grouped by topic in this bulletin.
FAULT TRACING CONTENTS

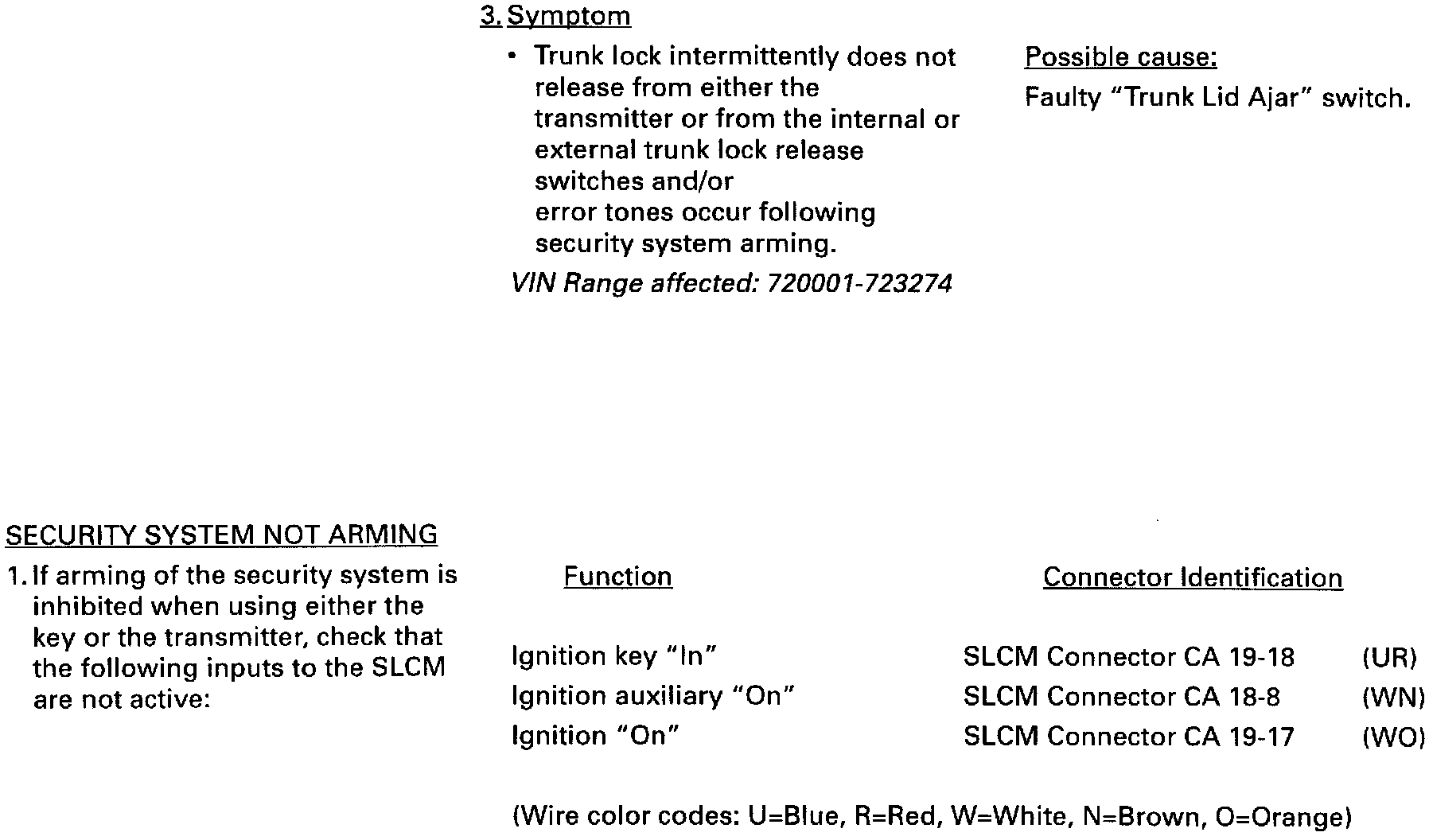

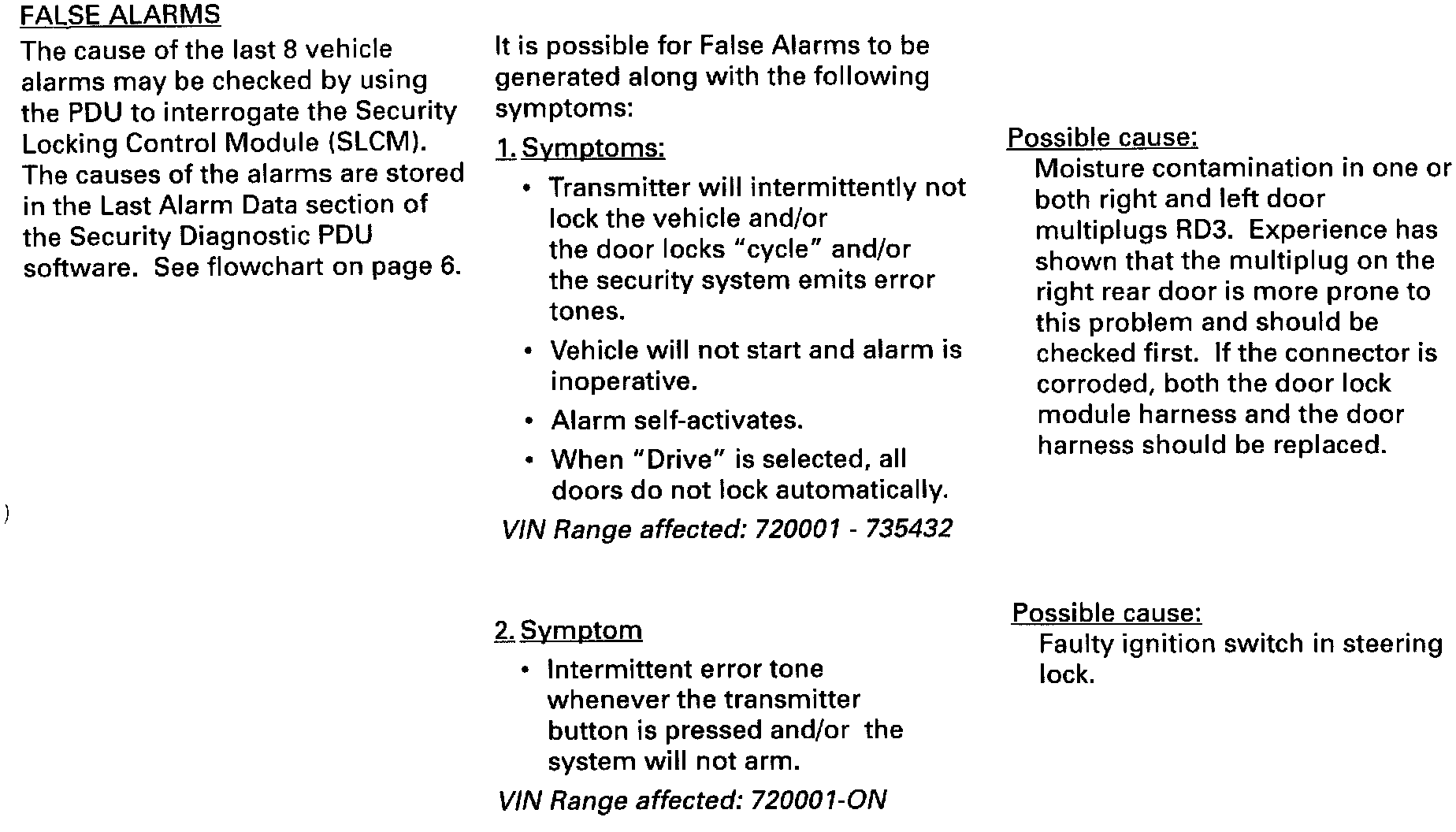

False Alarms Security System not arming

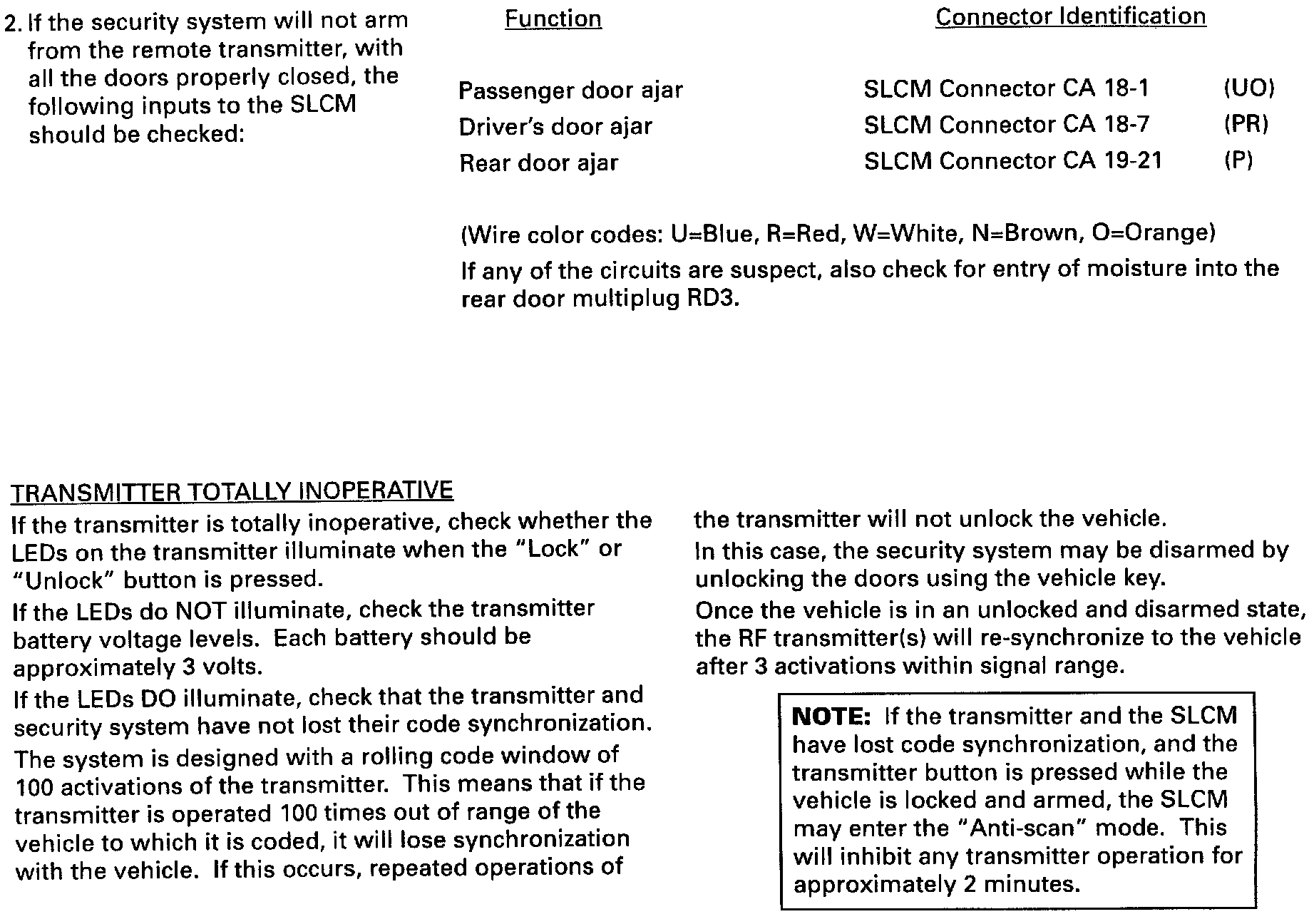

Transmitter totally inoperative

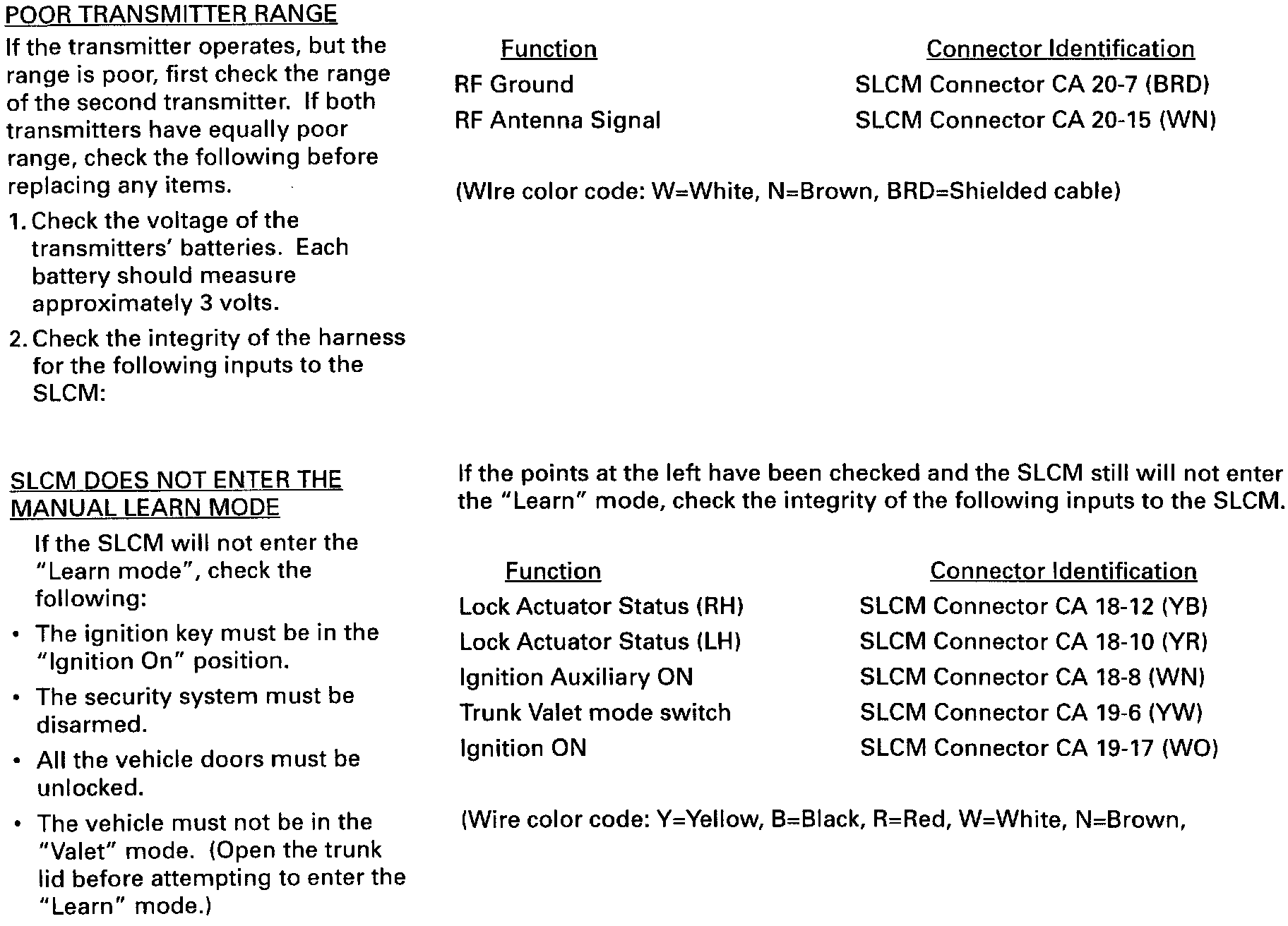

Poor transmitter range
SLCM does not enter Manual Learn mode
Checking the "Last Alarm" data using the PDU
CHECKING THE "LAST ALARM" DATA USING THE PORTABLE DIAGNOSTIC UNIT
PARTS INFORMATION:
Any parts determined necessary as a result of tracing a fault in the Security system should be ordered as necessary from Jaguar Parts.
WARRANTY INFORMATION:
Warranty claims must be submitted in accordance with the current published Jaguar Warranty Policy and Procedures Manual, and Amendments.
