Checking Rear Sub Frame Bushings

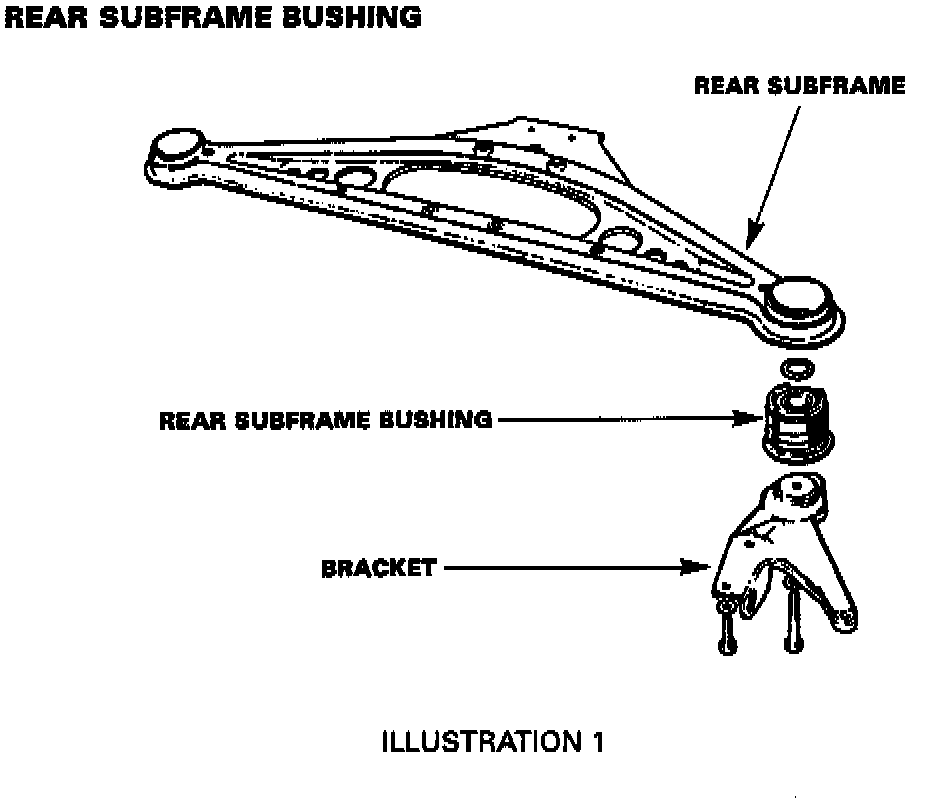

Inspect the bushings in the mounting bracket and the subframe assembly (Illustration 1) for damage and distortion by checking that equal clearance exists at the top and at the bottom of the bushing.

A lack of clearance could indicate that the bushing has collapsed on the bump stop. Replace any damaged bushings and road test the vehicle before attempting further diagnosis.
