Vehicle - Vibration Diagnostic Routines: Overview
09-01DATE
4/96
Sedan Range
MODEL
1995 MY-ON
Sedan Range
VIN
720001 - ON
Vehicle Vibration - Diagnosis
ISSUE:
Customer complaints of vibration on 1995 MY-ON Sedan Range vehicles within the VIN range. This Technical Bulletin provides a guide to the diagnosis and repair of vibration problems.
ACTION:
In case of a customer complaint of vehicle vibration on 1995 MY-ON Sedan Range vehicles within the VIN range, perform the following steps:
1. Obtain a copy of the Vibration Report Form S-95 from the parts department. Enter the VIN on the form.
2. Enter the customer's description of the condition on the back of the Vibration Report Form, S-95.
3. Perform a road test. After the road test, enter the results in the Road Test section on the back of the Report Form.
NOTE:
The vehicle must be road tested to verify the customer complaint, to determine the type of vibration and when it occurs. The road test results must be recorded on the S-95 report form. Fax the S-95 form to:
Product Investigation Department (201) 818-9763.
4. Perform a static inspection of the vehicle and enter the findings on the front of the report form. Inspect the wheels and tires for damage or excessive wear. Check the vehicle attitude. Repair, or replace as necessary, any defective components found.
5. If static inspection shows no faults, refer to the Vibration Diagnosis Chart on to determine repair.

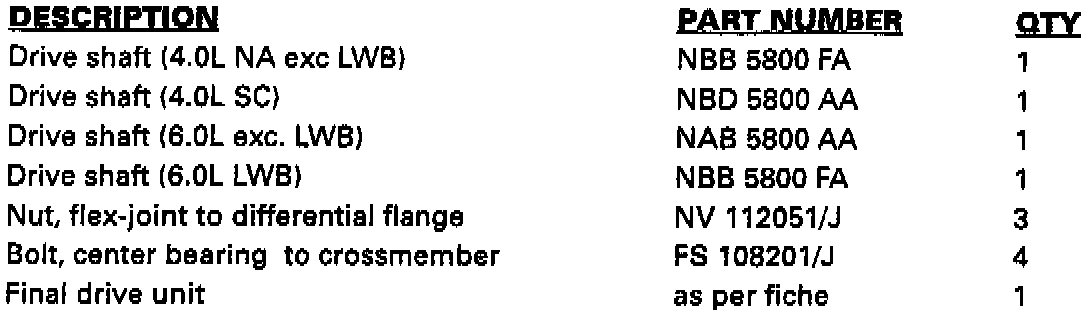

PARTS INFORMATION:
WARRANTY INFORMATION:
