Static Inspection

After confirming the customer complaint of vibration on the road test, check the following areas:

a. Driveline/suspension fasteners and bushings.

b. Transmission crossmember and transmission mount.

c. Exhaust mounts and clearances.

d. Vehicle attitude, which is measured vertically from the ground to the wheel opening lip, through the center line of the wheel. If rear of vehicle is low, refer to Technical Bulletin 64-16 dated 10/95.

e. Alignment of paint spots on the final drive yoke and the drive shaft.

f. Wheels and tires.

NOTE:
Record the date code found on the tire side wall, for example, "DOT 275" (week 27, 1995).

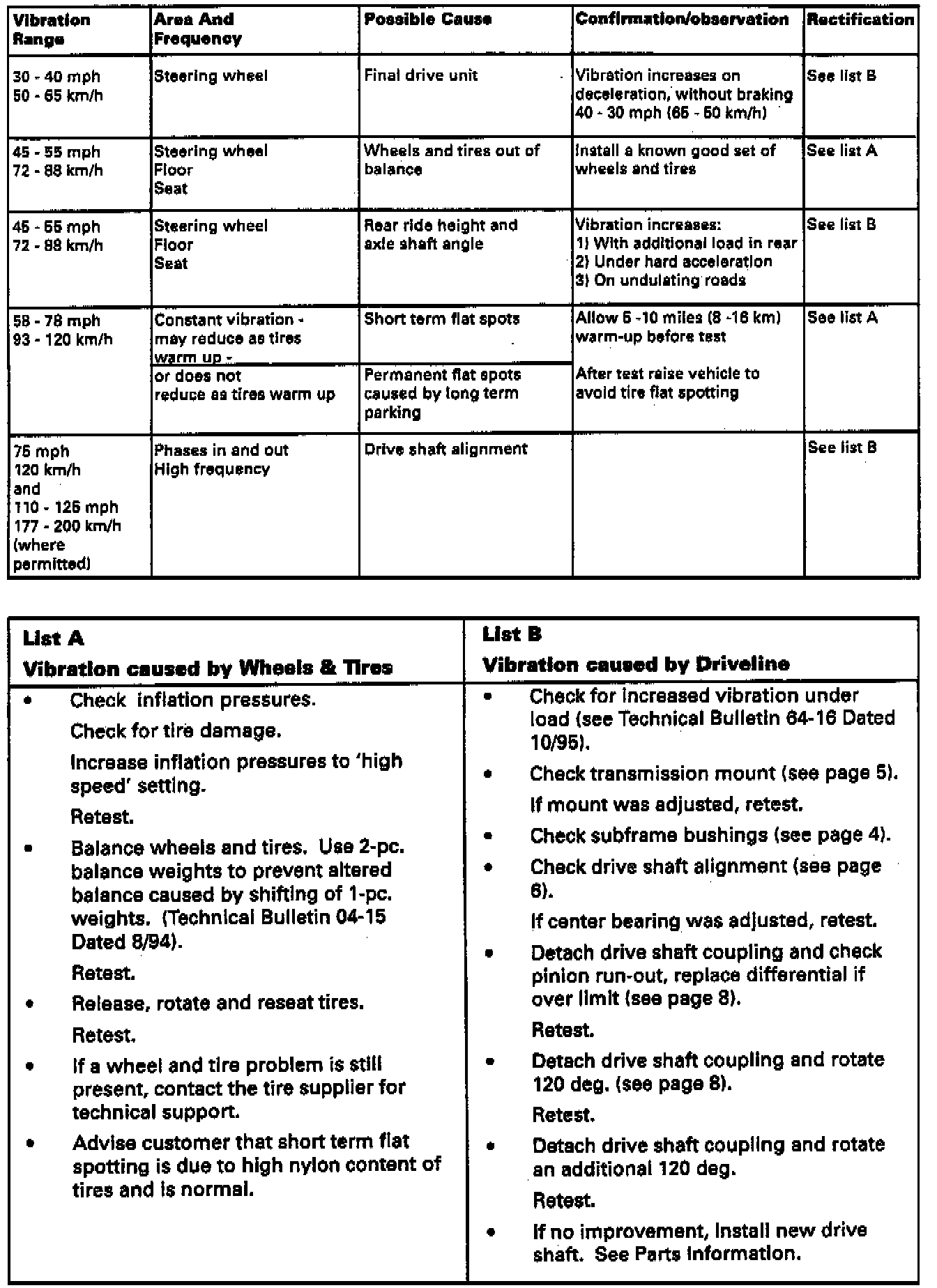

SEDAN RANGE 1995 MY-ON VIBRATION DIAGNOSIS
