Wheel Alignment - Specifications
11-01DATE: 1/96
Sedan Range
Suspension - Alignment Specifications
MODEL
1995-96 MY
Sedan Range
VIN
720001-ON
ISSUE:
Current alignment specifications for 1995 MY ON Sedan Range vehicles.
ACTION:
Use the following specifications when performing 4-wheel alignment.
IMPORTANT:
^ Adjust the tire pressures to the "Comfort Settings" found on the vehicle data plate.
^ Ensure that the vehicle setting height is within specification.
^ Install the correct mid-laden tools. Adjust the front tools to the correct setting height.
^ When measuring caster, use the vehicle steering wheel to turn the road wheels to the left and right.
^ Center and lock the steering rack with the correct centering pin to measure and adjust toe.
^ Record the "before" and "after" tire pressures and alignment data on the repair order.
SEDAN RANGE - ALIGNMENT SPECIFICATIONS 1995-96 MY
NOTE:
Install the correct mid-laden tools. Adjust the front suspension tools to the correct setting height.

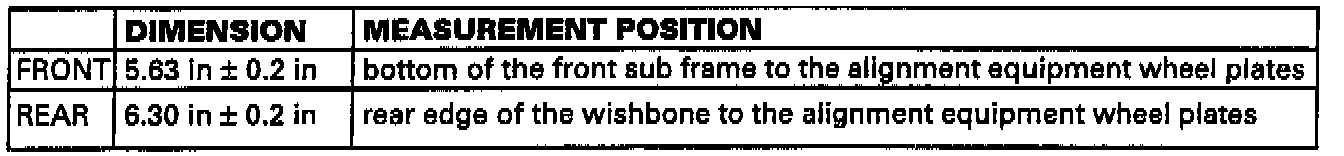

Vehicle Setting Height - Sedan (4.0L) Range From VIN 720001

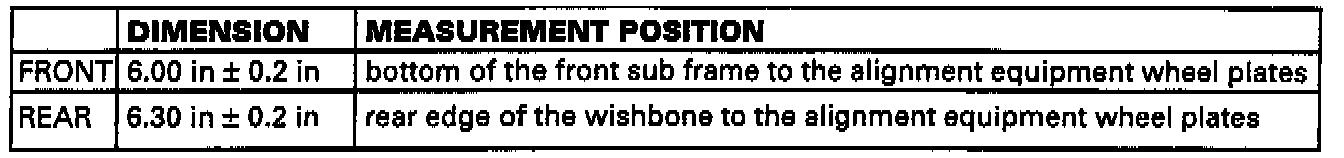

Vehicle Setting Height - XJ12 Sedan From VIN 720001
Vehicle Setting Height - Sedan Range From VIN 720001
WARRANTY POLICY:
Wheel alignment is covered under the Jaguar New Car Warranty for a period of 12 months or 12,500 miles, whichever comes first, from first retail sale.
Wheel alignments may not be performed under warranty without a customer complaint.
"Before" and "after" settings must be recorded and kept with the repair order in the vehicle file.
