Rear Seat

- Remove the two fixings from the front of the cushion.
- Move cushion forward to disengage the two lugs at the rear and to provide access to the multi-plug of the cushion heater element.
- Disconnect the multi-plug and remove the cushion.
- Remove the squab stowage box and the side bolster.
- Disconnect the rear seat link harness to seat harness multi-plug.
- Remove the the two fixings from the sqab attachment bracket.

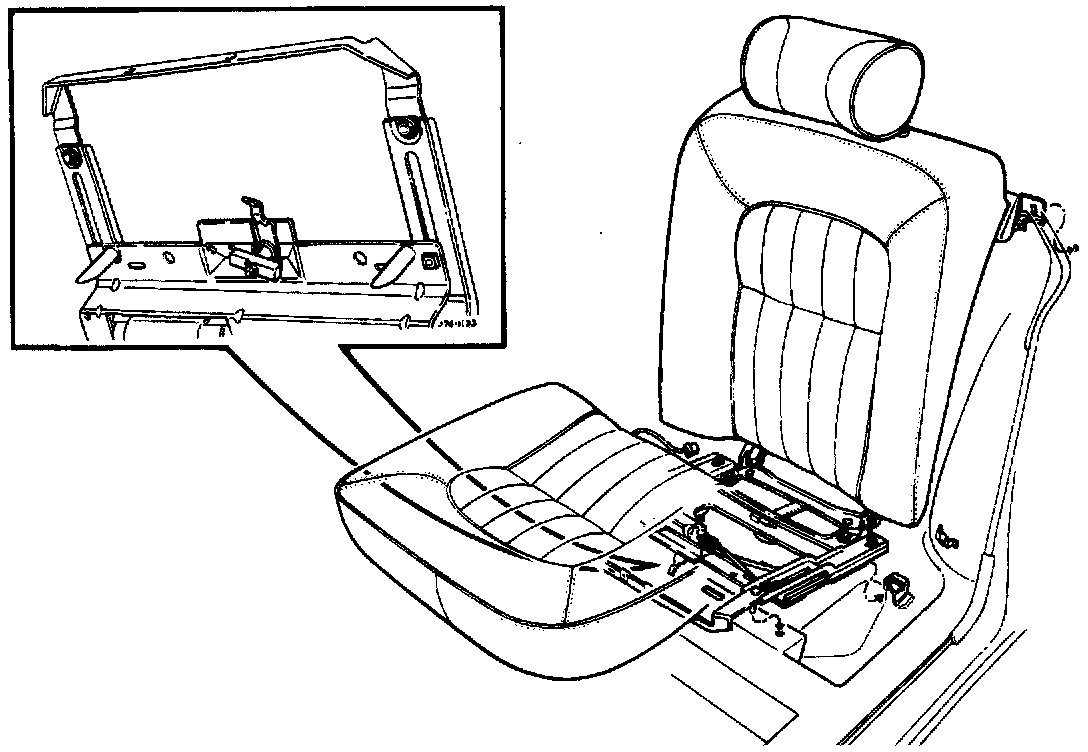

- Move the lever of the locking cam to the unlocked position and raise the front edge of the the cushion frame until the two dowels are clear of their locating holes.
- Move the seat forward, disengage the two lugs and remove the seat.

Refit in the reverse order of the removal procedure.
