Cellular Phone

���In-Car Entertainment; Telephone:

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

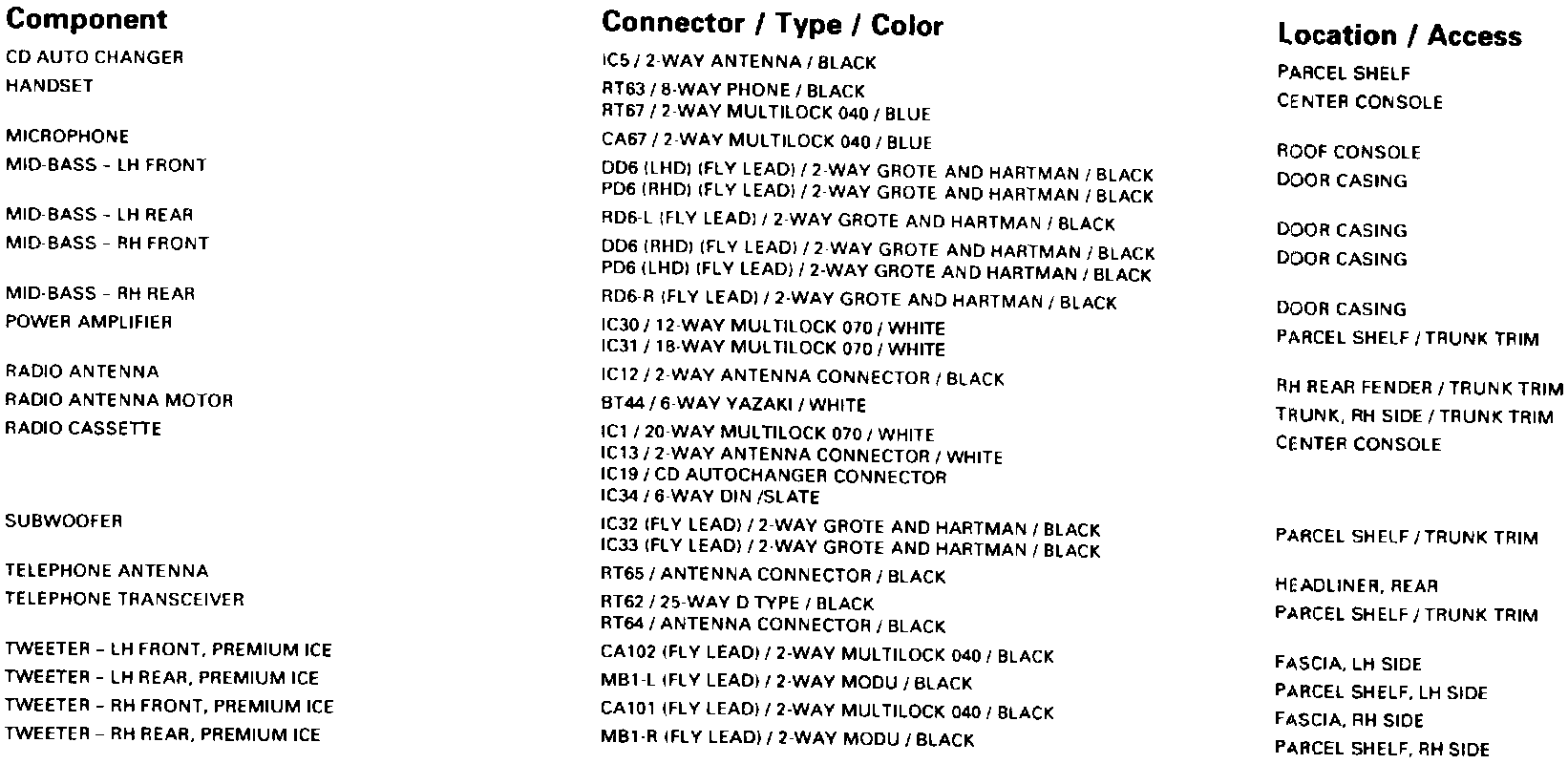

In-Car Entertainment; Telephone-NAS: Components:

Component Information

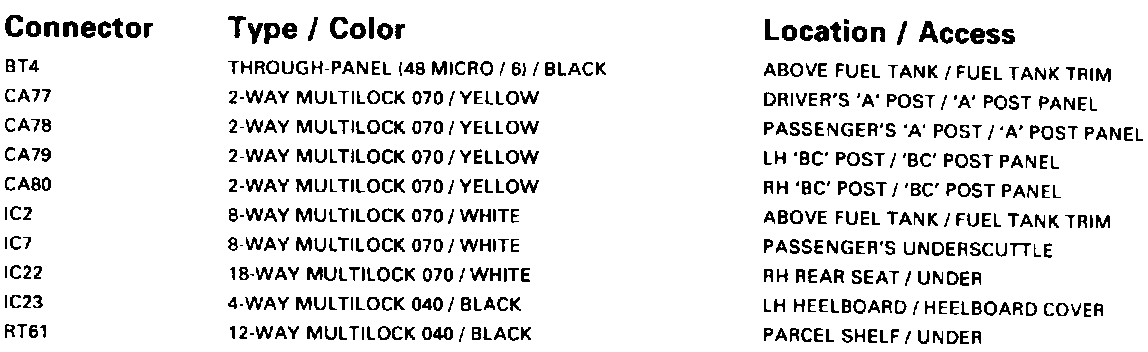

In-Car Entertainment; Telephone-NAS: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

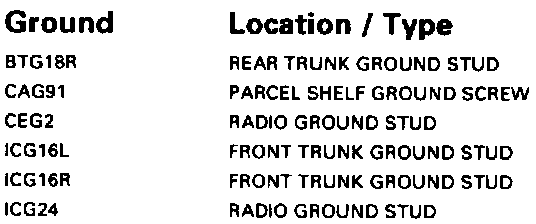

In-Car Entertainment; Telephone-NAS: Grounds:

Ground Information

In-Car Entertainment; Telephone-NAS: Control Module Pin Out Information:

Control Module Pin Out Informations
