Fig 121

z��Climate Control System, Part 1:

Wiring Diagram

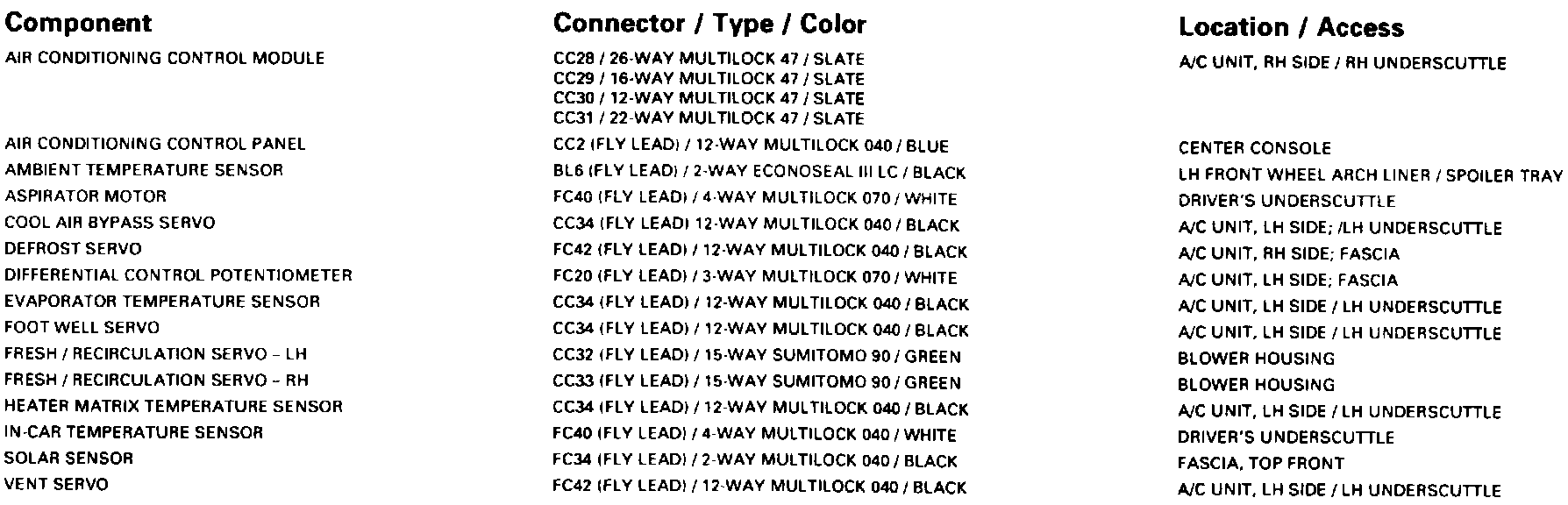

Climate Control System, Part 1: Components:

Components Informations

Climate Control System, Part 1: Relays:

Relays Informations

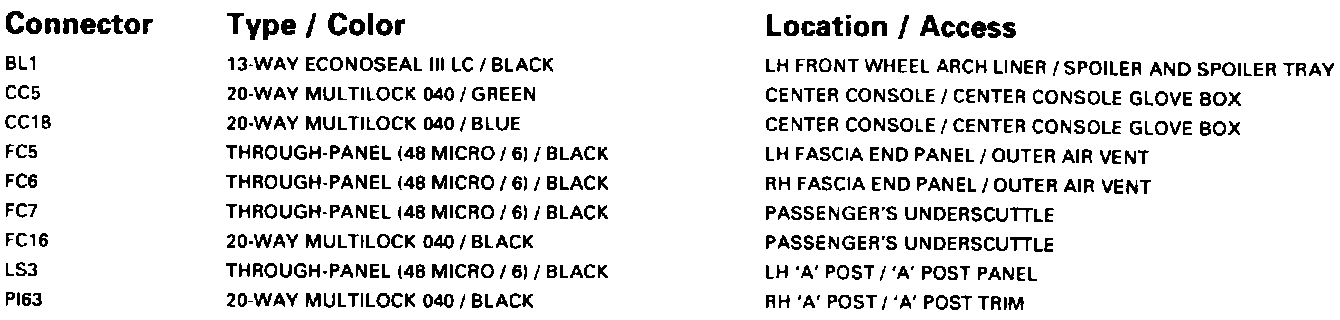

Climate Control System, Part 1: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

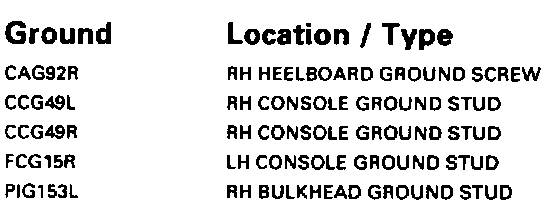

Climate Control System, Part 1: Grounds:

Grounds Informations

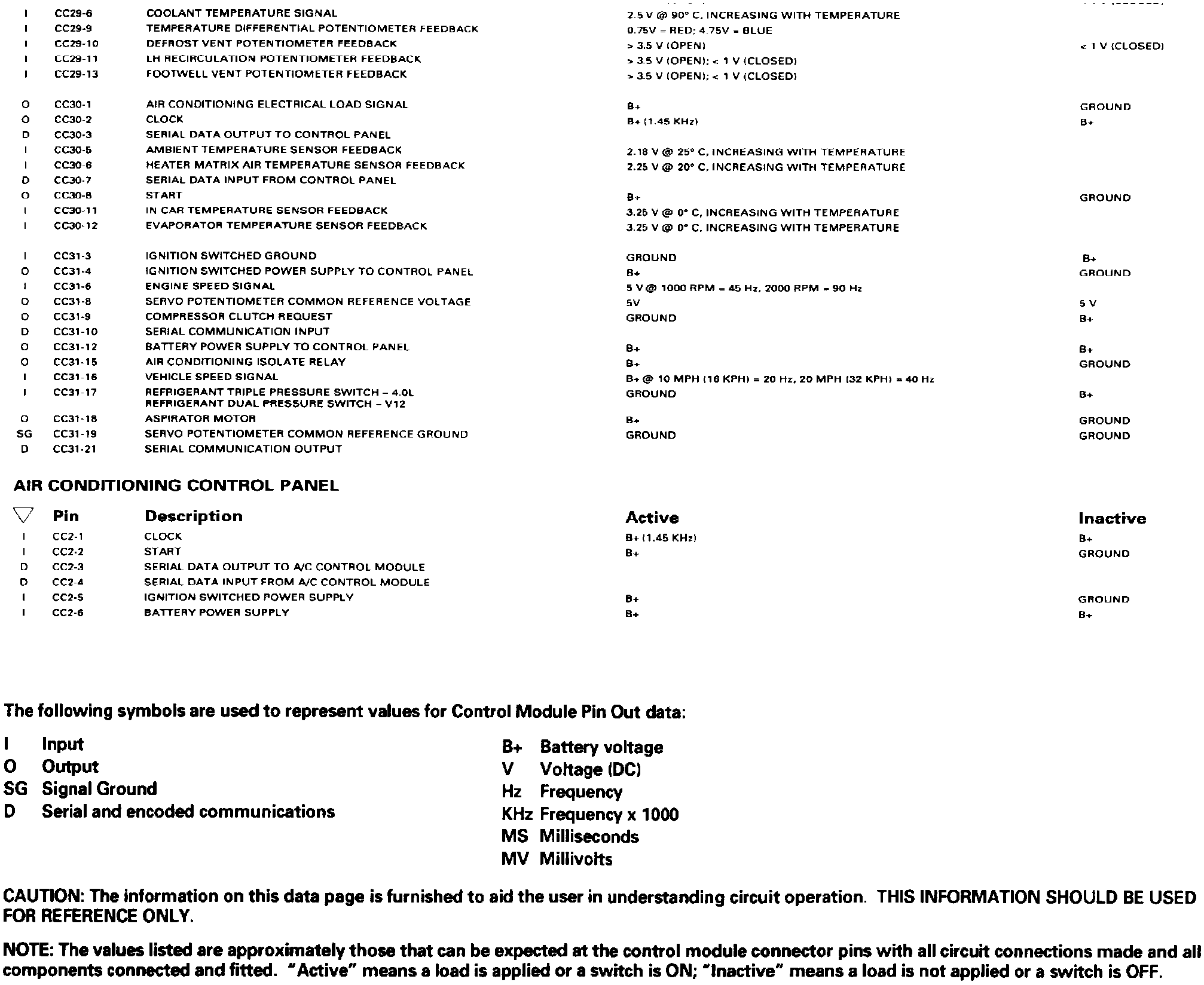

��Climate Control System, Part 1: Control Module Pin Out Information:

Control Module Pin Out Informations
