Fig 123
���Climate Control Systems, Part 2:
Wiring Diagram

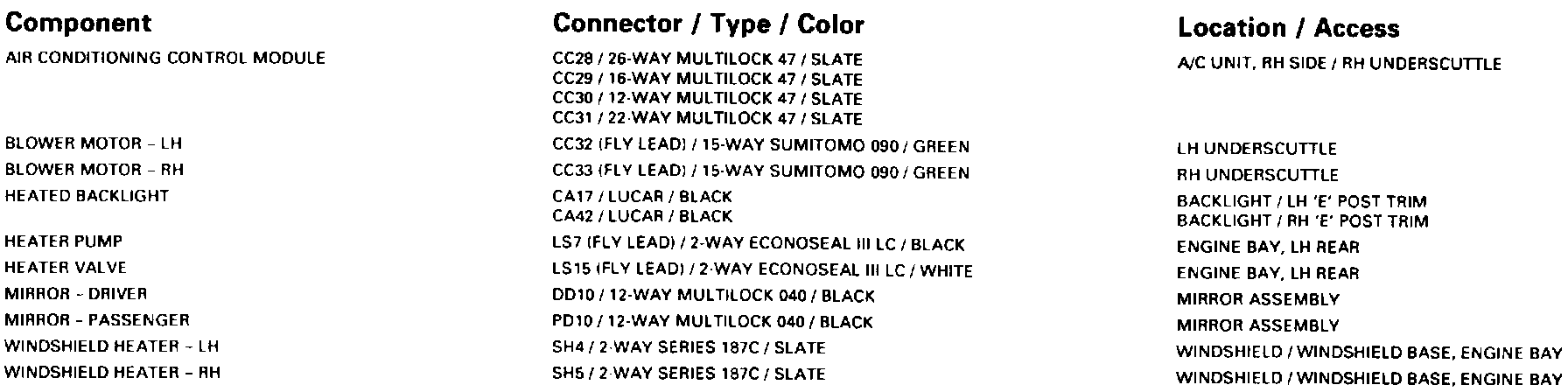

Climate Control Systems, Part 2: Components:
Components Informations
Climate Control Systems, Part 2: Relays:
Relays Informations

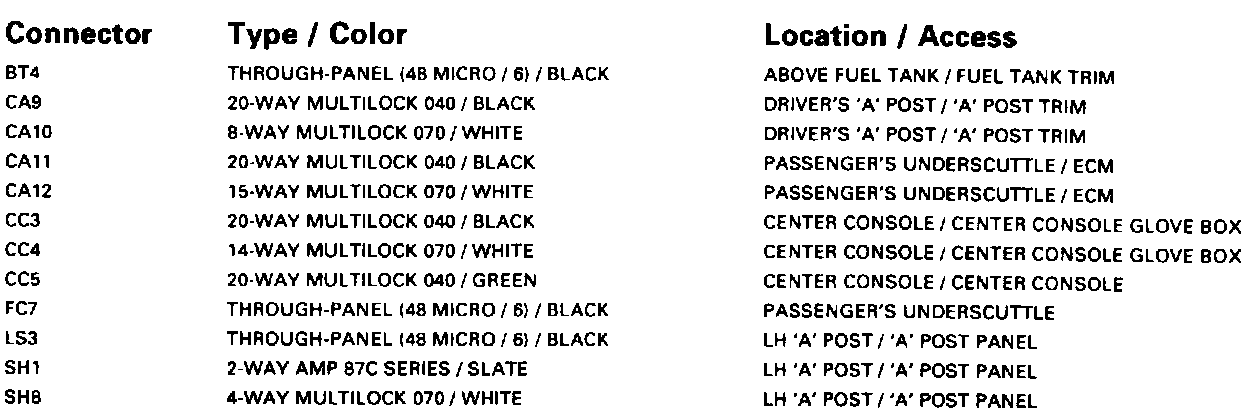

Climate Control Systems, Part 2: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations
Climate Control Systems, Part 2: Grounds:
Grounds Informations

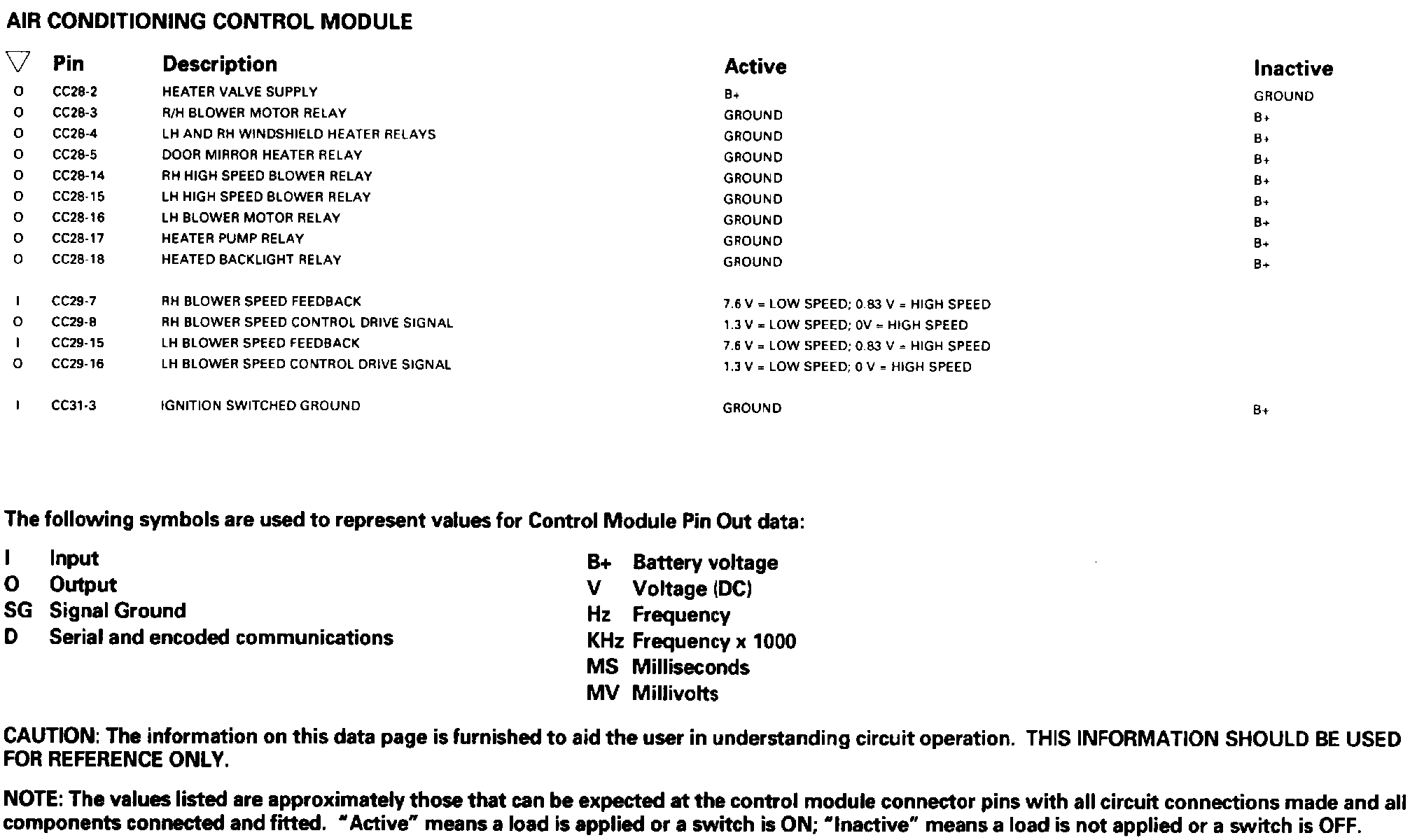

Climate Control Systems, Part 2: Control Module Pin Out Information:
Control Module Pin Out Informations
