Fig 1410
}�#Passenger Seat-Raise/Lower Only:

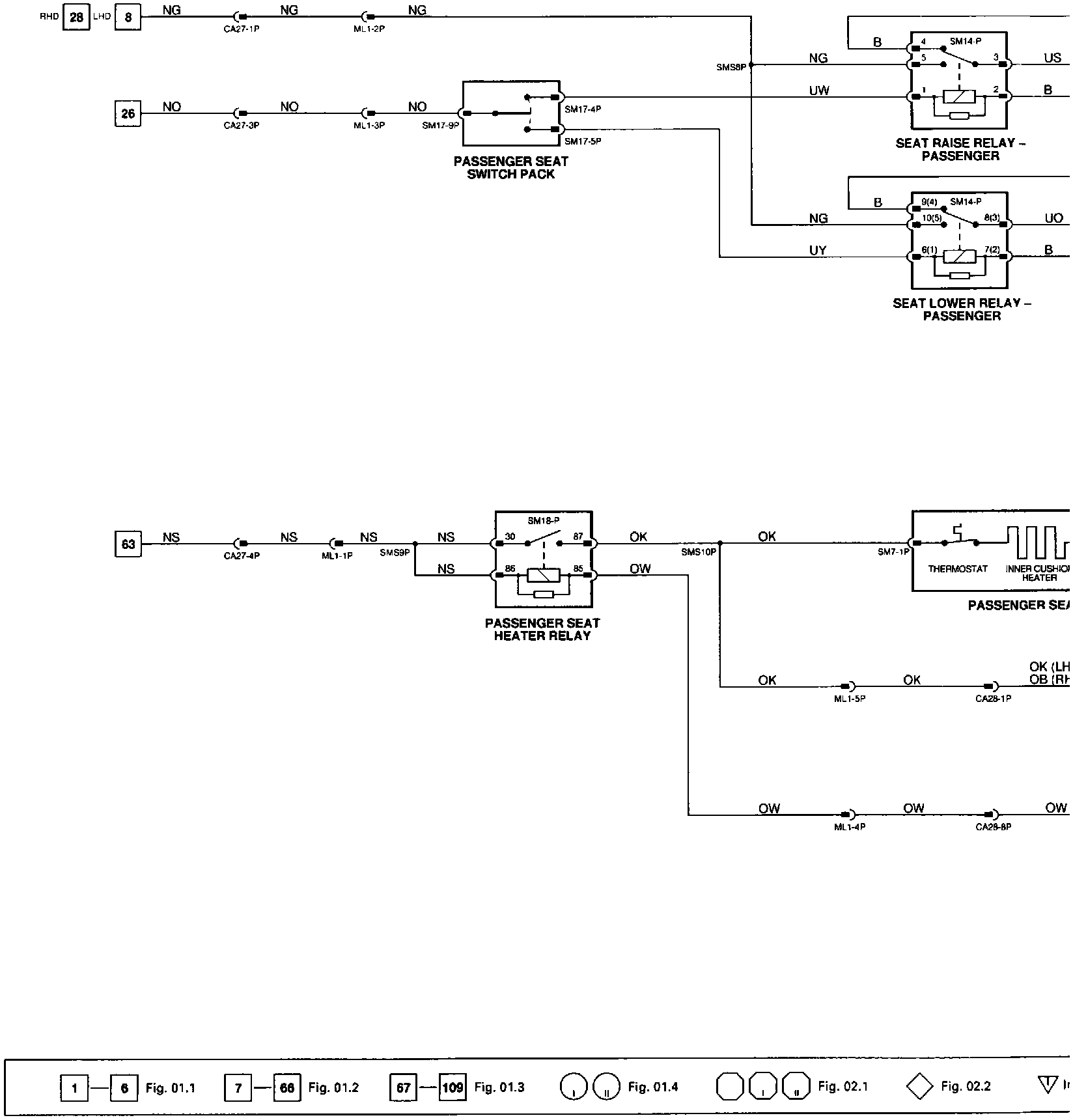

Wiring Diagram

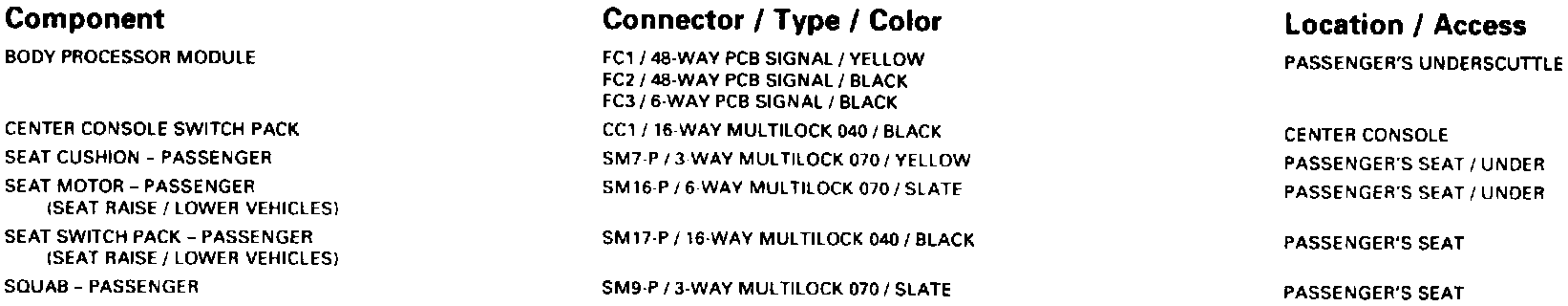

Passenger Seat-Raise/Lower Only: Components:
Components Informations

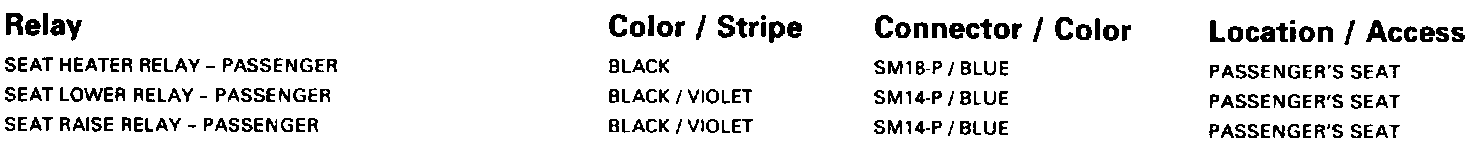

Passenger Seat-Raise/Lower Only: Relays:
Relays Informations

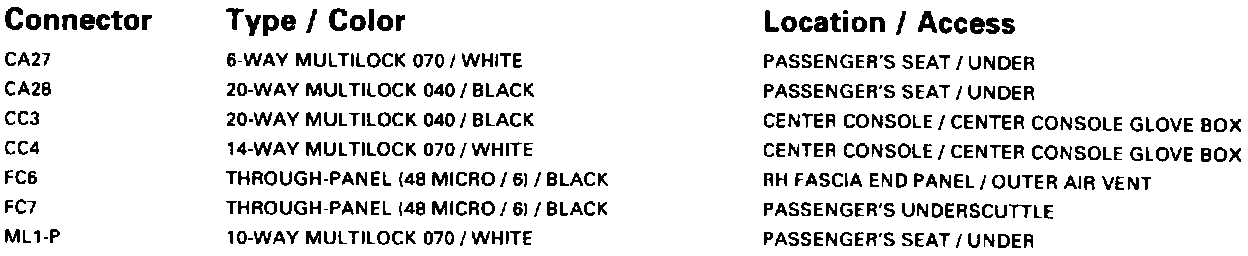

Passenger Seat-Raise/Lower Only: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations

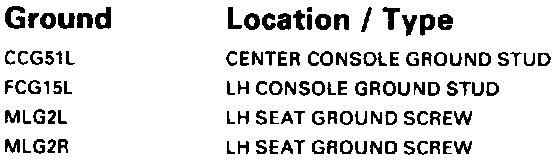

Passenger Seat-Raise/Lower Only: Grounds:
Grounds Informations

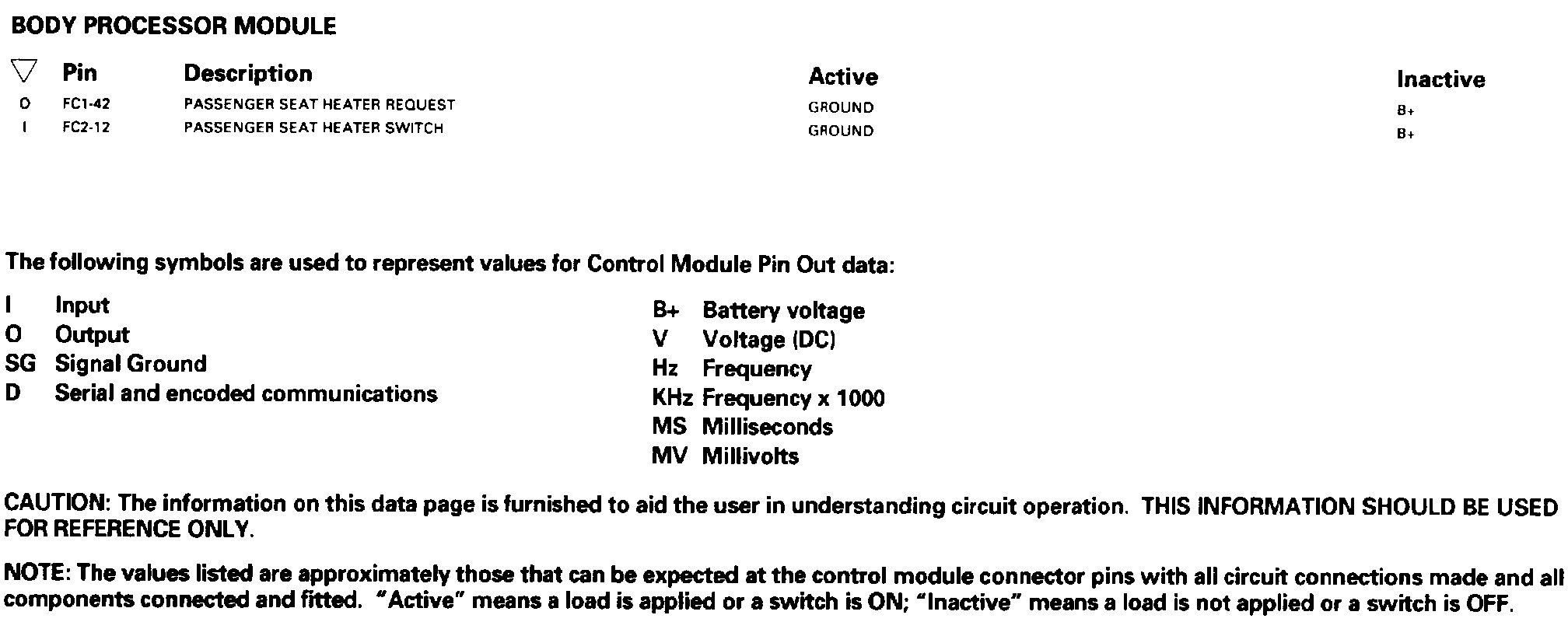

Passenger Seat-Raise/Lower Only: Control Module Module Pin Out Information:
Control Module Pin Out Informations
