Fig 1411

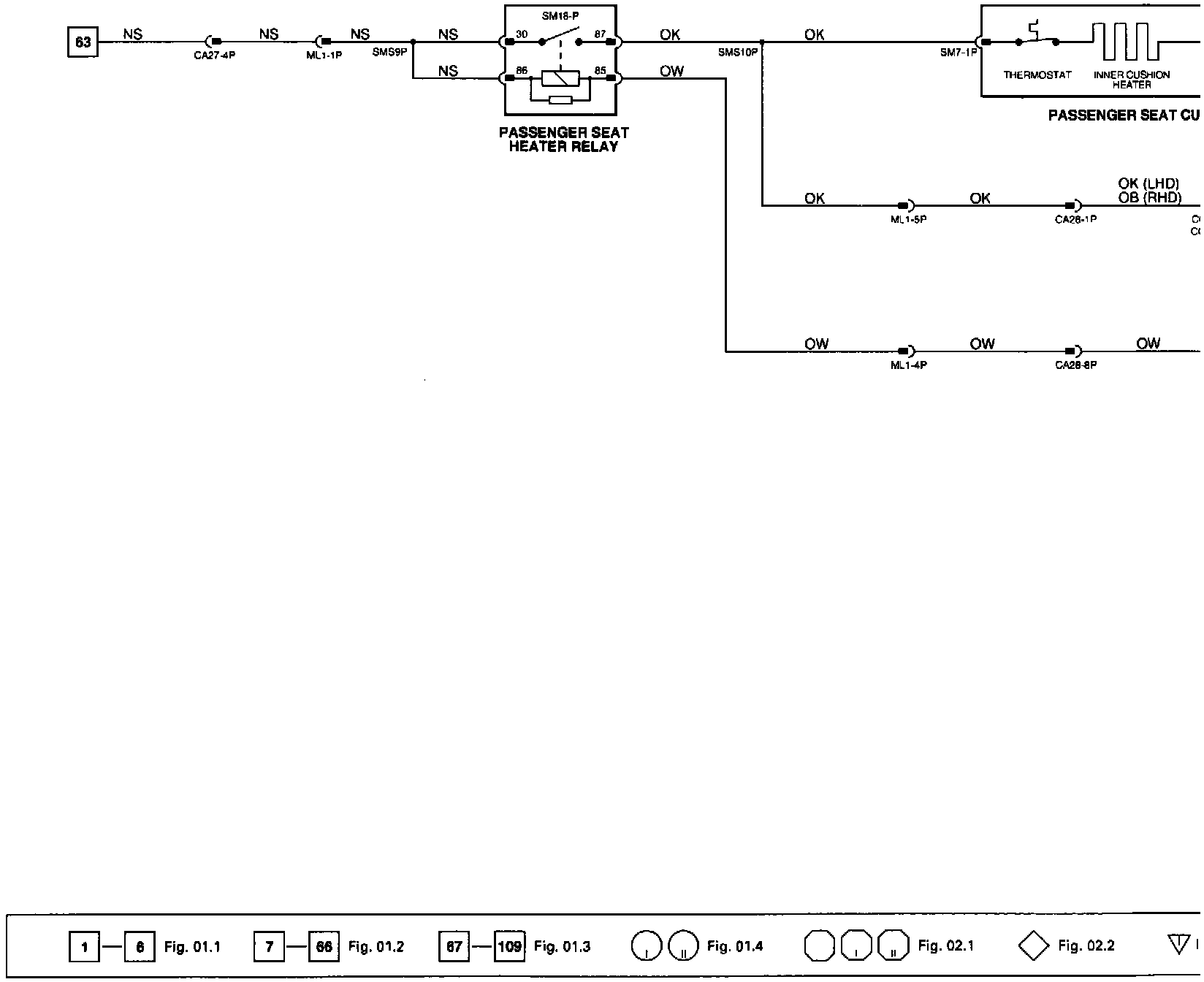

�T"Passenger Seat-Manual (Heater Only):
Wiring Diagram
Passenger Seat-Manual (Heater Only): Components:
Components Informations
Passenger Seat-Manual (Heater Only): Relays:
Relays Informations

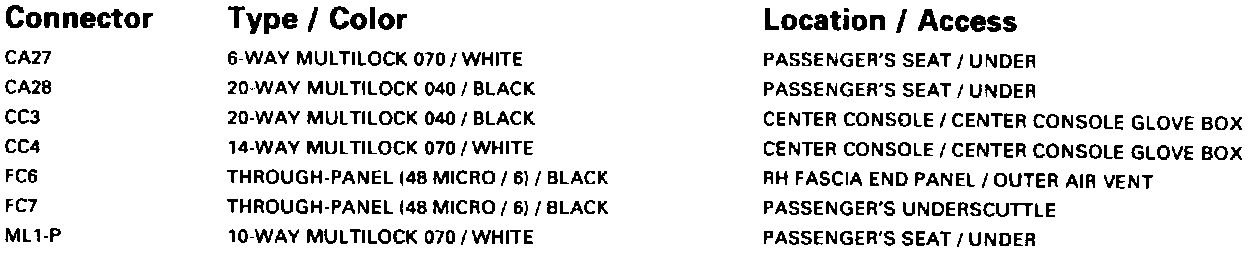

Passenger Seat-Manual (Heater Only): Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations

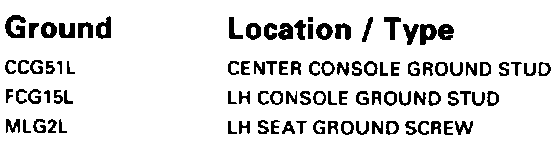

Passenger Seat-Manual (Heater Only): Grounds:
Grounds Informations

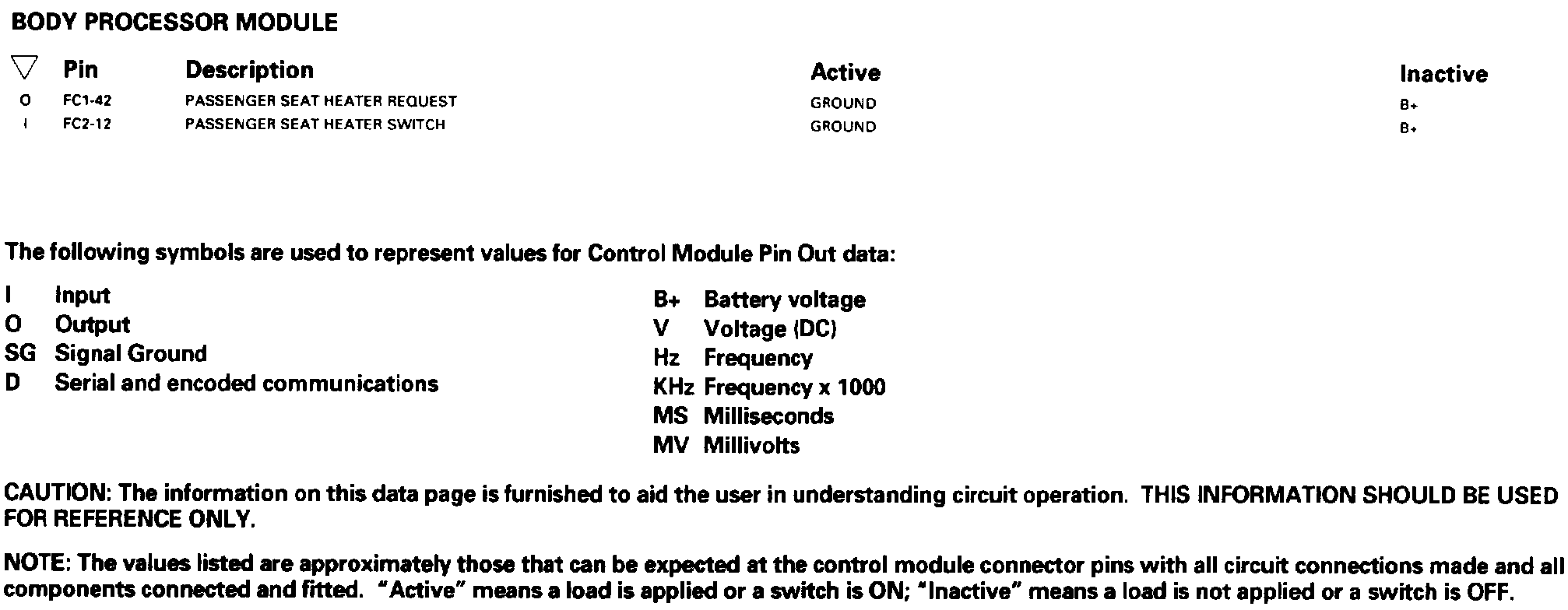

Passenger Seat-Manual (Heater Only): Control Module Pin Out Information:
Control Module Pin Out Informations
