Fig 142
5�"Driver Seat-Memory, NAS:

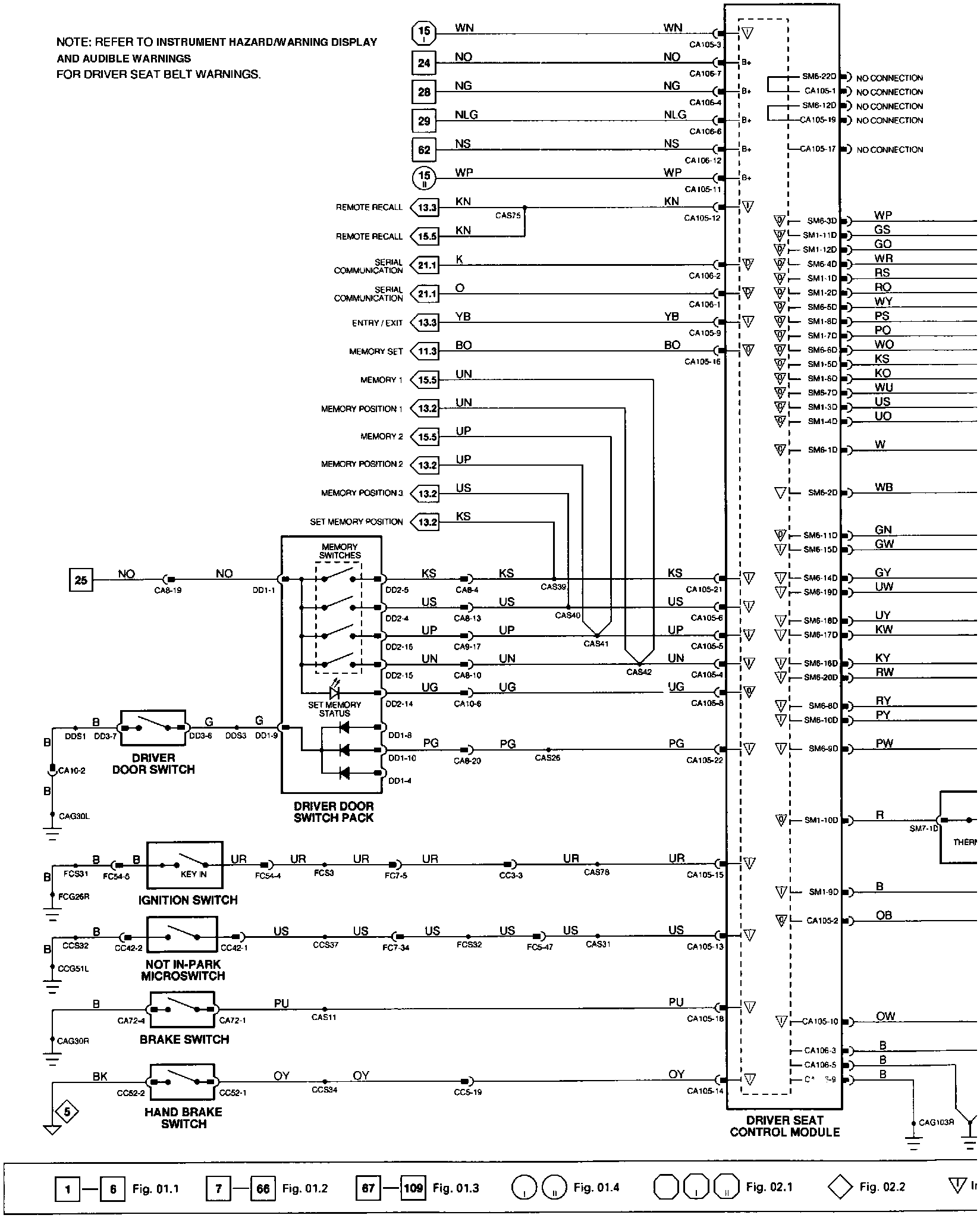

Wiring Diagram

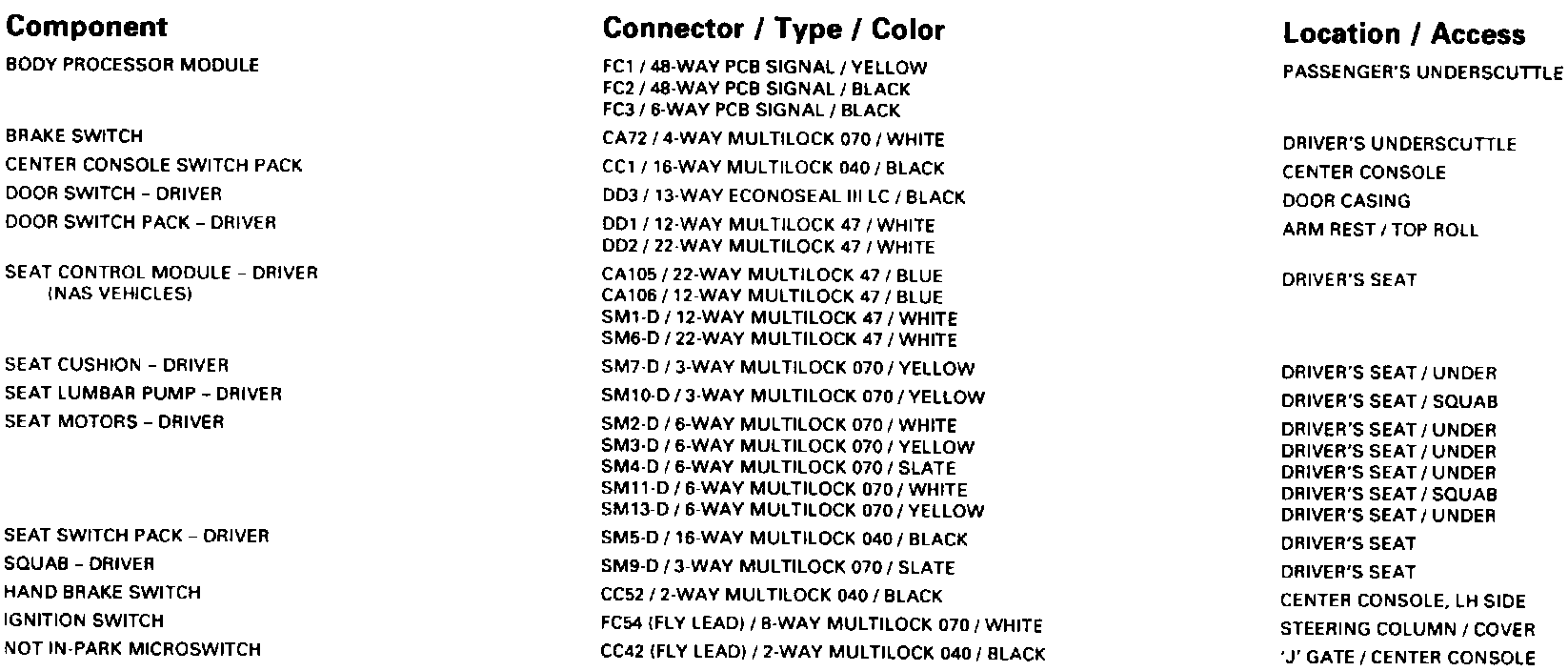

Driver Seat-Memory, NAS: Components:
Components Informations

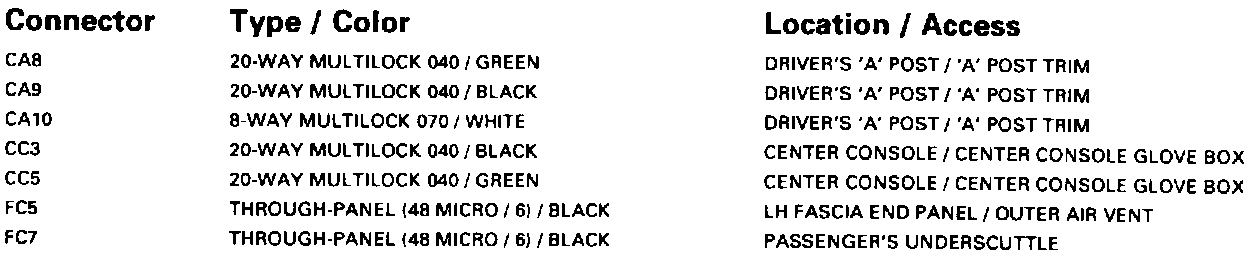

Driver Seat-Memory, NAS: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations

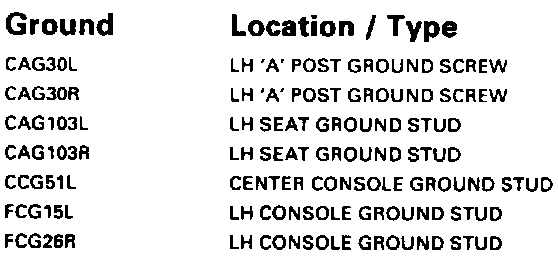

Driver Seat-Memory, NAS: Grounds:
Grounds Informations

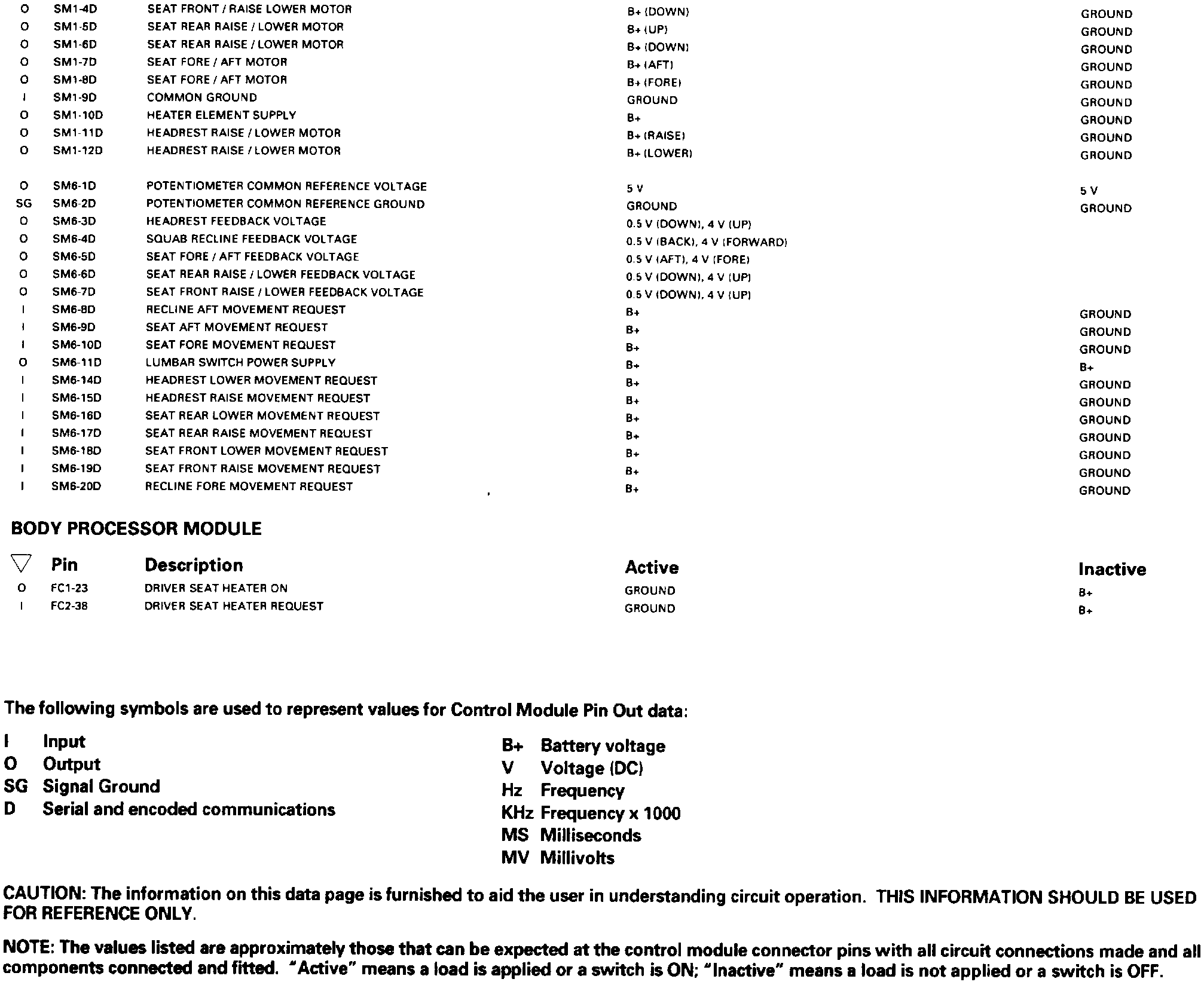

���"Driver Seat-Memory, NAS: Control Module Pin Out Information:
Control Module Pin Out Informations
