Fig 143

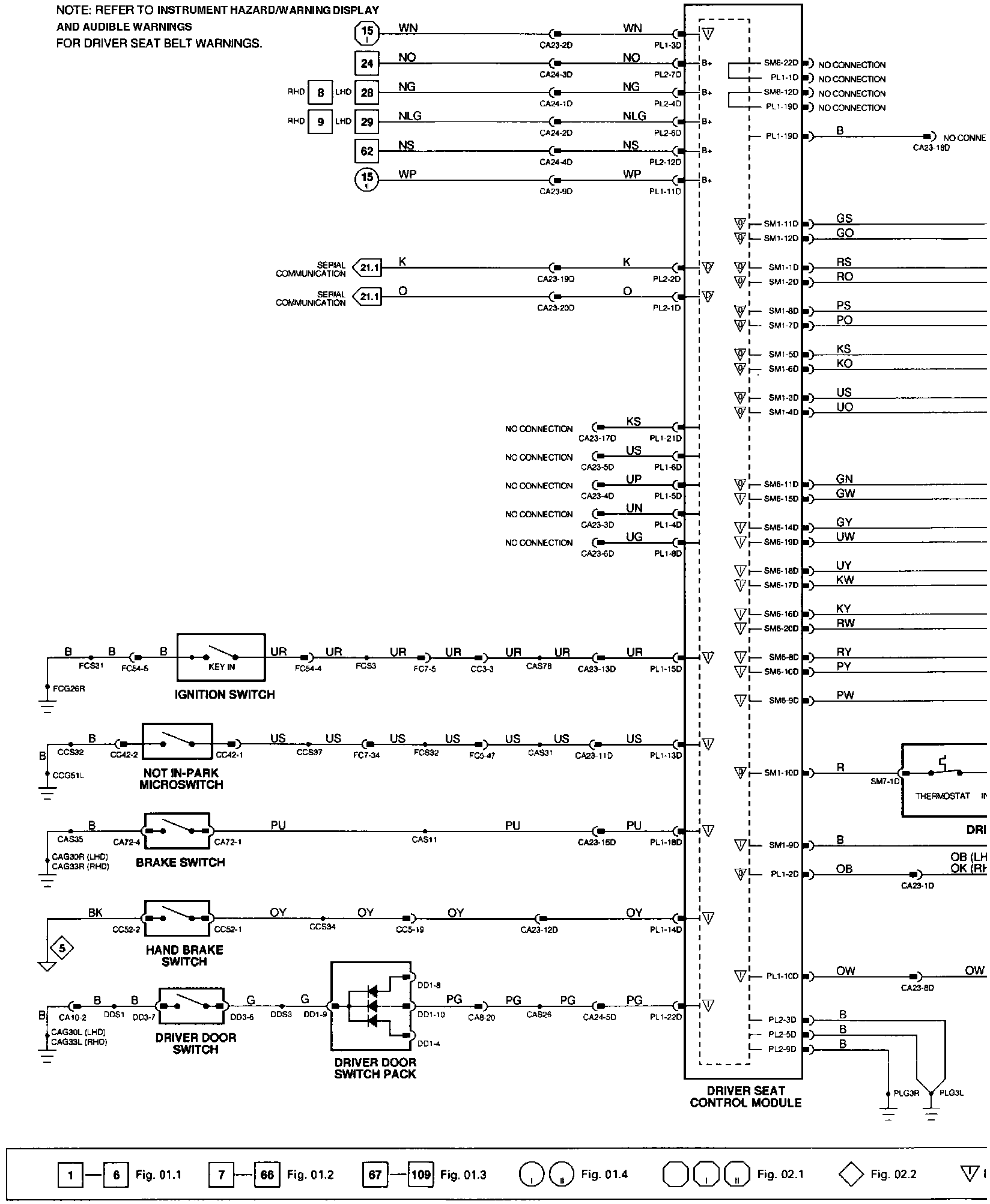

��"Driver Seat-Non-Memory:
Wiring Diagram

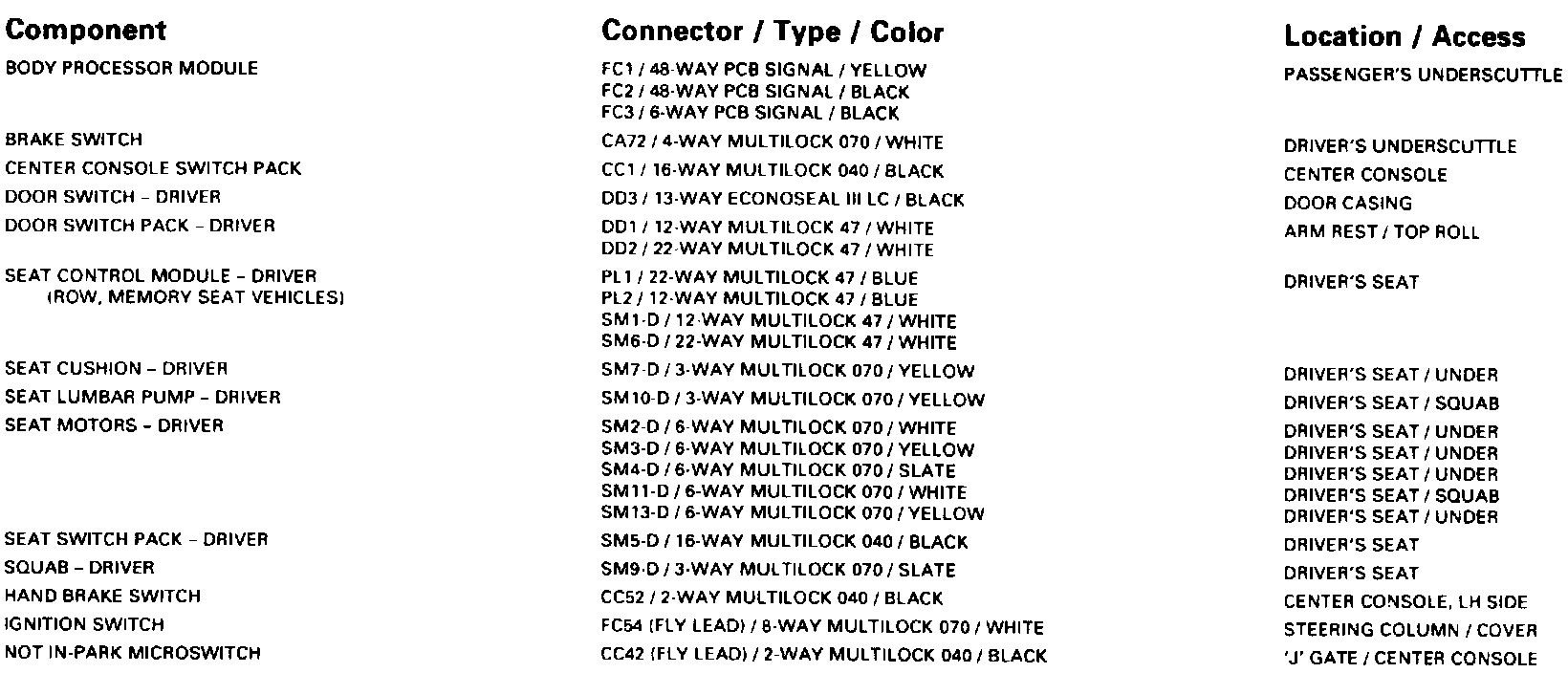

Driver Seat-Non-Memory: Components:
Components Informations

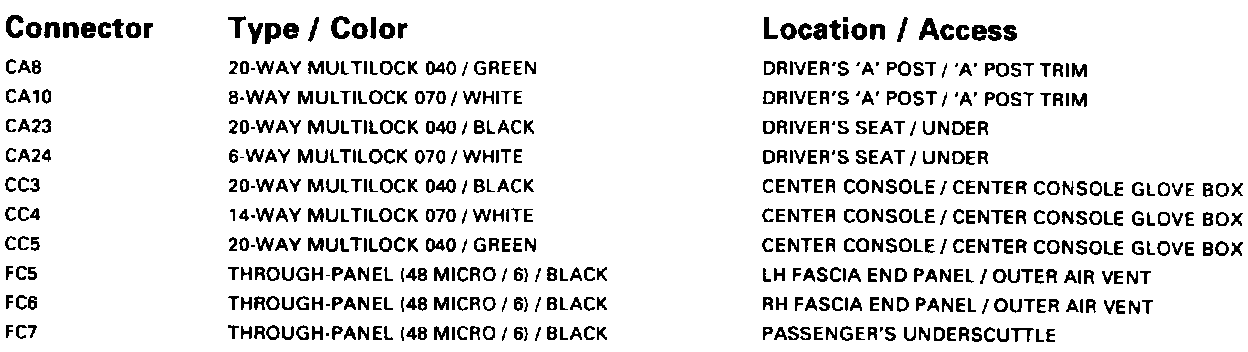

Driver Seat-Non-Memory: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations

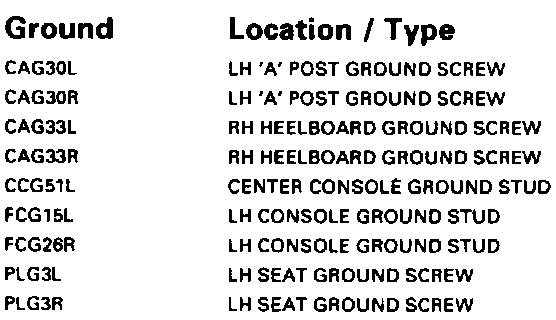

Driver Seat-Non-Memory: Grounds:
Grounds Informations

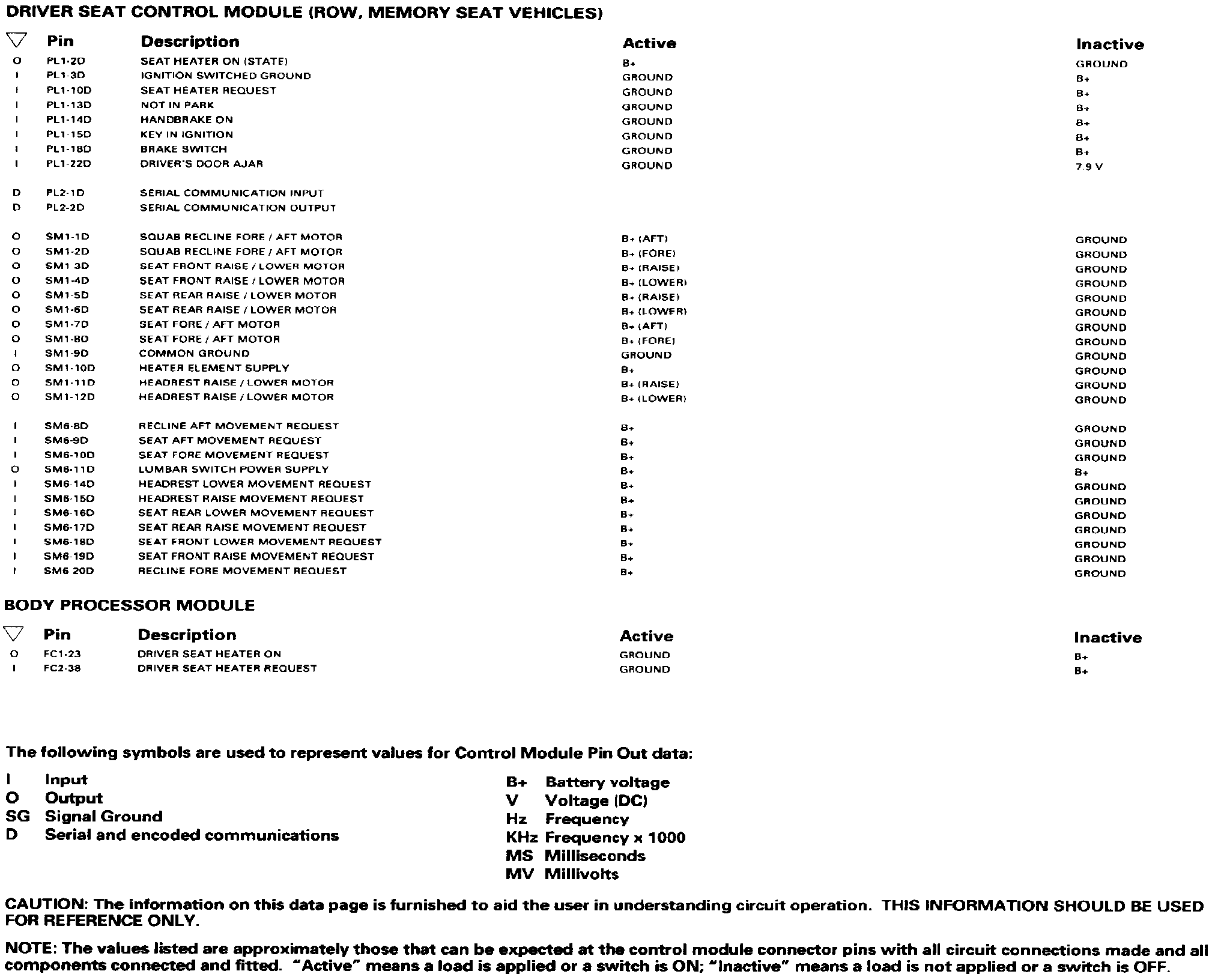

Driver Seat-Non-Memory: Control Module Pin Out Information:
Control Module Pin Out Informations
