Fig 144

N)�"Driver Seat-Raise/Lower Only:

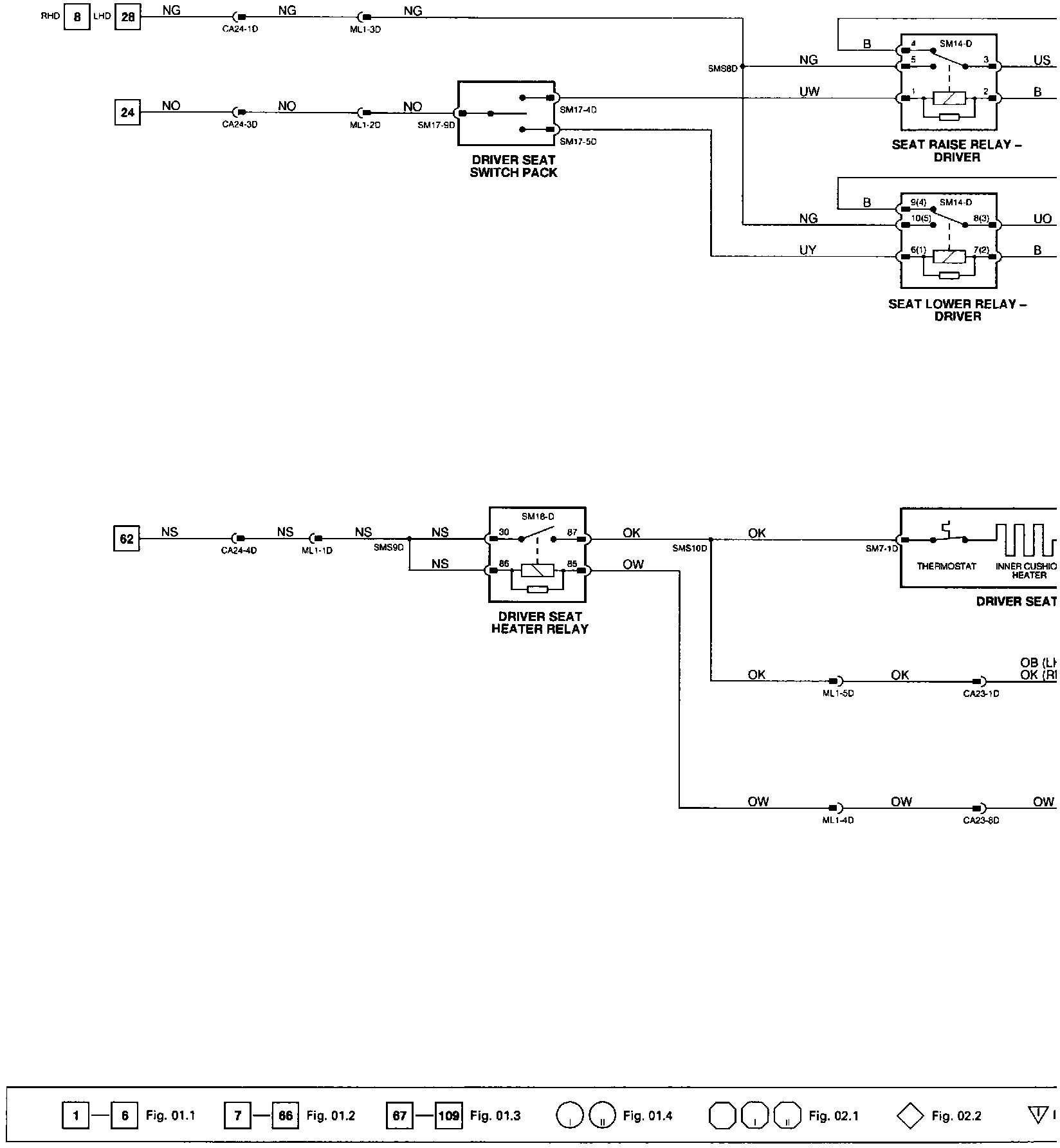

Wiring Diagram

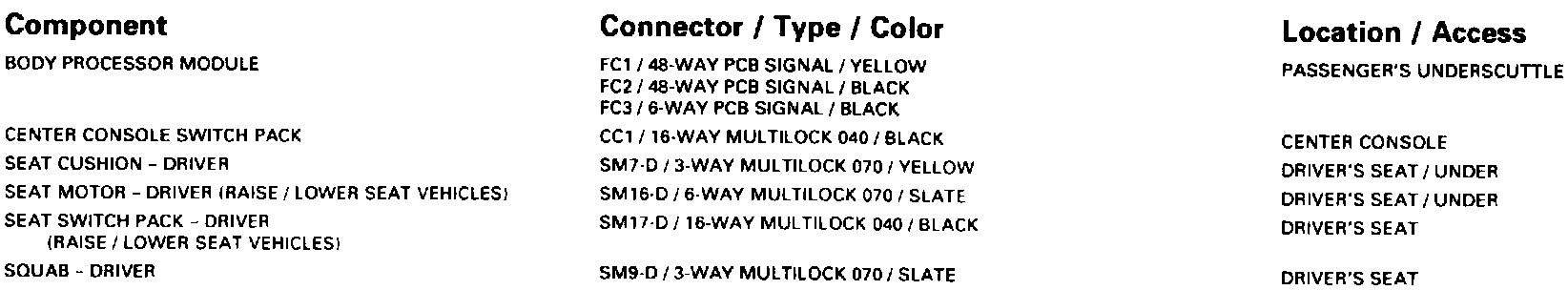

Driver Seat-Raise/Lower Only: Components:




Components Informations

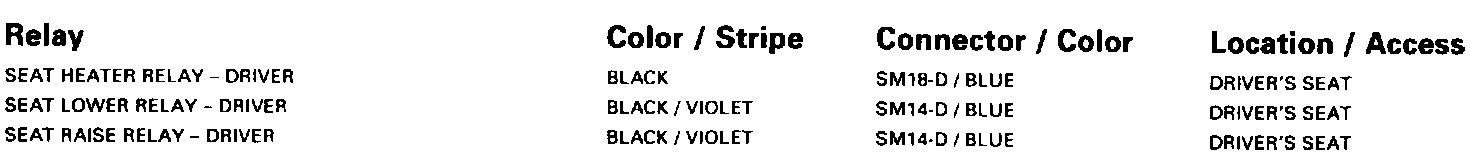

Driver Seat-Raise/Lower Only: Relays:




Relays Informations

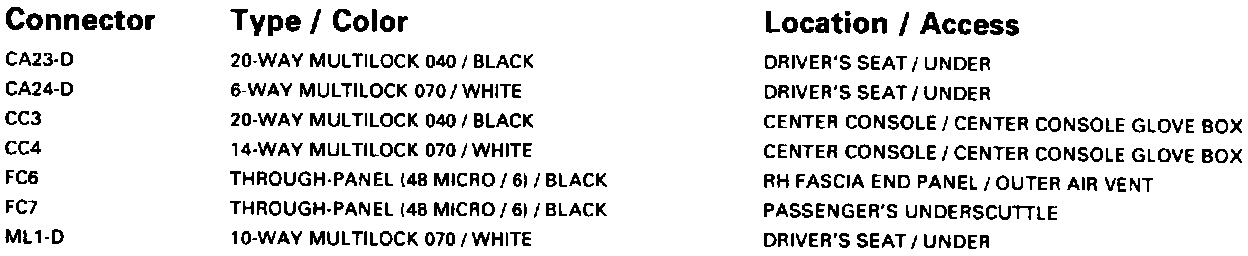

Driver Seat-Raise/Lower Only: Harness-To-Harness Connectors:




Harness-To-Harness Connectors Informations

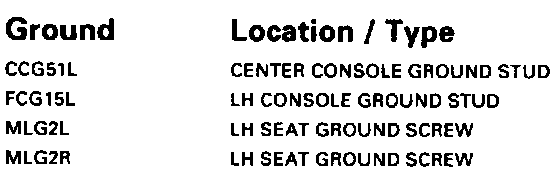

Driver Seat-Raise/Lower Only: Grounds:




Grounds Informations

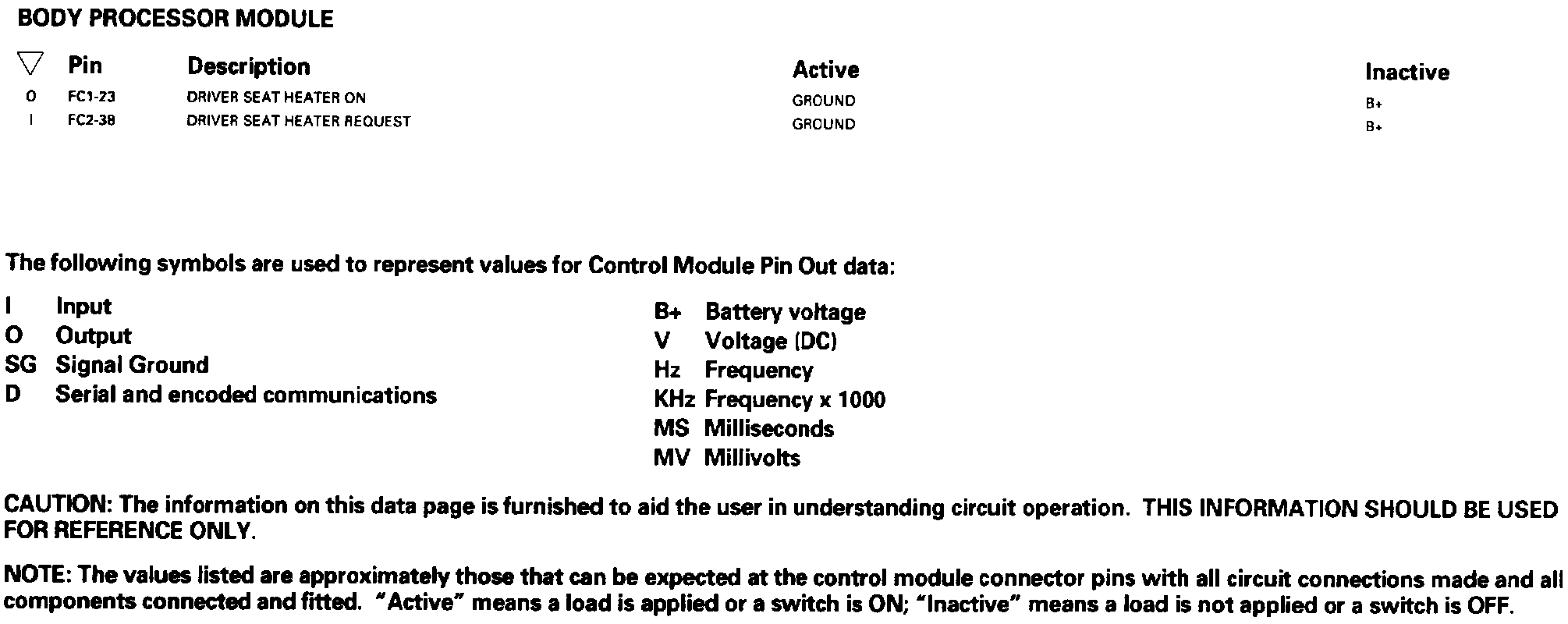

Driver Seat-Raise/Lower Only: Control Module Pin Out Information:




Control Module Pin Out Informations
