Fig 147

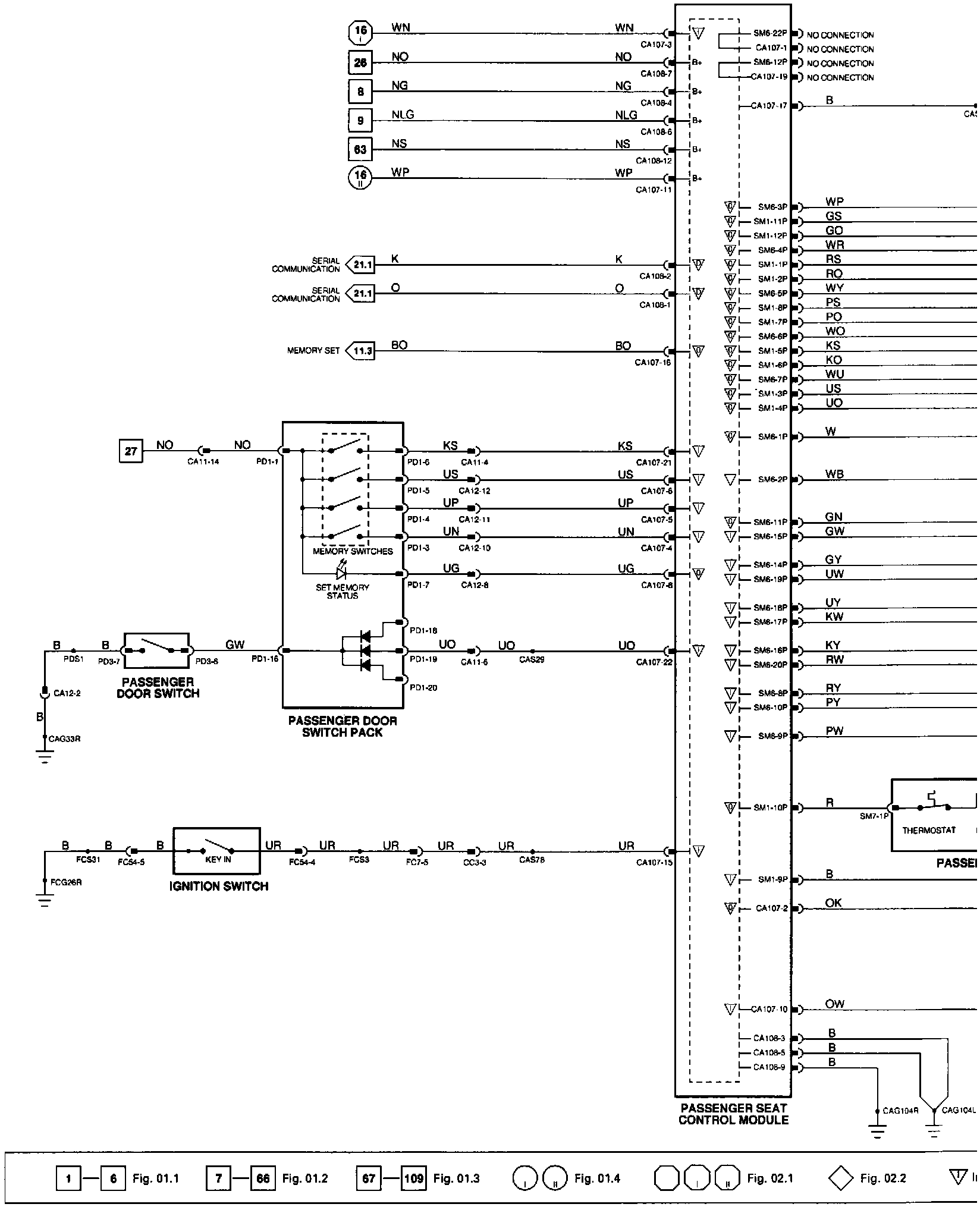

��#Passenger Seat-Memory, NAS/SWB:

Wiring Diagram

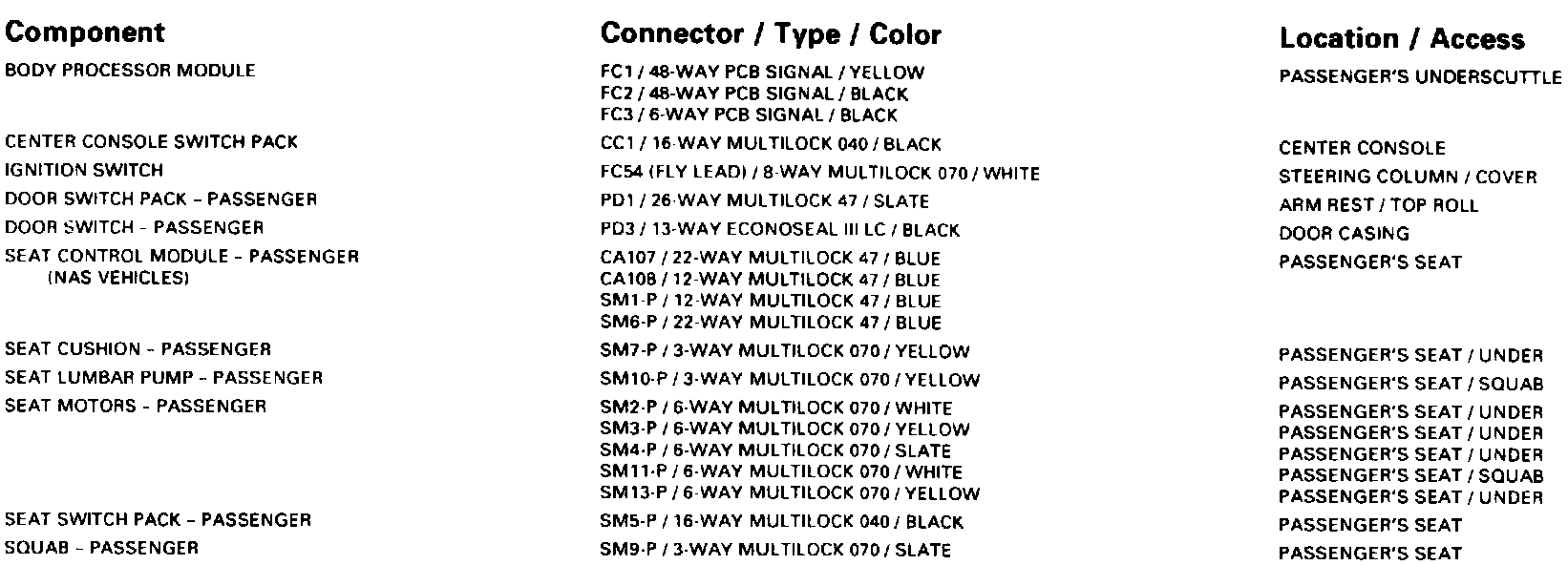

Passenger Seat-Memory, NAS/SWB: Components:

Components Informations

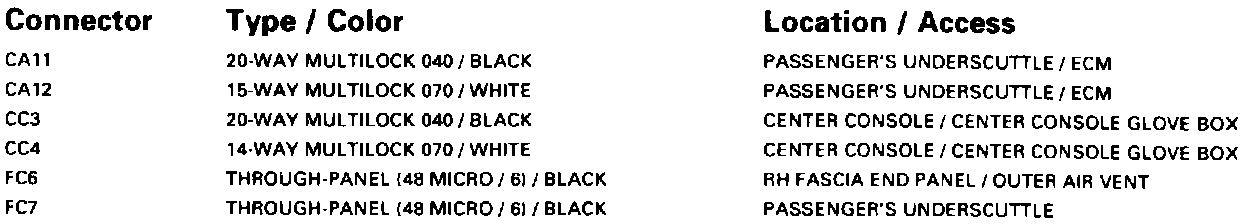

Passenger Seat-Memory, NAS/SWB: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

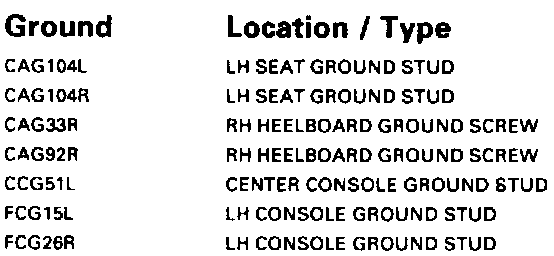

Passenger Seat-Memory, NAS/SWB: Grounds:

Grounds Informations

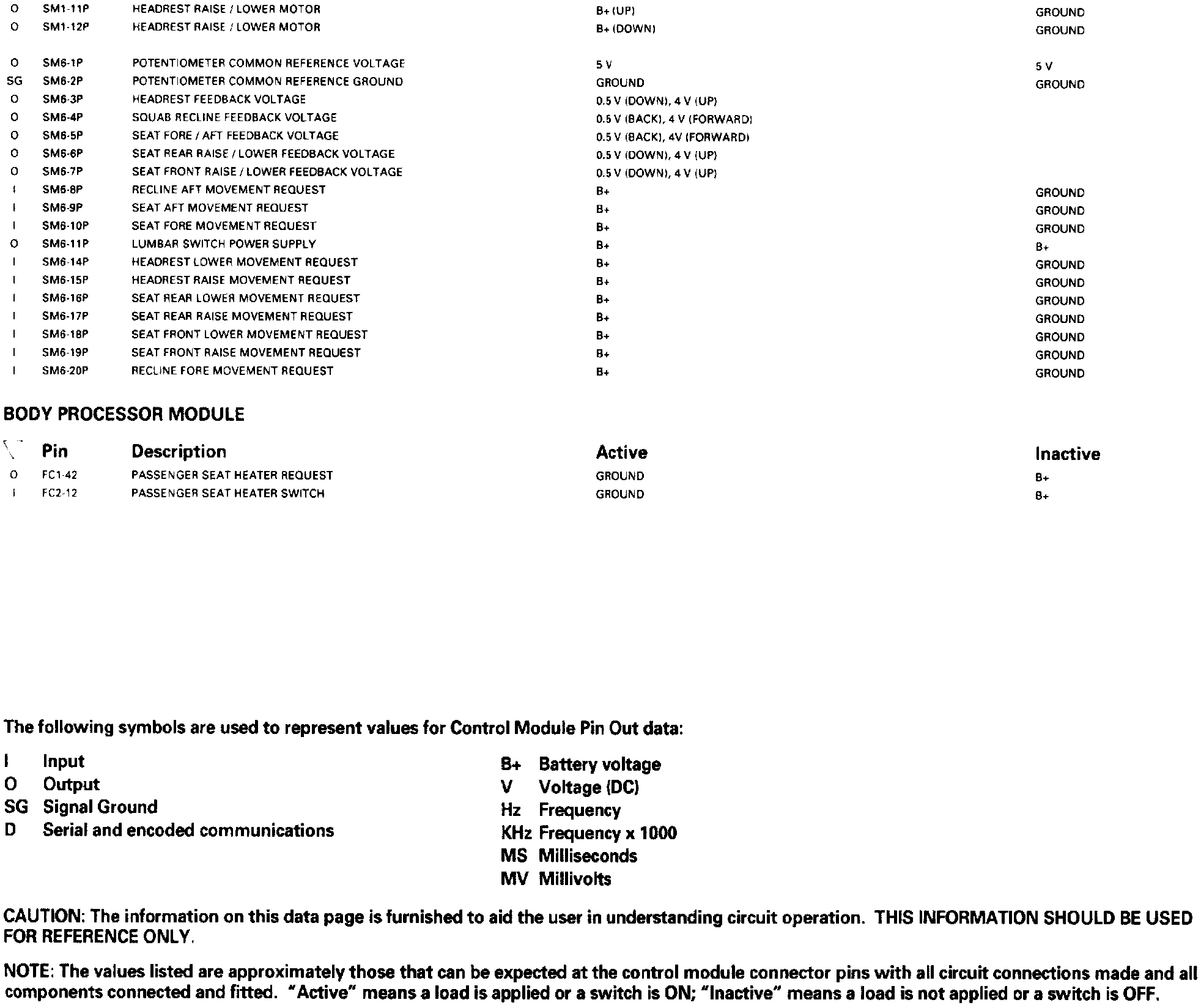

��#Passenger Seat-Memory, NAS/SWB: Control Module Pin Out Information:

Control Module Pin Out Informations
