Fig 149

�� #Passenger Seat-Non-Memory:

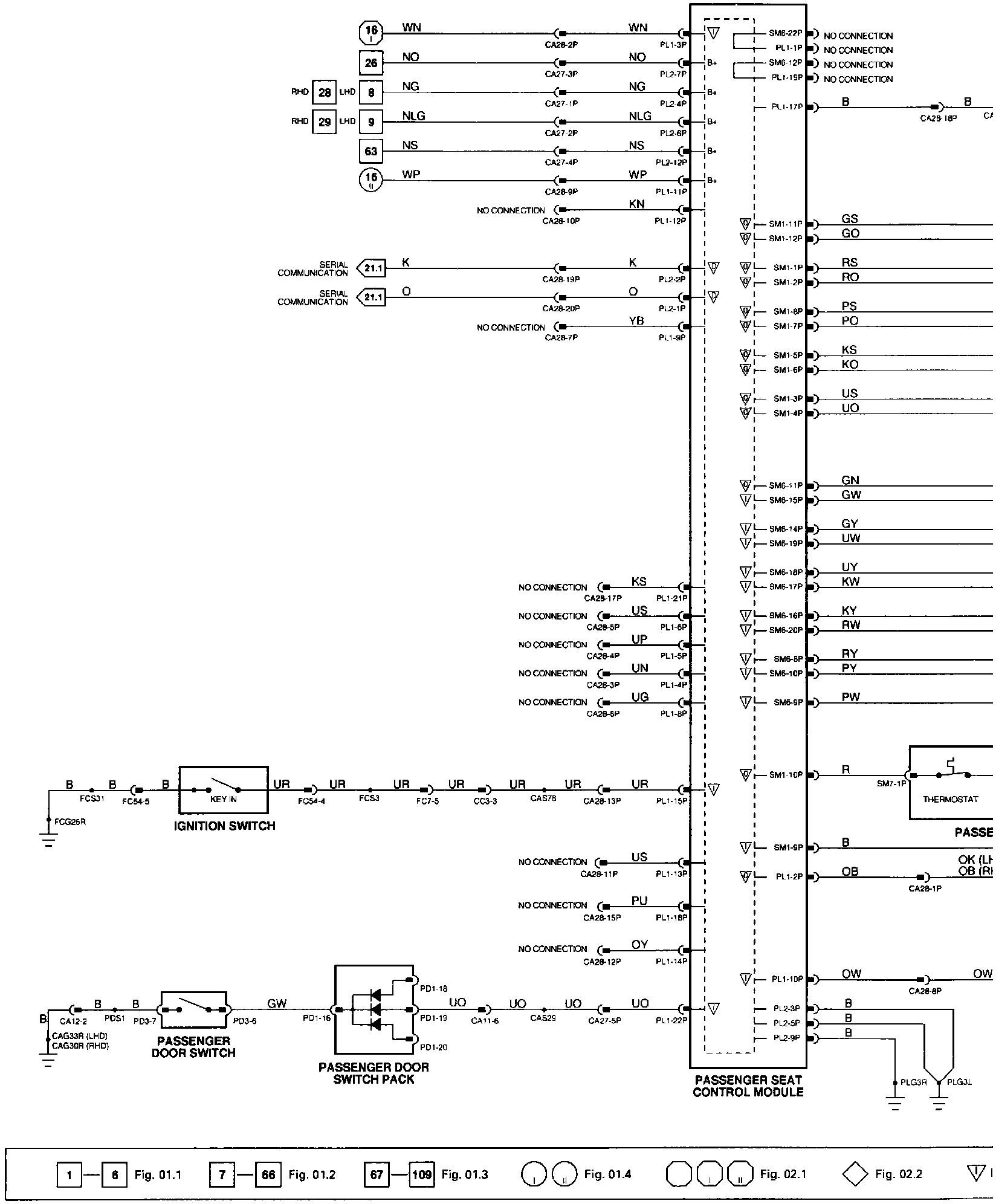

Wiring Diagram

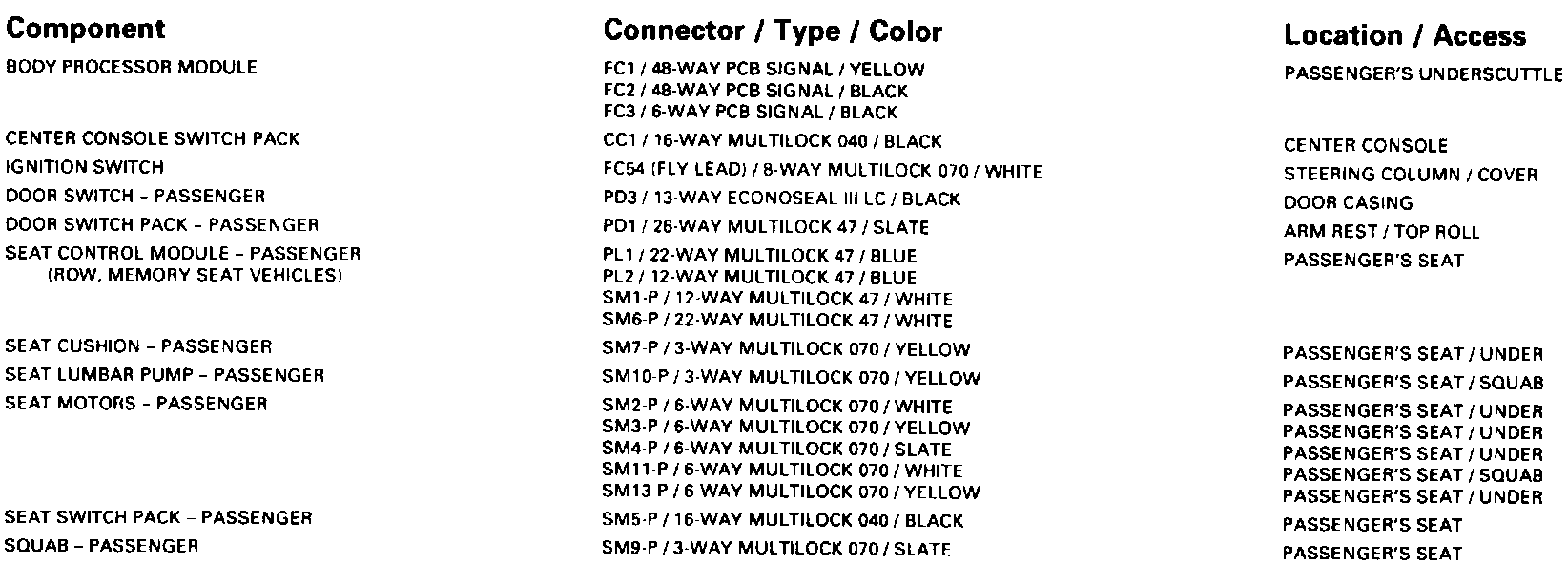

Passenger Seat-Non-Memory: Components:




Components Informations

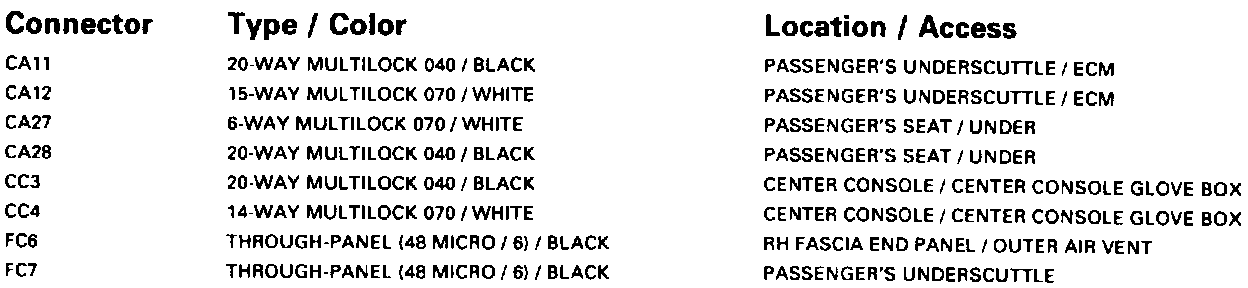

Passenger Seat-Non-Memory: Harness-To-Harness Connectors:




Harness-To-Harness Connectors Informations

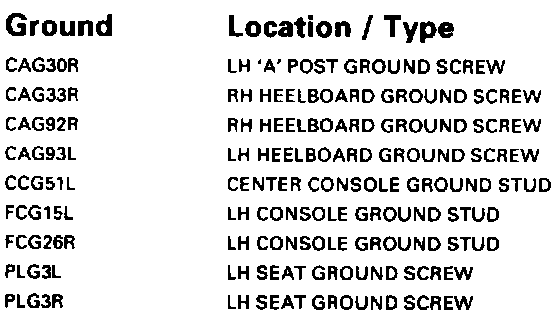

Passenger Seat-Non-Memory: Grounds:




Grounds Informations

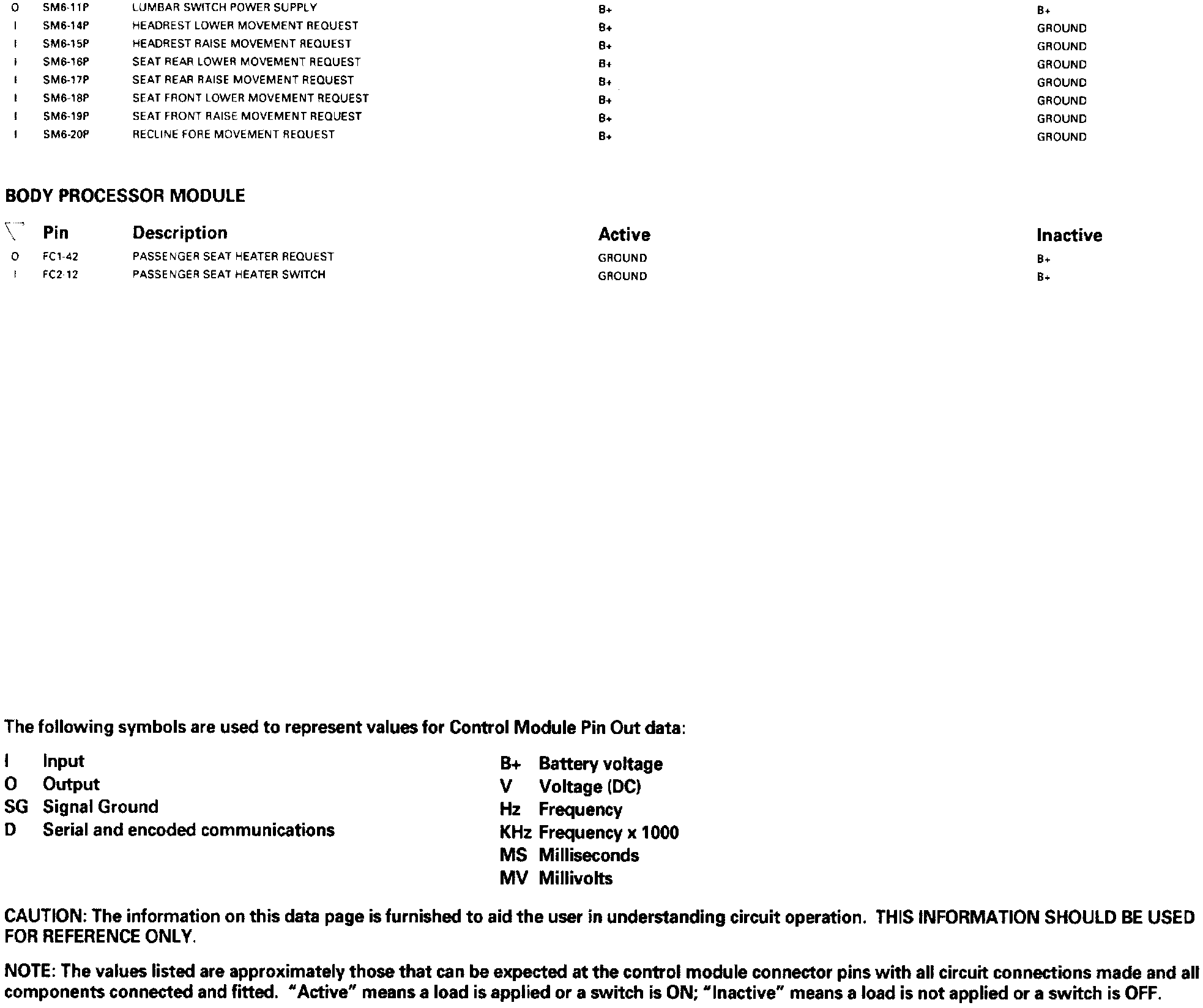

2� #Passenger Seat-Non-Memory: Control Module Pin Out Information:




Control Module Pin Out Informations
