Fig 181
� L'In-Car Entertainment; Telephone:
Wiring Diagram

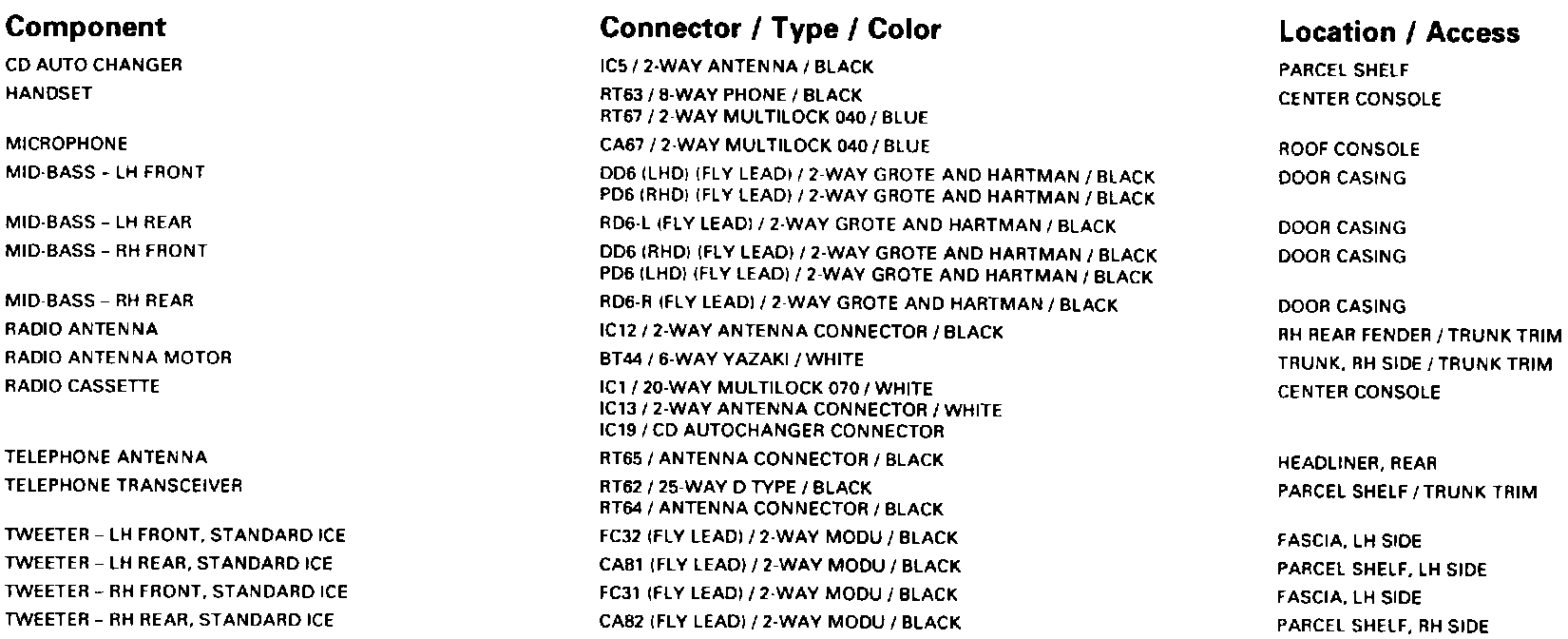

In-Car Entertainment; Telephone: Components:
Components Informations

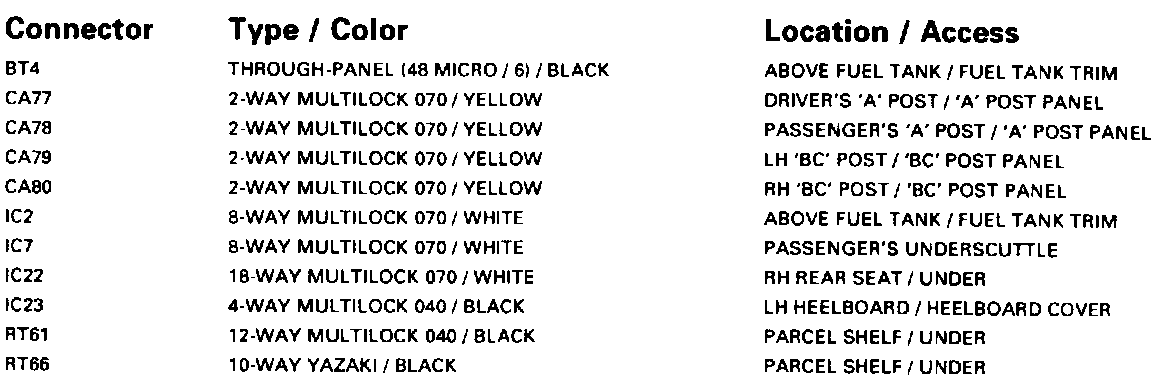

In-Car Entertainment; Telephone: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations
In-Car Entertainment; Telephone: Grounds:
Grounds Informations

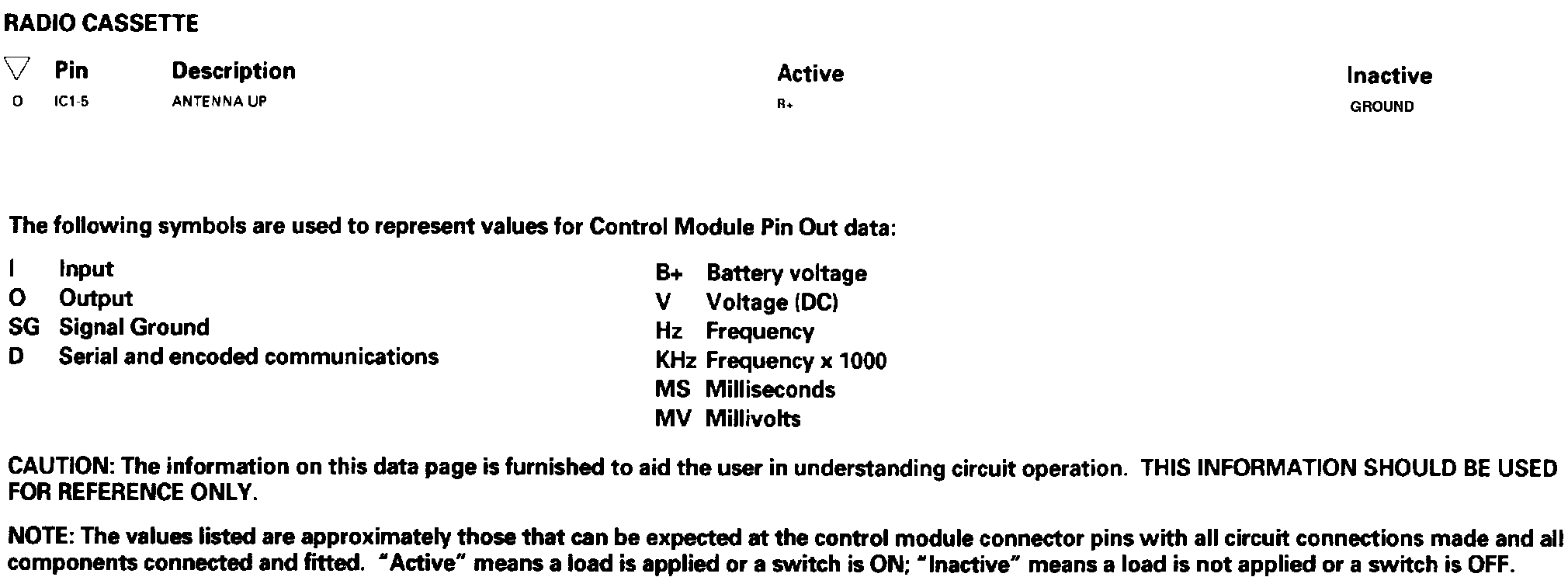

In-Car Entertainment; Telephone: Control Module Pin Out Information:
Control Module Pin Out Informations
