Fig 211
oM} Serial Communication Data Link:

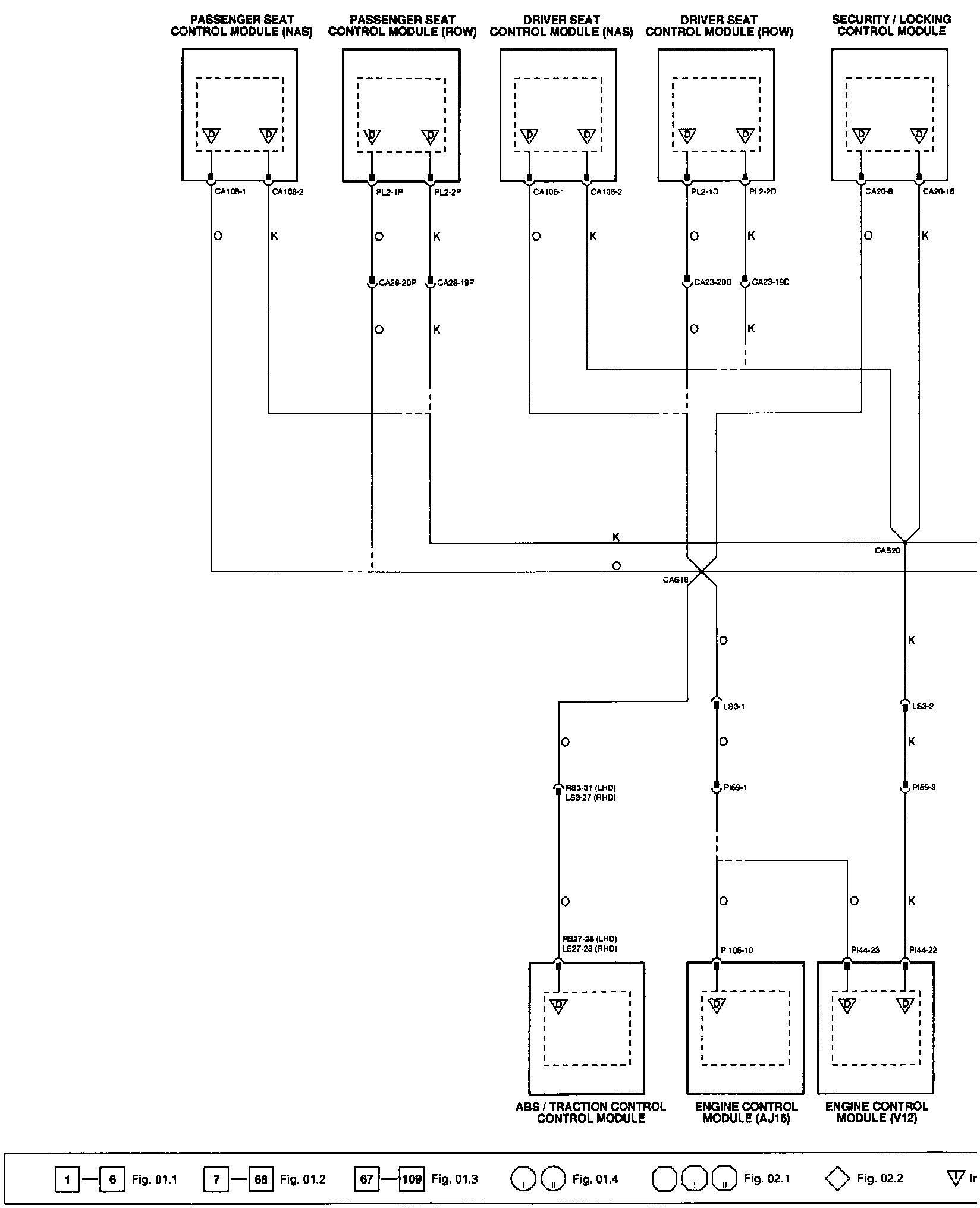

Wiring Diagram

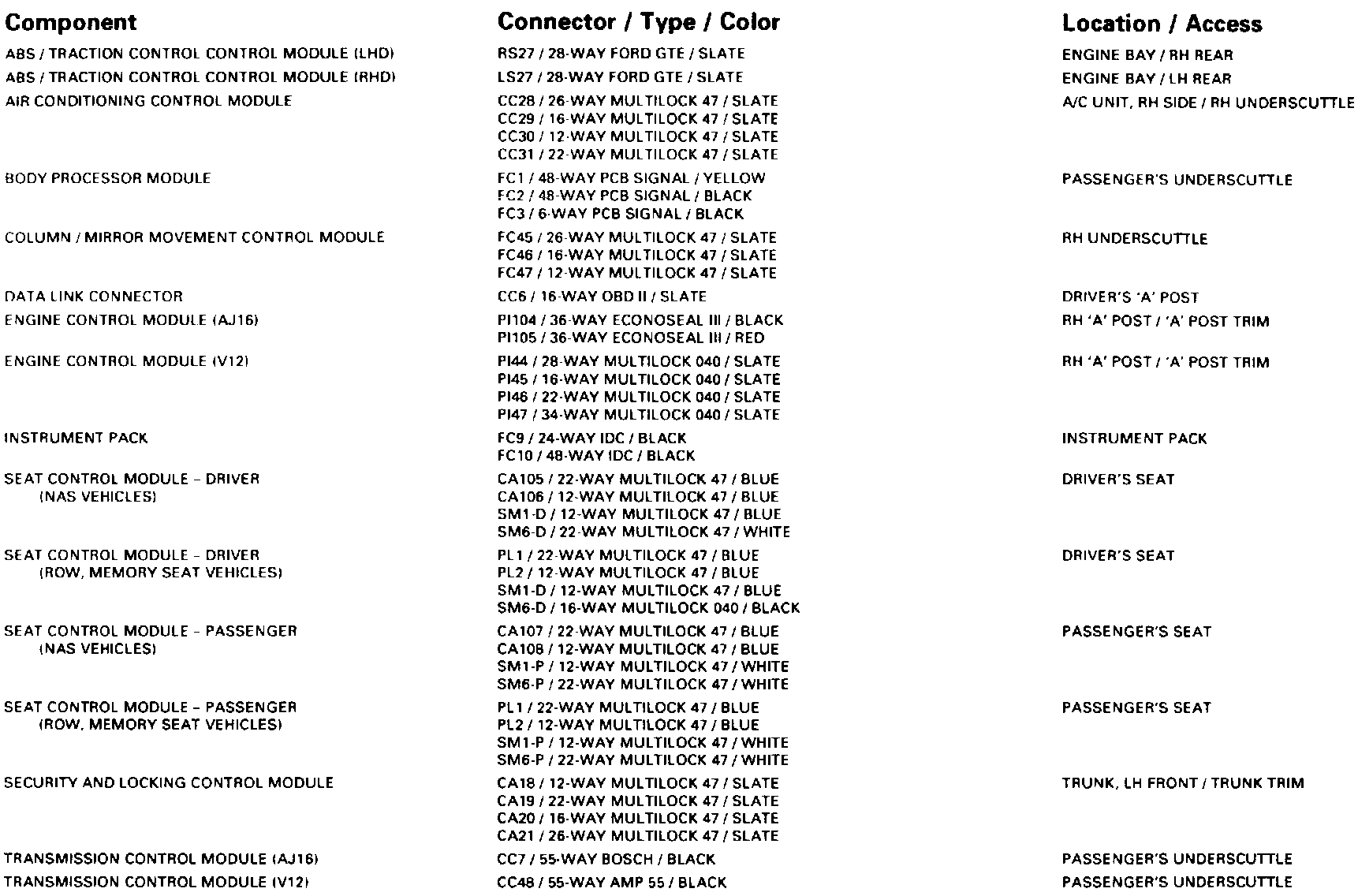

Serial Communication Data Link: Components:
Components Informations

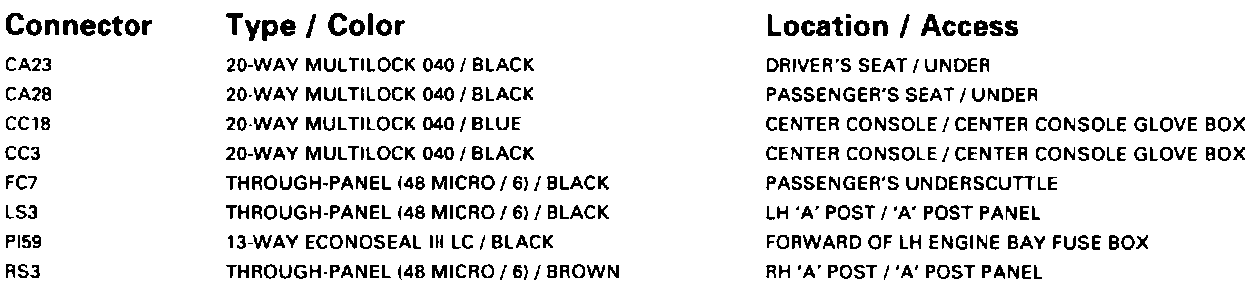

Serial Communication Data Link: Harness-To-Harness Connectors:
Harness-To-Harness Connectors Informations
Serial Communication Data Link: Grounds:
Grounds Informations
