Air Conditioning Compressor

ũ,Radiator Cooling; Air Conditioning Compressor:

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

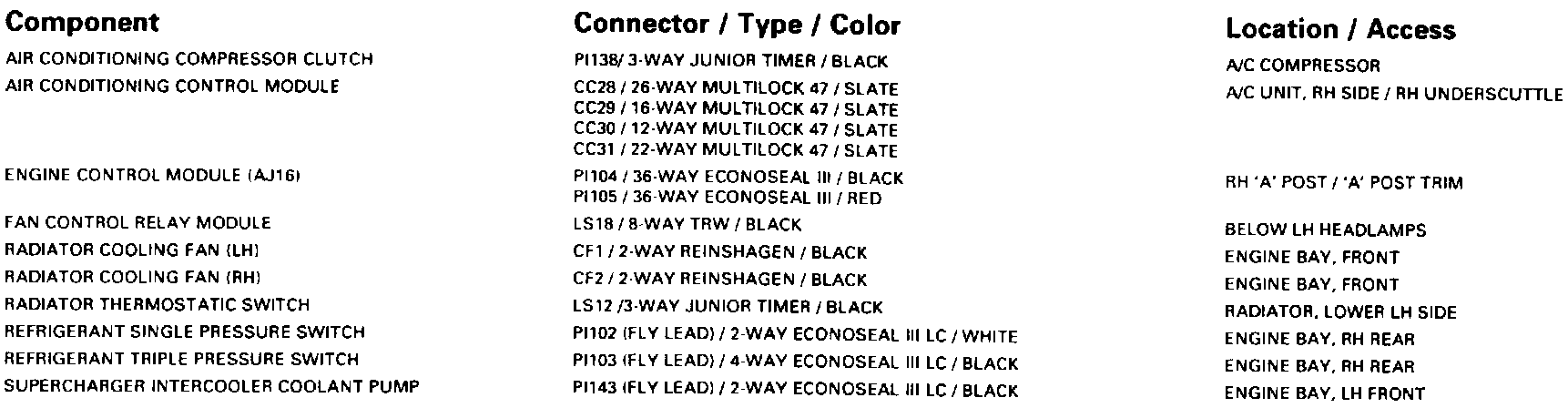

Radiator Cooling; Air Conditioning Compressor: Components:

Component Information

Radiator Cooling; Air Conditioning Compressor: Relays:

Relay Information

Radiator Cooling; Air Conditioning Compressor: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

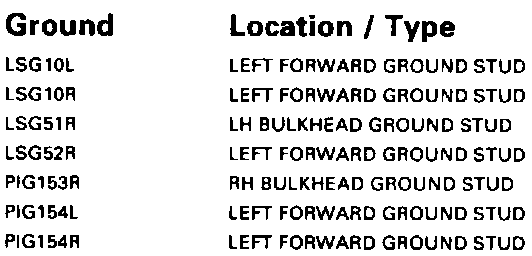

Radiator Cooling; Air Conditioning Compressor: Grounds:

Ground Information

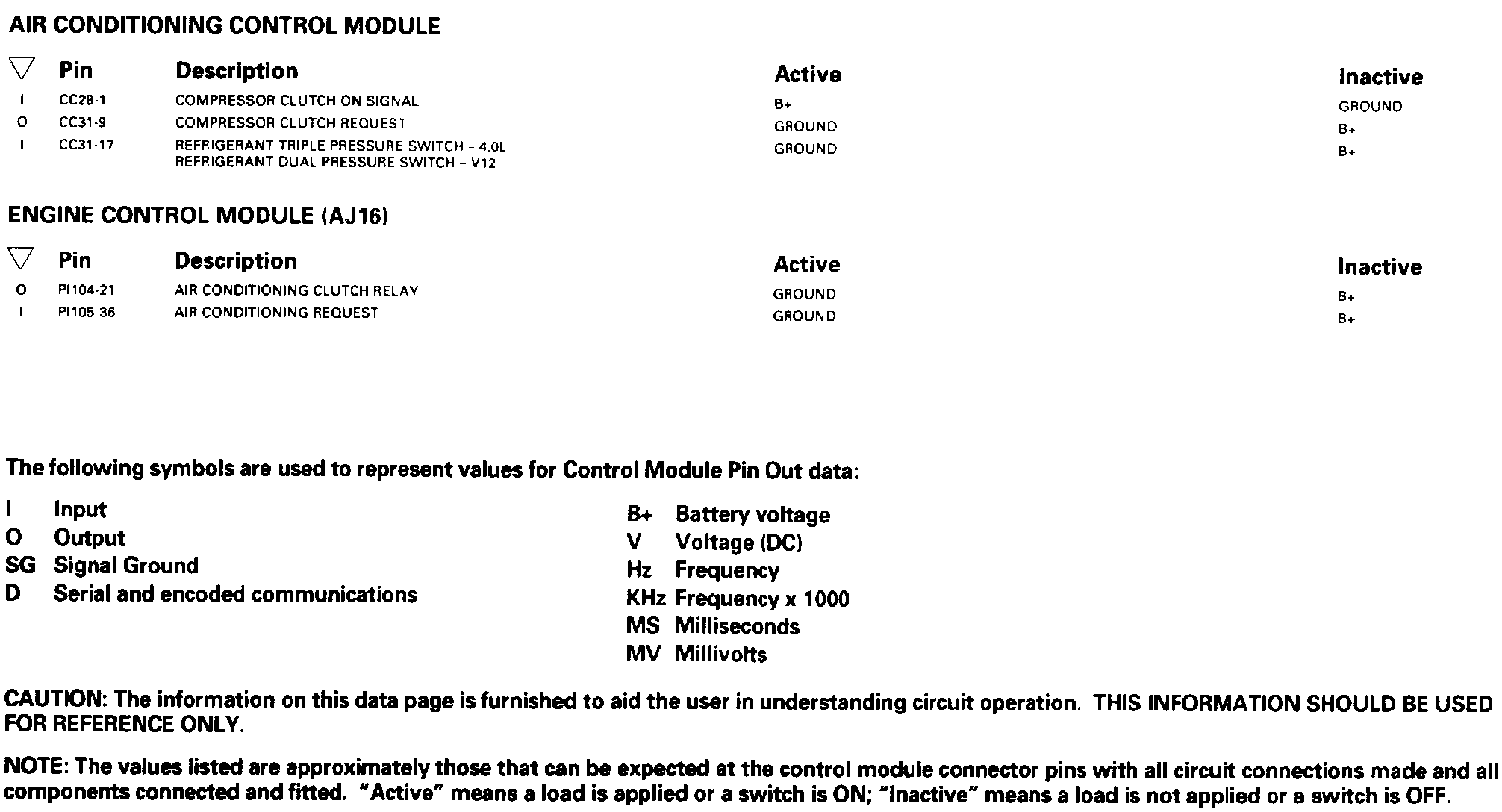

Radiator Cooling; Air Conditioning Compressor: Control Module Pin Out Information:

Control Module Pin Out Informations
