Instrument Cluster

The instruments measure, monitor and display data relevant to the vehicle's performance. Data is received from sensors positioned at various locations around the vehicle via two multi-pin sockets located at the rear of the instrument panel and is than presented using three different visual display methods.

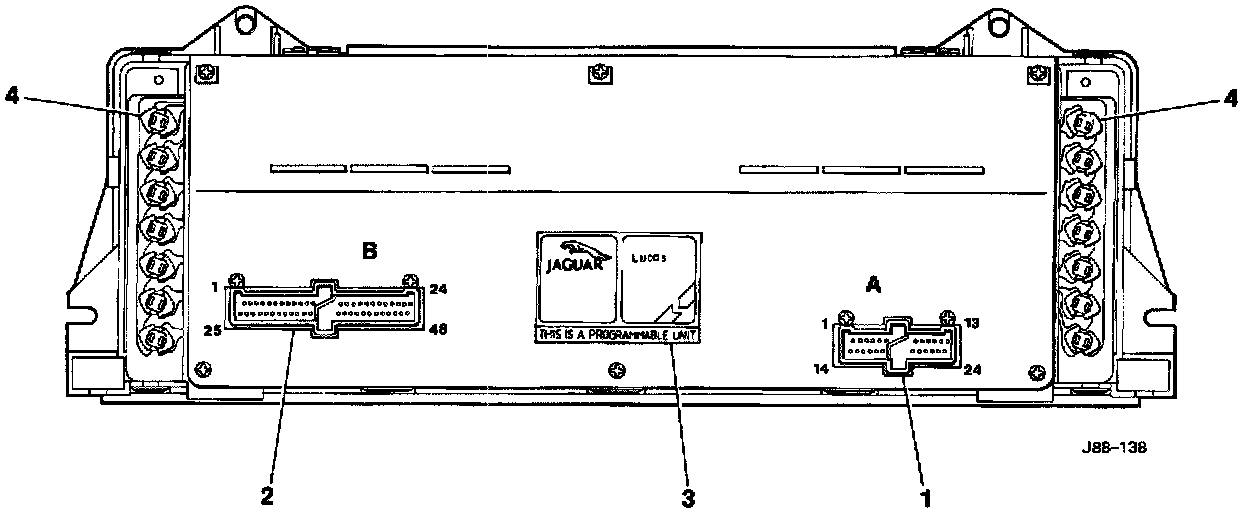

Instrument Panel, Rear View:

Instrument Panel, Front View:

NOTE: The 'Premium Unleaded Fuel Only' caution is added to Federal Market vehicles, also 'PARK BRAKE' and 'BRAKE' replace international symbols used in all other markets.


NOTE: Six cylinder vehicle version shown; the tachometer red-line on 12 cylinder vehicles starts at 6000 RPM.


The front of 'PECUS' programmable instrument panel features 6 analogue gauges, 22 warning lamps/tell tales and a Liquid Crystal Display (LCD), the rear of the panel accommodates two P.C.B. mounted connectors, one 24-way connector, one 4-way connector, one instrument panel identification label and 14 light bulbs arranged in groups of seven on either side. Three power inputs and two ground inputs are provided for 'POWER UP' and 'POWER DOWN' sequence, the three power inputs comprising battery, ignition and auxiliary. The instruments are protected by a housing/lens assembly.
