Gauges & Indicator Bulbs

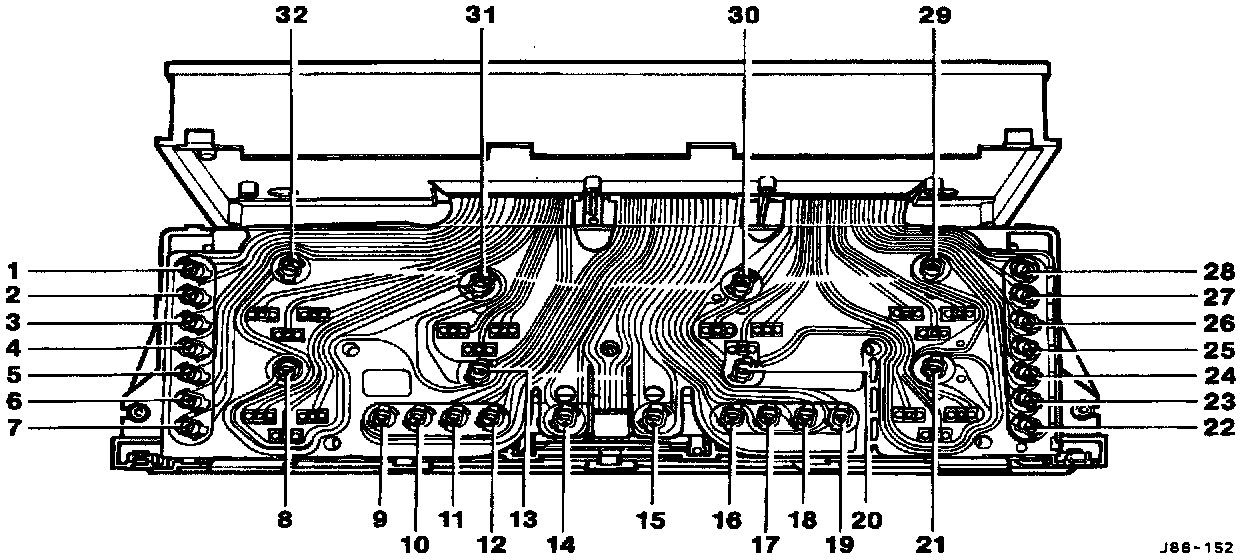

Instrument Panel Rear View Fig. 1:

The bulbs of the status/warning lamps are renewed after the removal of the complete instrument pack/housing assembly, whereas the remaining bulbs can be accessed by releasing the two instrument electronic pack securing clips.

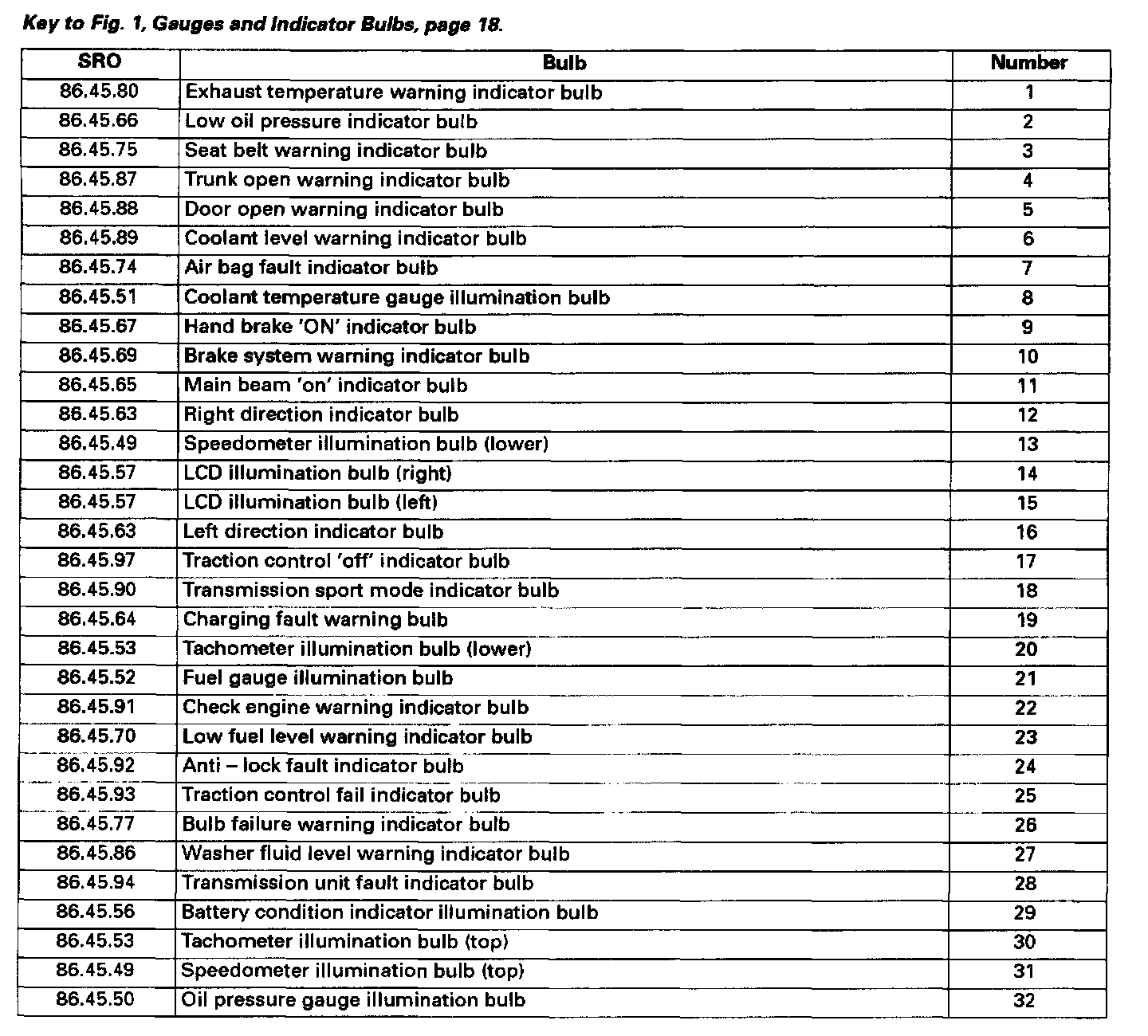

Table To Fig. 1:

NOTE: The following five warning indicator bulbs located in the lower right-hand side corner of the instrument panel are accessible without removing the panel:
(3) Seat belt warning indicator bulb
(4) Trunk open warning indicator bulb
(5) Door open warning indicator bulb
(6) Coolant level warning indicator bulb
(7) Air bag fault indicator bulb
