Electrical Diagrams

;�Ancillaries:

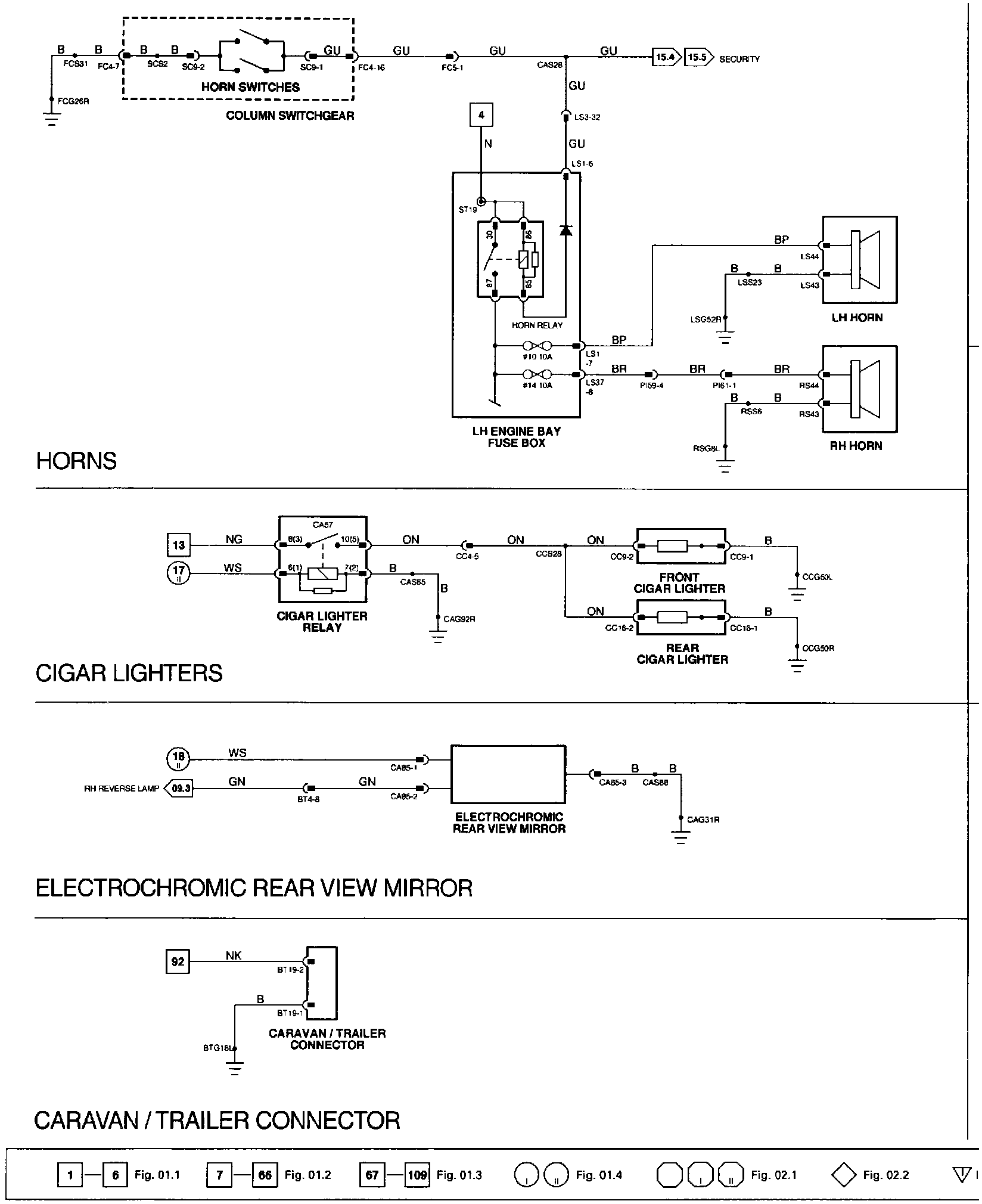

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Ancillaries: Components:

Component Information

Ancillaries: Relays:

Relay Information

Ancillaries: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Ancillaries: Grounds:

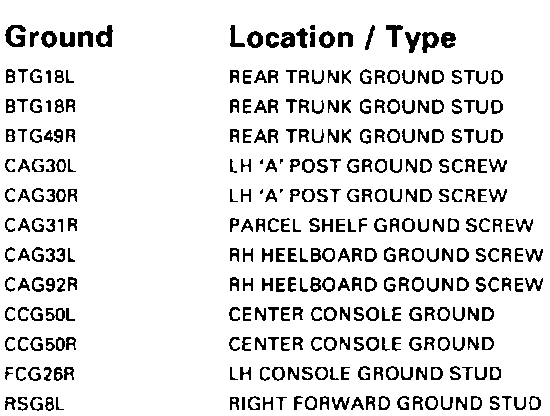

Ground Information
