Lighting and Horns

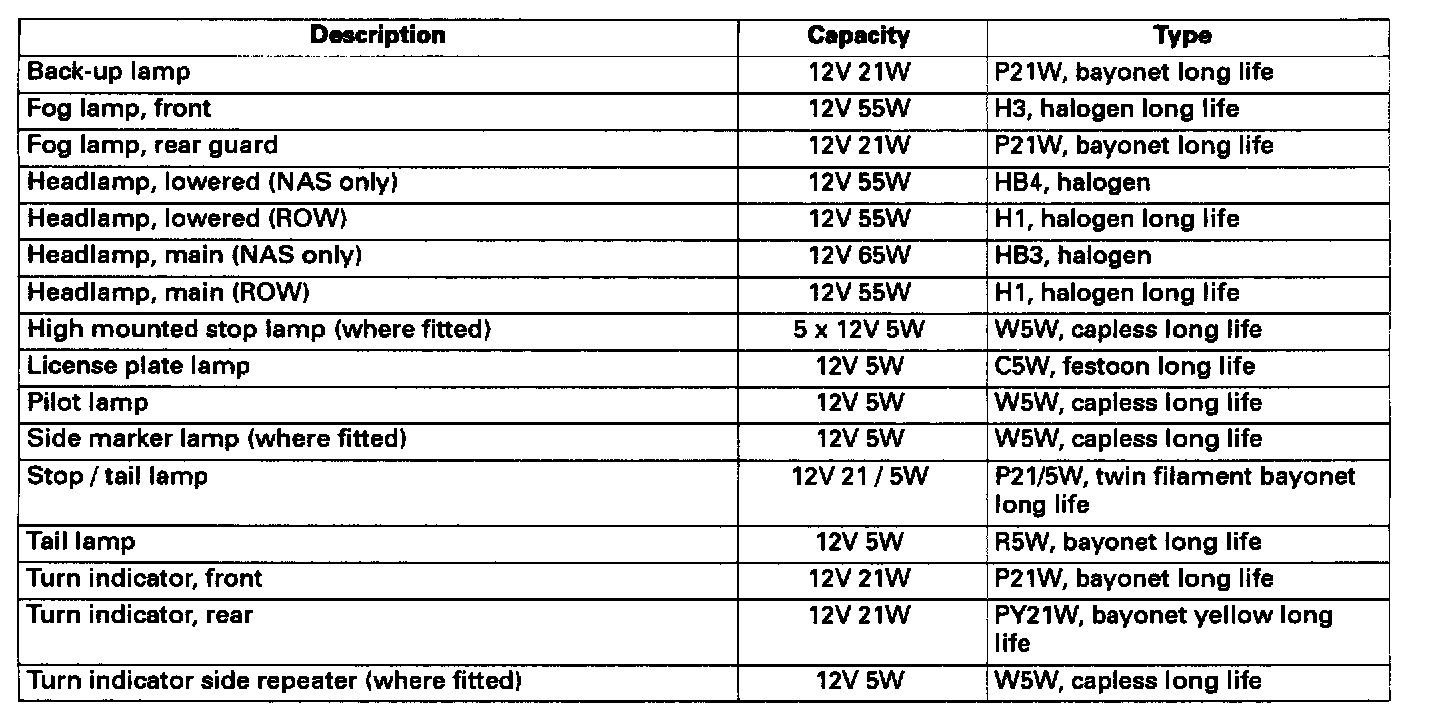

Exterior Bulbs:

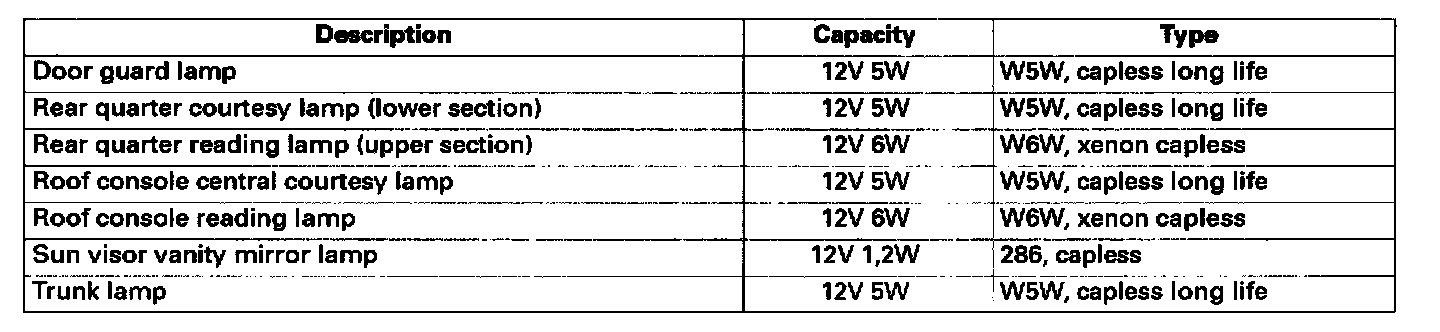

Interior Bulbs:






Instrument Illumination Bulbs:

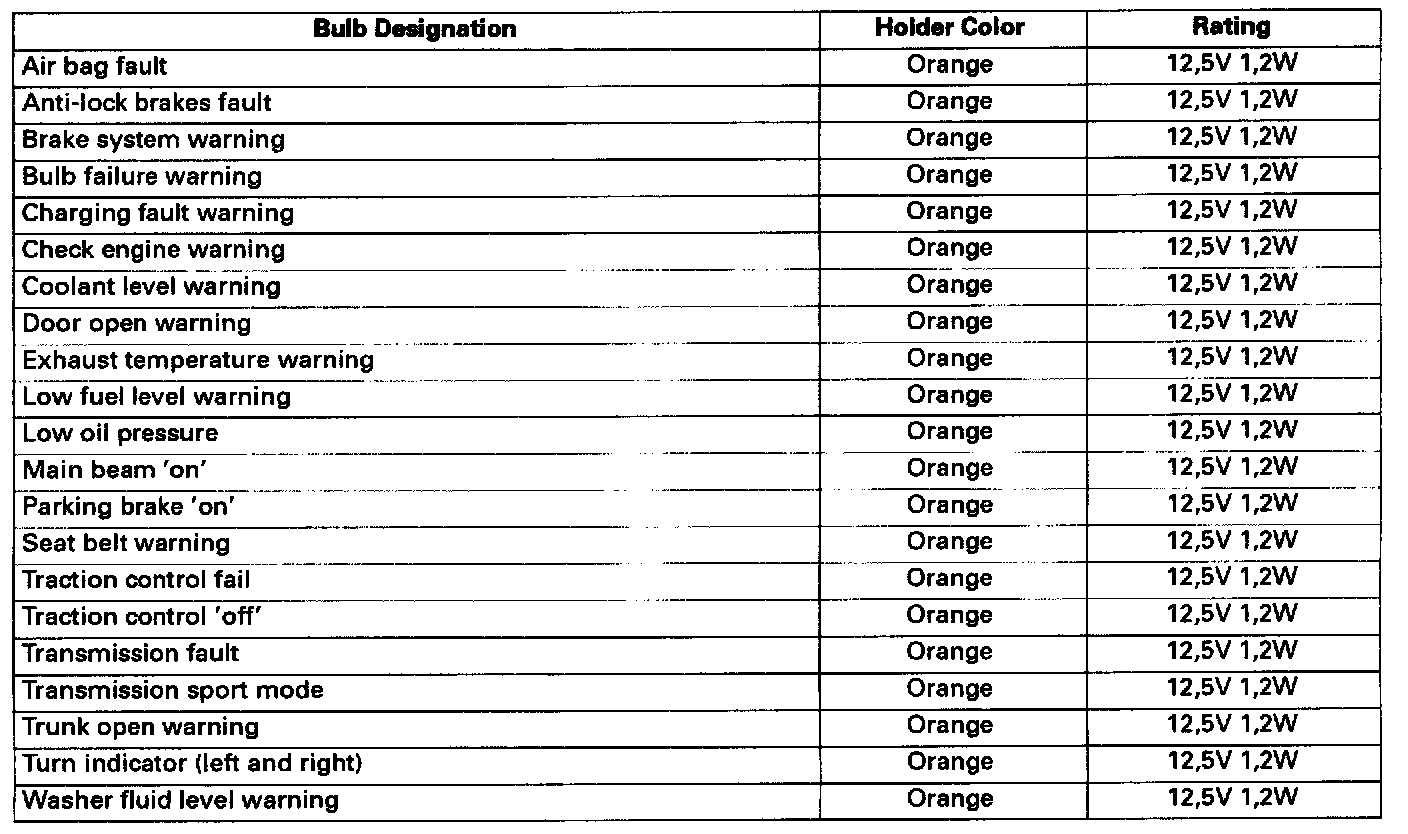

Indicator Bulbs:
