Operation CHARM: Car repair manuals for everyone.
Home >> Jaguar >> 1996 >> XJR (X300) L6-4.0L SC (AJ16) >> Repair and Diagnosis >> Steering and Suspension >> Specifications

Steering and Suspension: Specifications

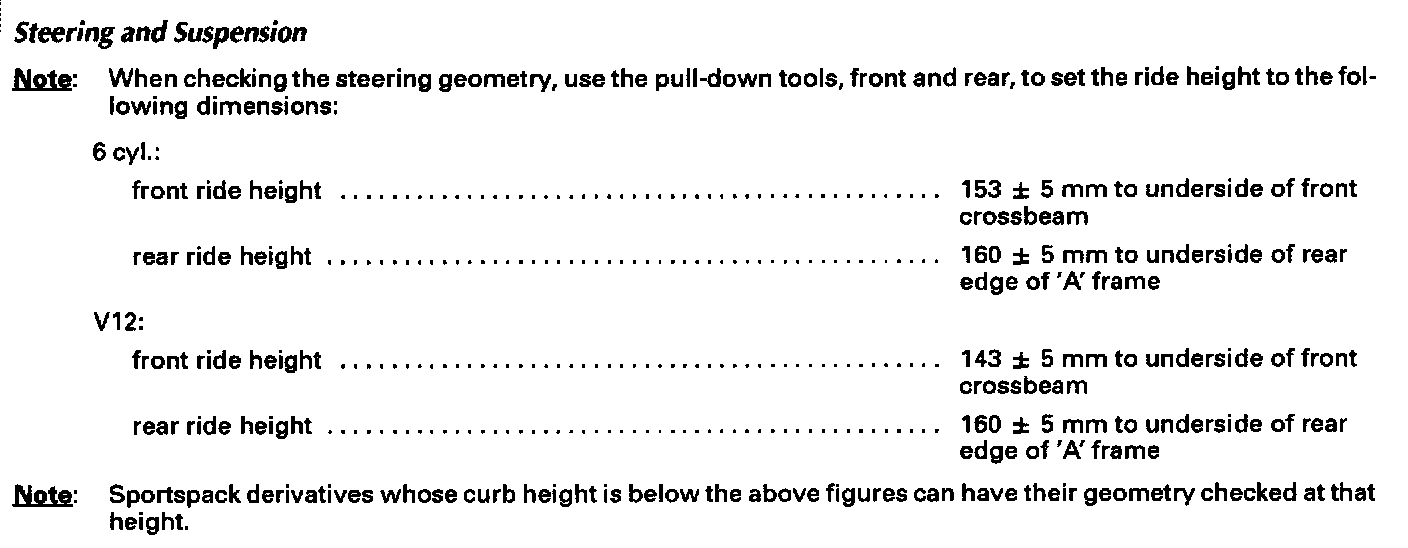

Steering and Suspension:

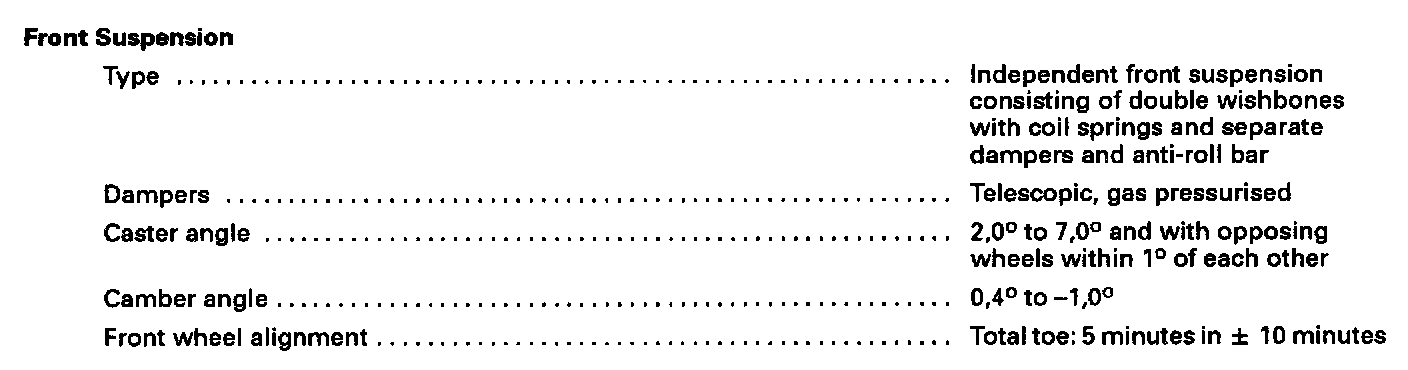

Front Suspension:

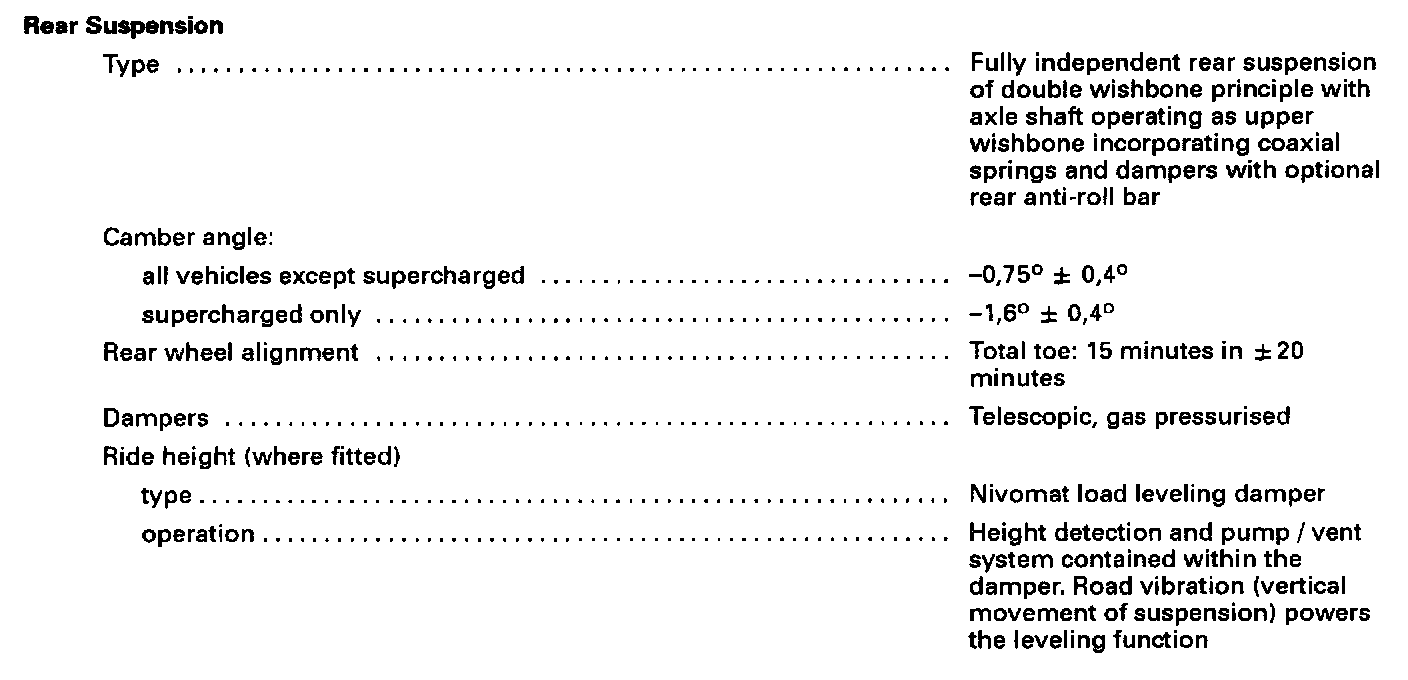

Rear Suspension:

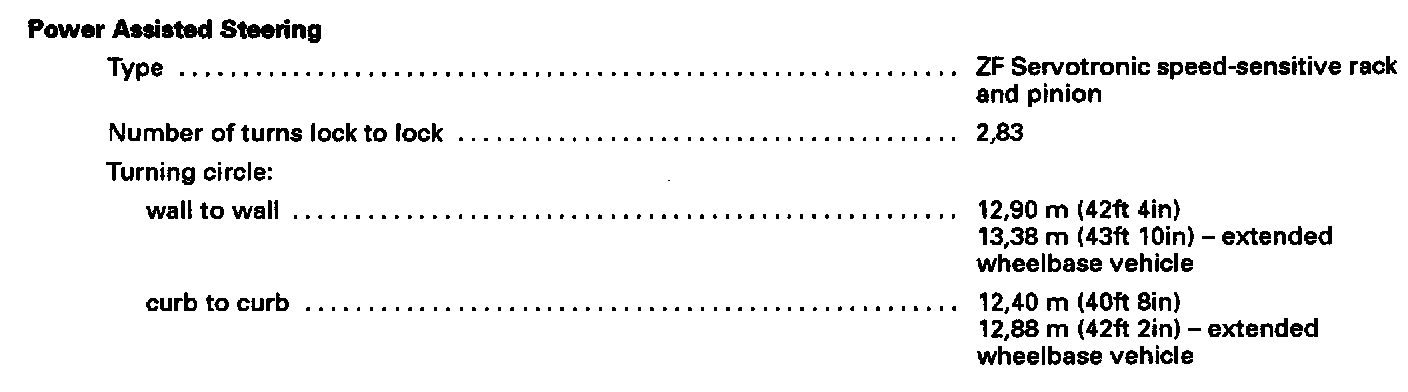

Power Assisted Steering:
