Electrical Diagrams

�e�&Wash/Wipe System:

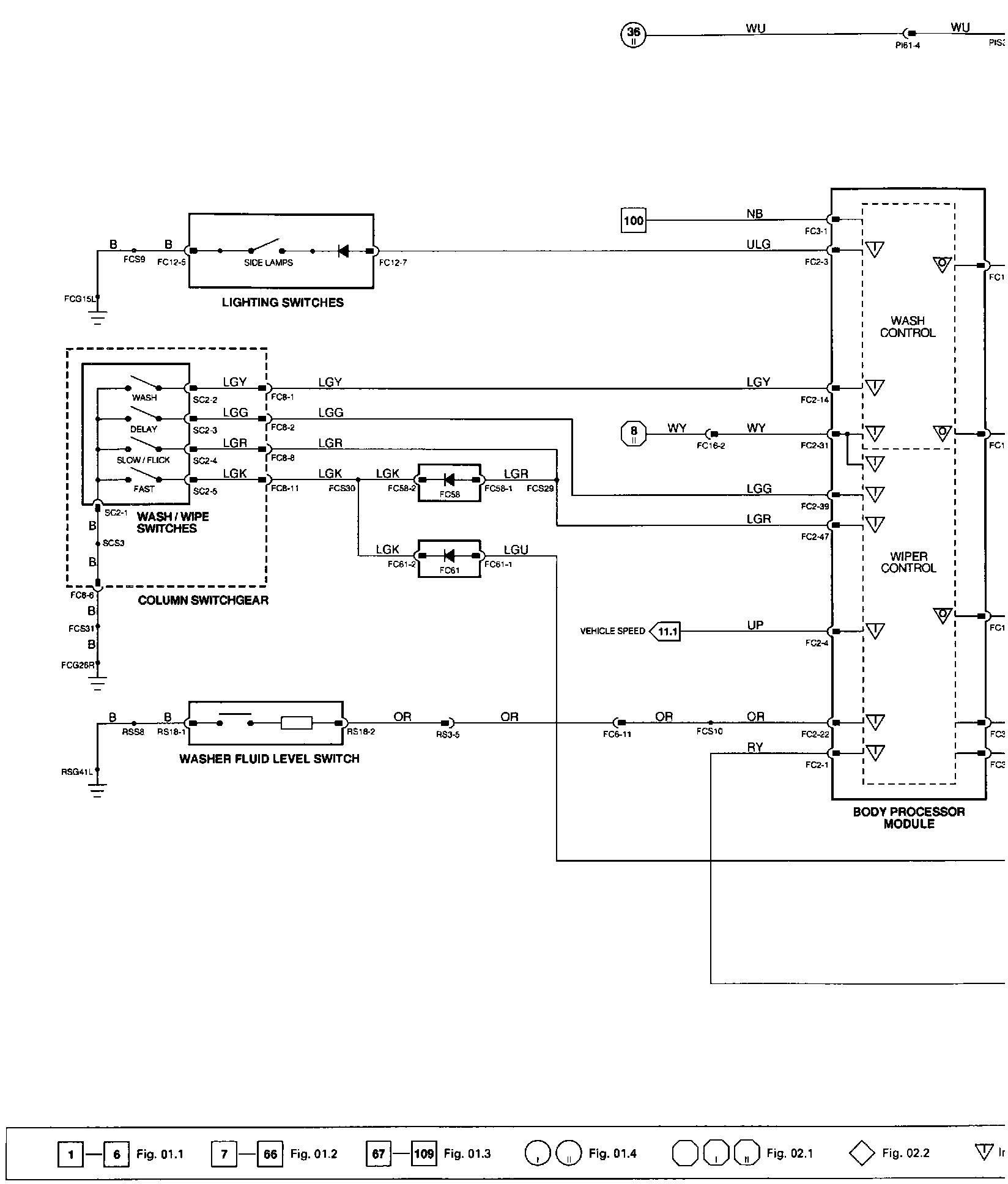

Wiring Diagram

Use the Hyperlink (VIEW) button to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

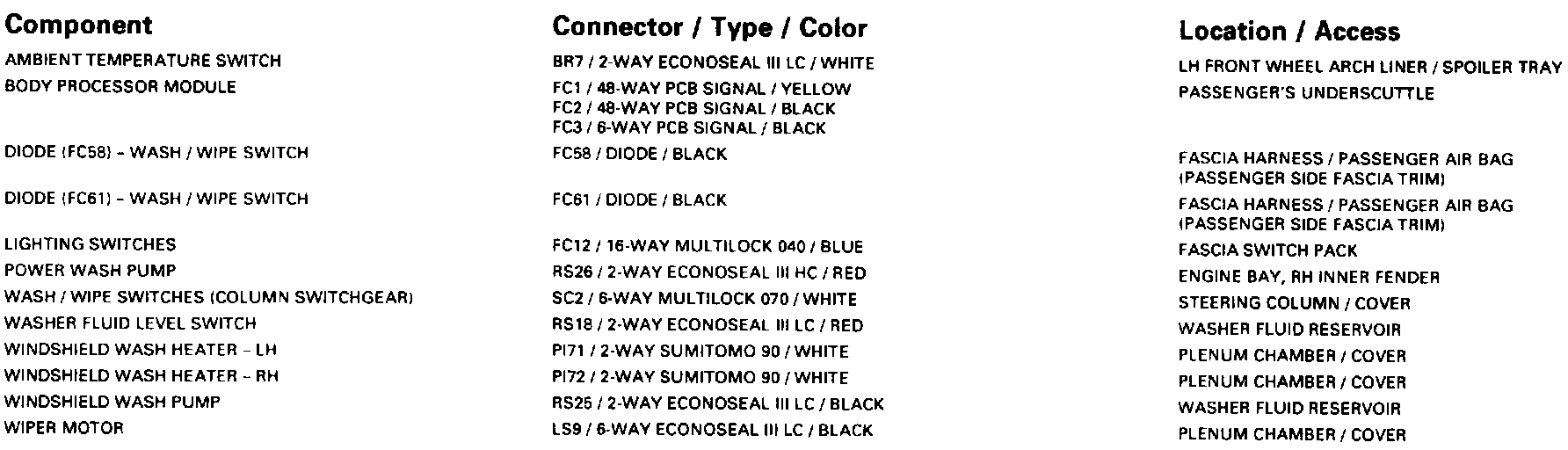

Wash/Wipe System: Components:

Component Information

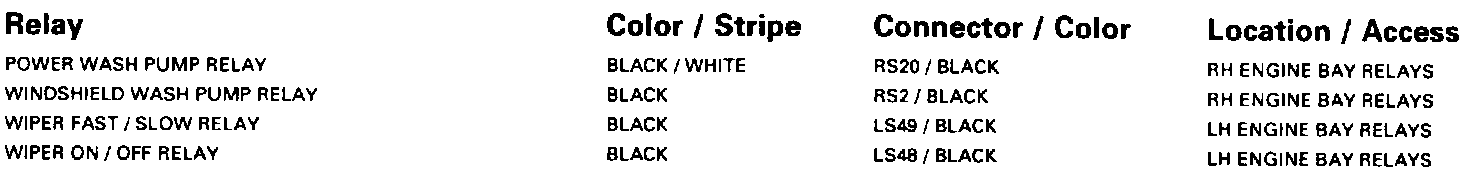

Wash/Wipe System: Relays:

Relay Information

Wash/Wipe System: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

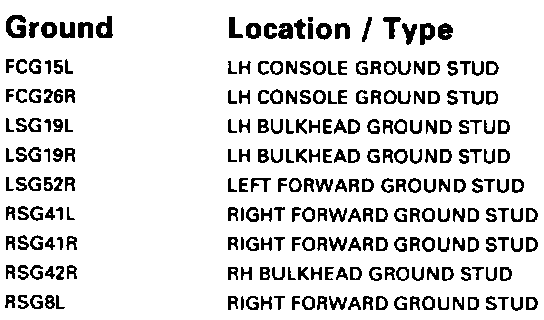

Wash/Wipe System: Grounds:

Ground Information

Wash/Wipe System: Control Module Pin Out Information:

Control Module Pin Out Informations
