Fig 14.8

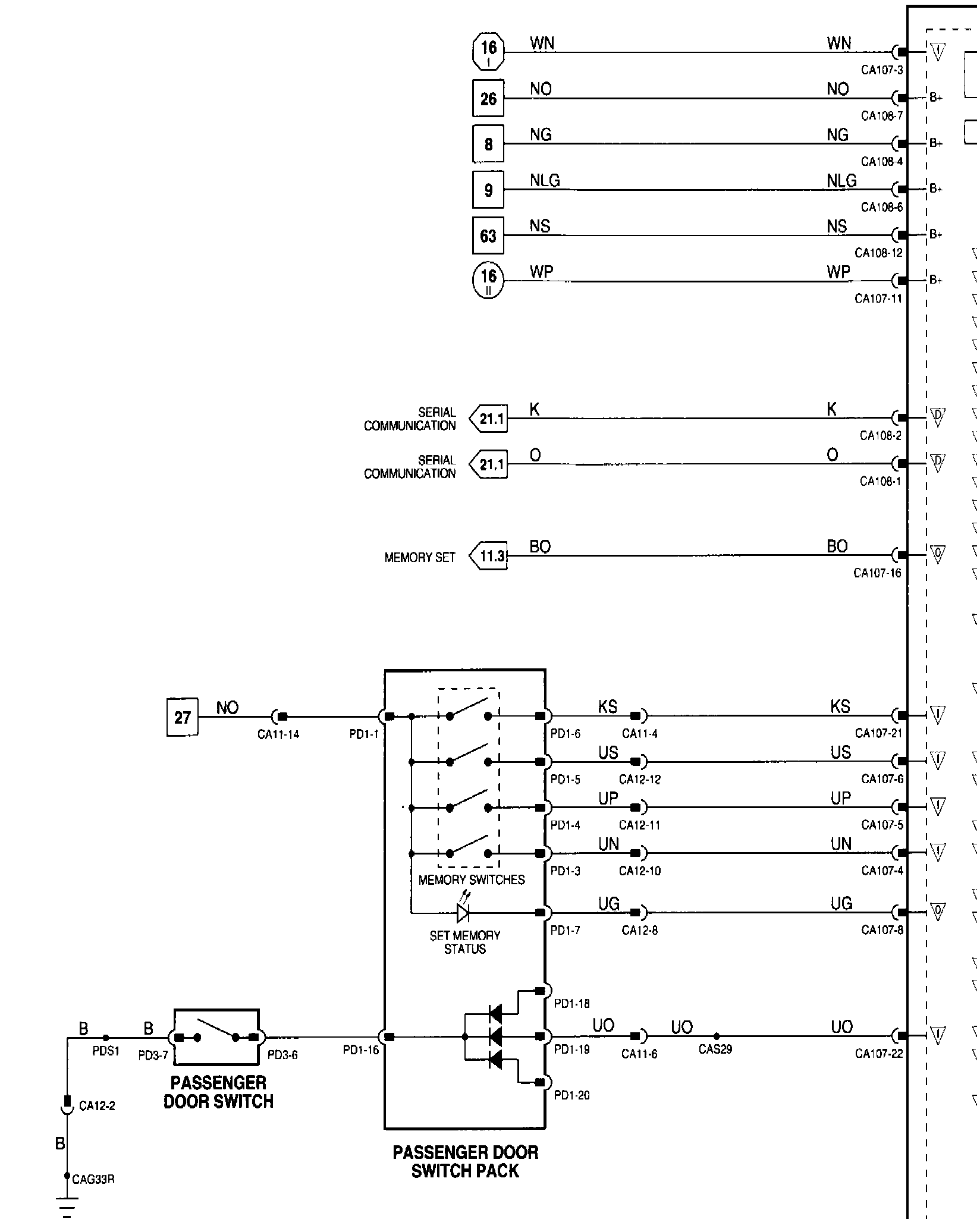

#,-#~w# �#l�#Passenger Seat-Memory, NAS/LWB:
Wiring Diagram
Passenger Seat-Memory, NAS/LWB: Components:
Component Informations

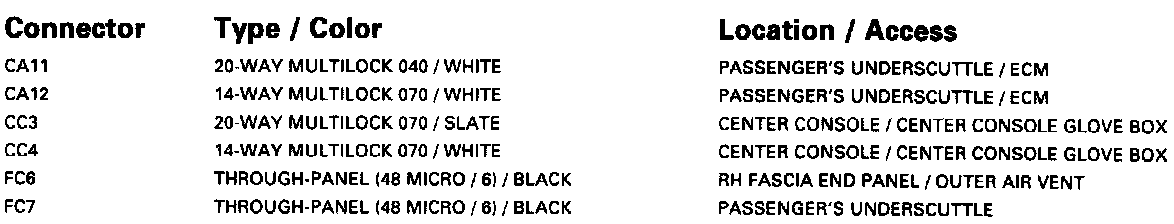

Passenger Seat-Memory, NAS/LWB: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information

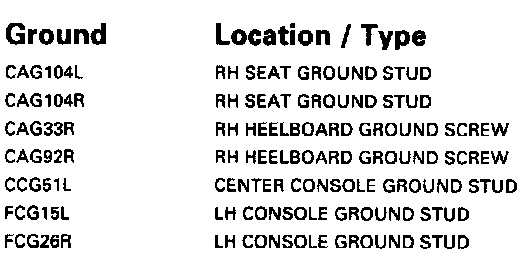

Passenger Seat-Memory, NAS/LWB: Grounds:
Ground Information

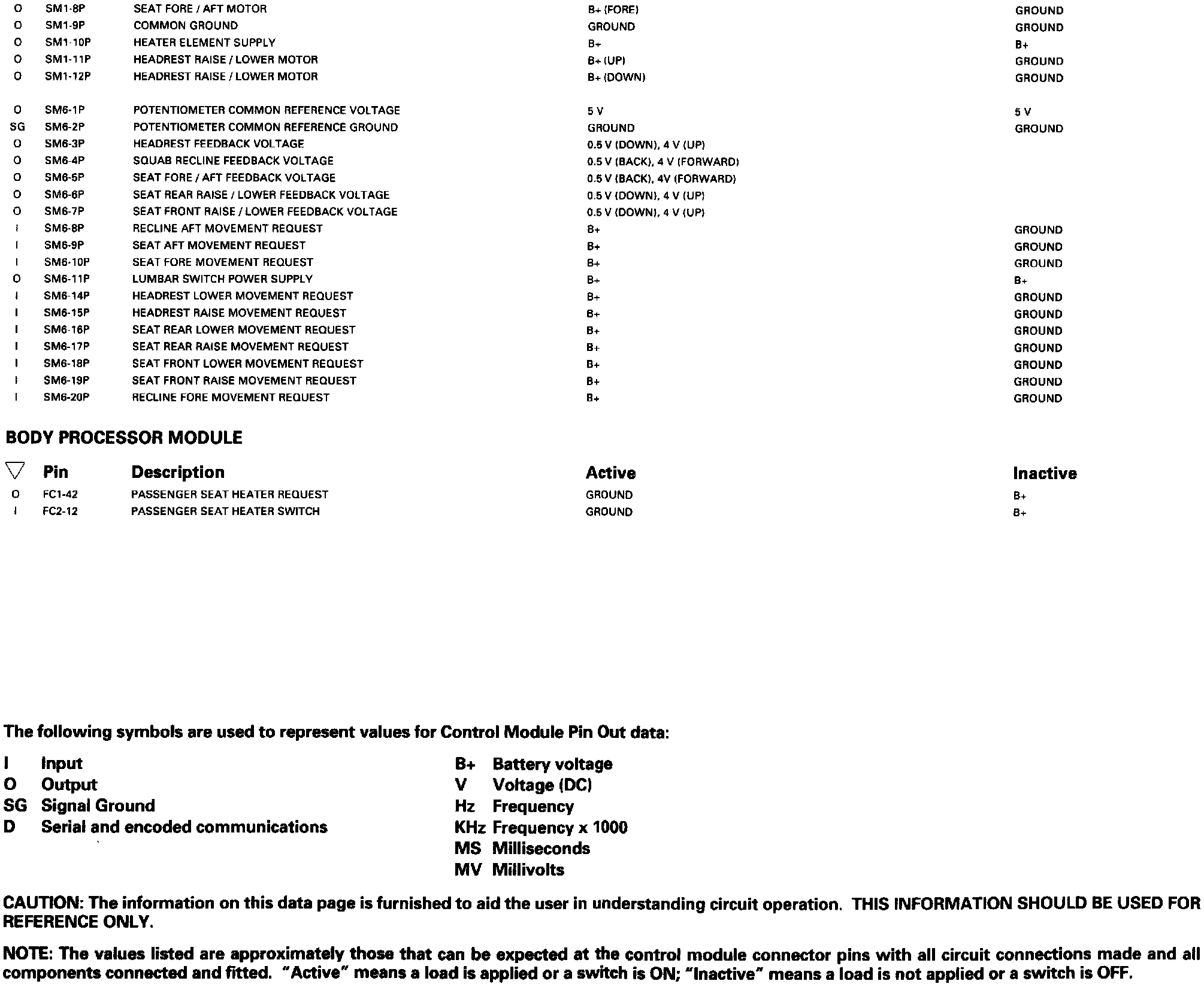

$r#Passenger Seat-Memory, NAS/LWB: Control Module Pin Out Information:
Control Module Pin out Information
