Electrical Diagrams

������ ����:

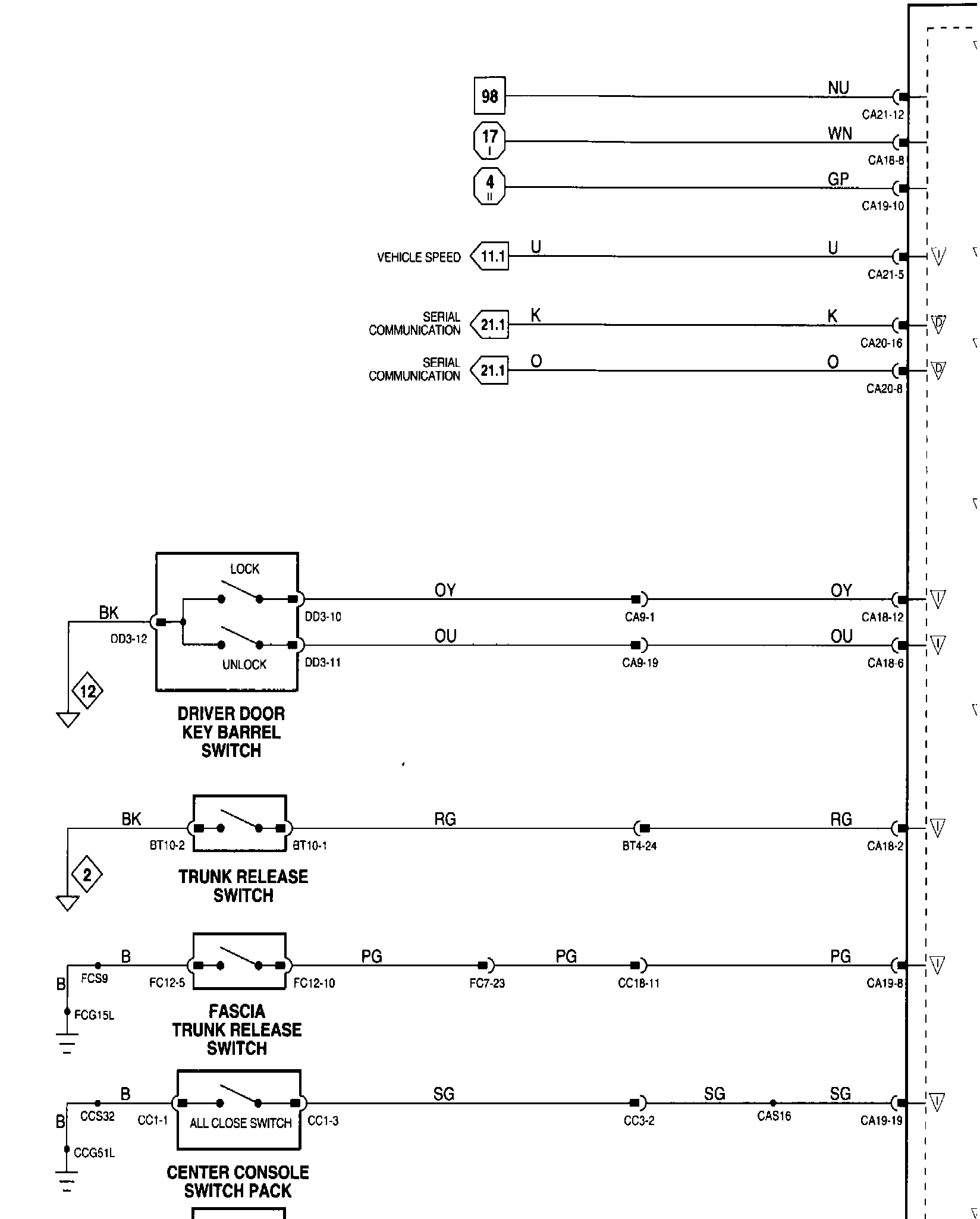

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Central Door Locking-NAS: Components:

Component Information

Central Door Locking-NAS: Relays:

Relay Information

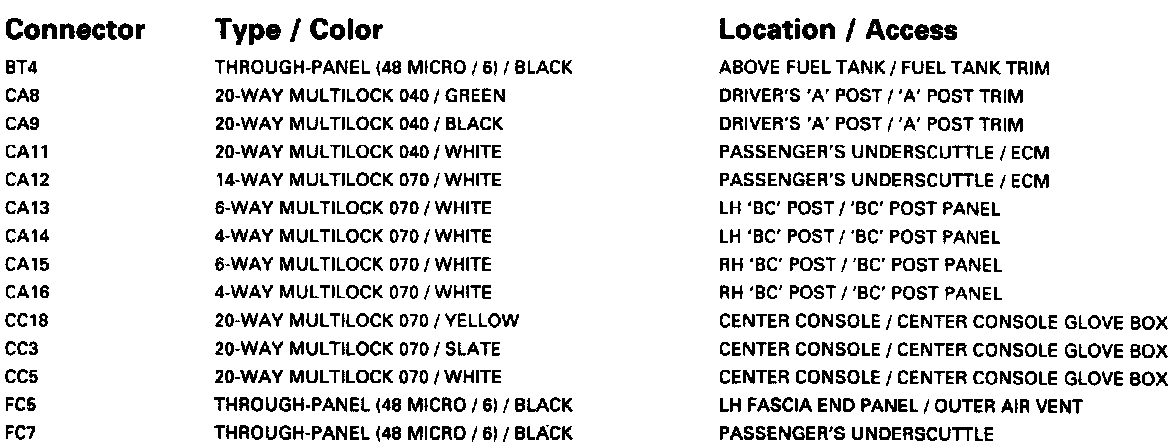

Central Door Locking-NAS: Harness-to-Harness Connectors:

Harness-To-Harness Connectors Informations

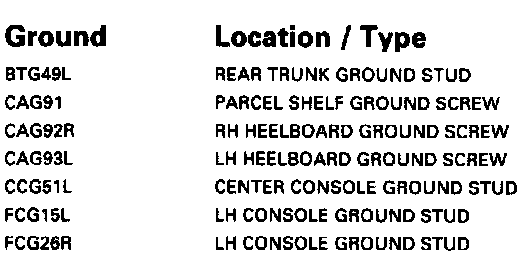

Central Door Locking-NAS: Grounds:

Ground Information

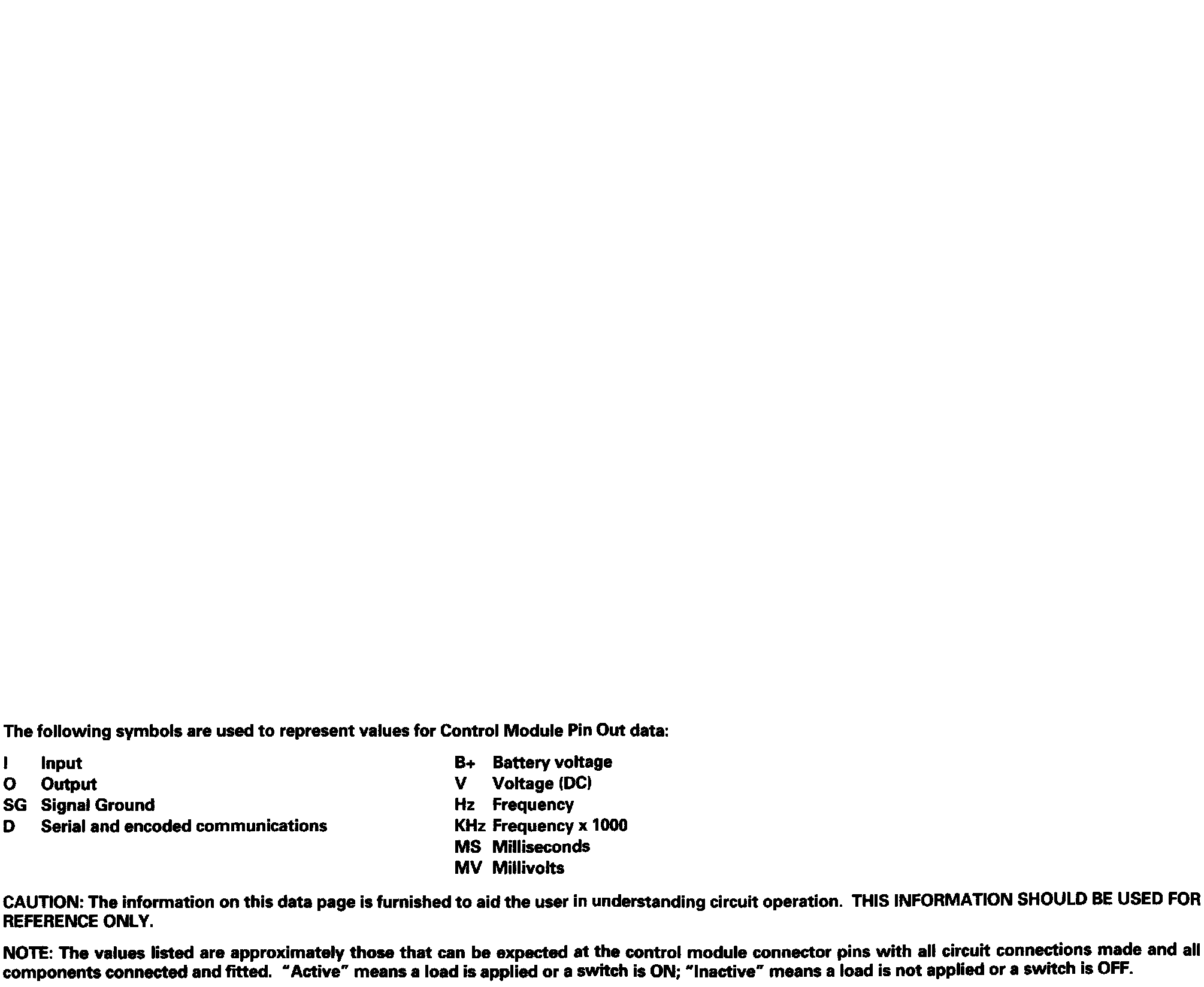

���Central Door Locking-NAS: Control Module Pin Out Information:

Control Module Pin Out Informations
