Shift Interlock, A/T

��^�_Gearshift Interlock:

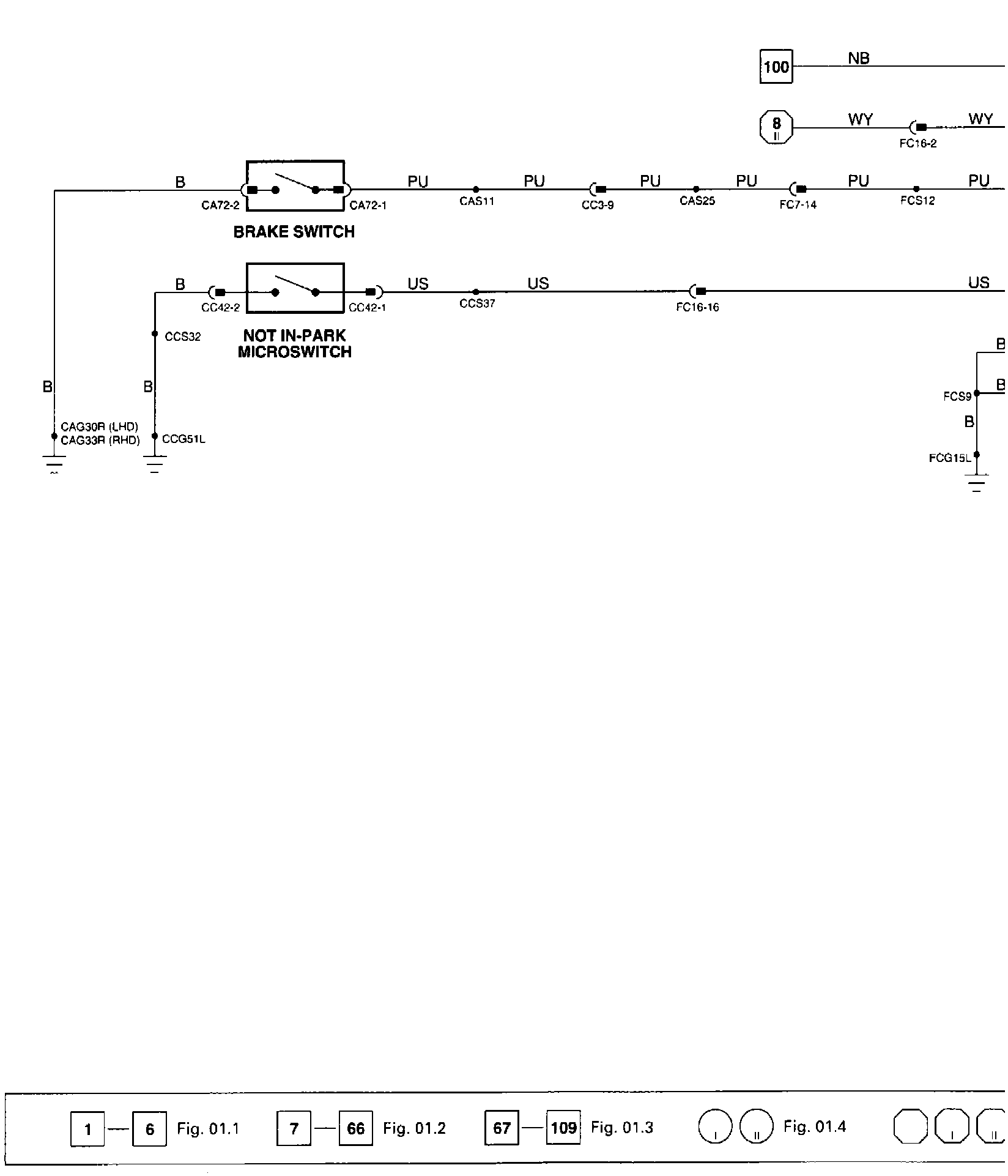

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

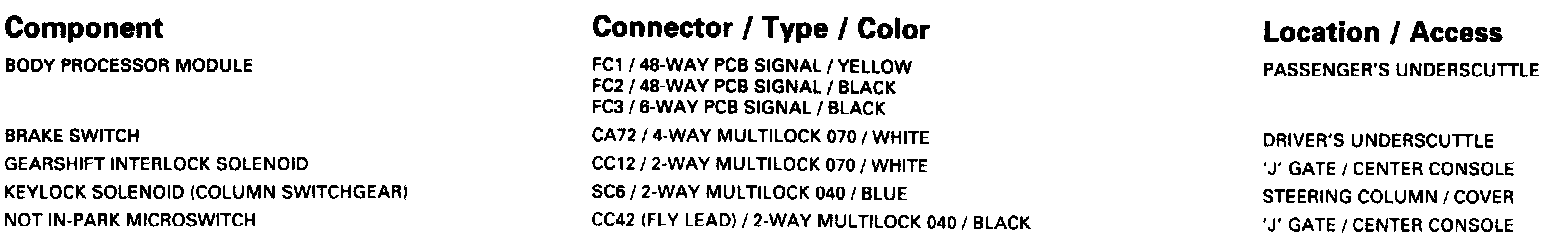

Gearshift Interlock: Components:

Components Informations

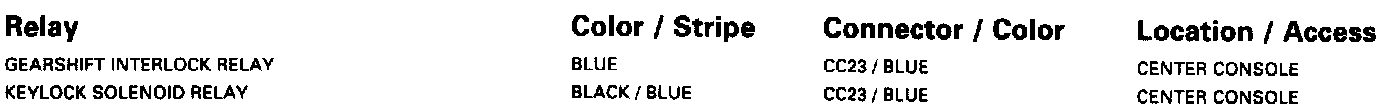

Gearshift Interlock: Relays:

Relay Informations

Gearshift Interlock: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

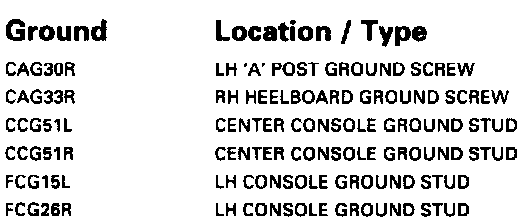

Gearshift Interlock: Grounds:

Grounds Informations

Gearshift Interlock: Control Module Pin Out Information:

Body Processor Module Informations
