System Diagram

D�b��bLc�c�3cStop Lamps; Reverse Lamps:

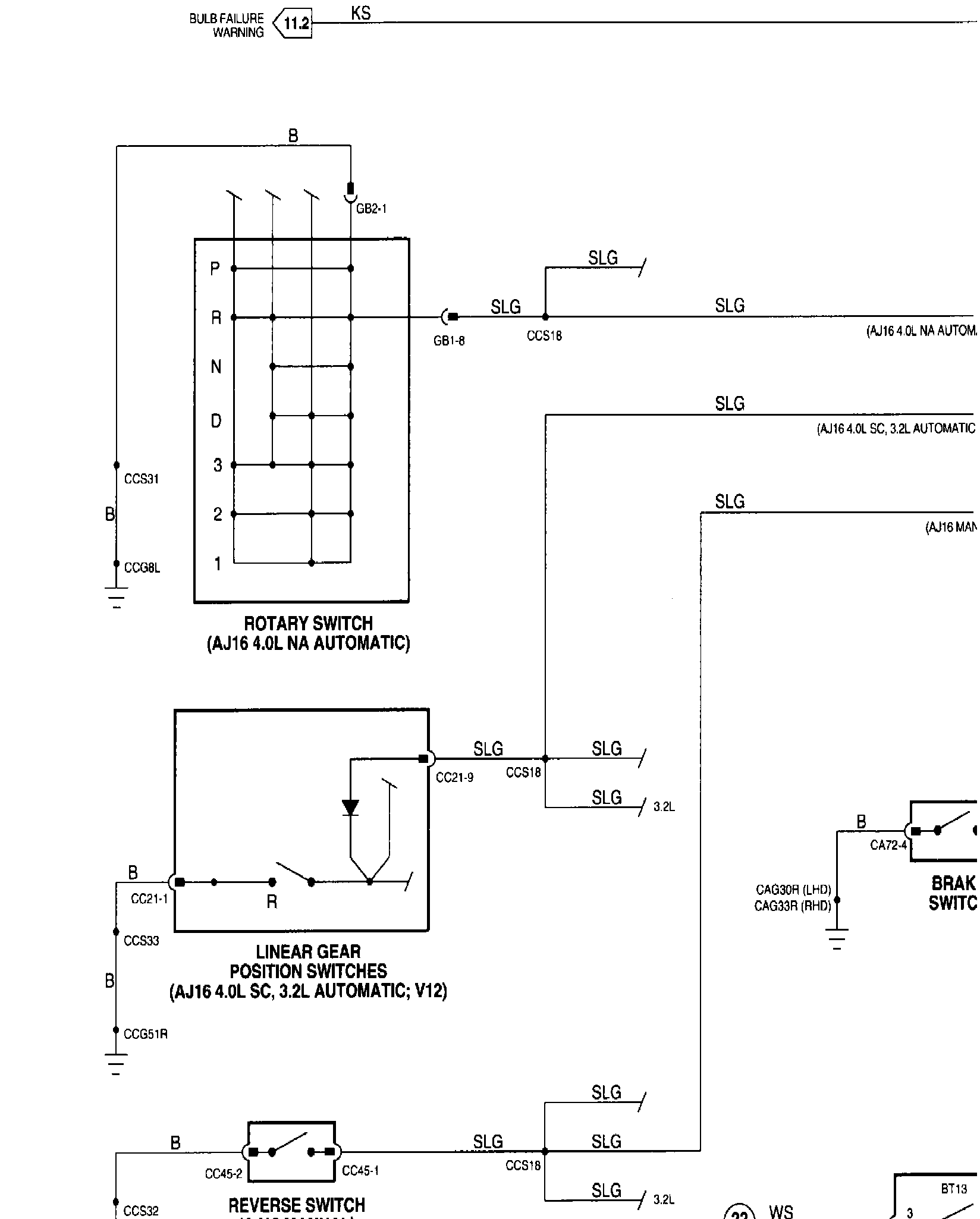

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

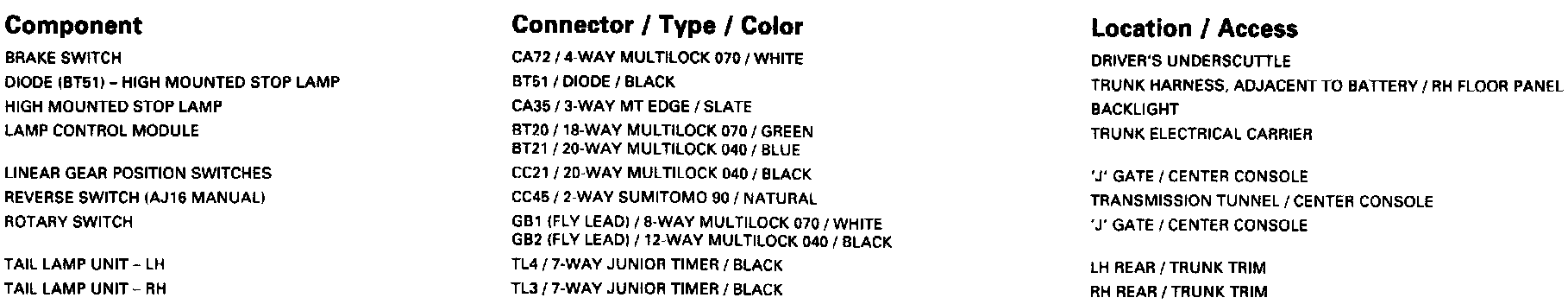

Stop Lamps; Reverse Lamps: Components:

Component Information

Stop Lamps; Reverse Lamps: Relays:

Relay Information

Stop Lamps; Reverse Lamps: Harness-To-Harness Connectors:

Harness-To-Harness Connectors

Stop Lamps; Reverse Lamps: Grounds:

Ground Information
