Home >> Jaguar >> 1997 >> XJ-6 (X300) L6-4.0L (AJ16) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Fig Number >> Fig 01.2

Fig 01.2

�M��M�N�-NHVNBattery Power Distribution-Heel Board Fuse Boxes:

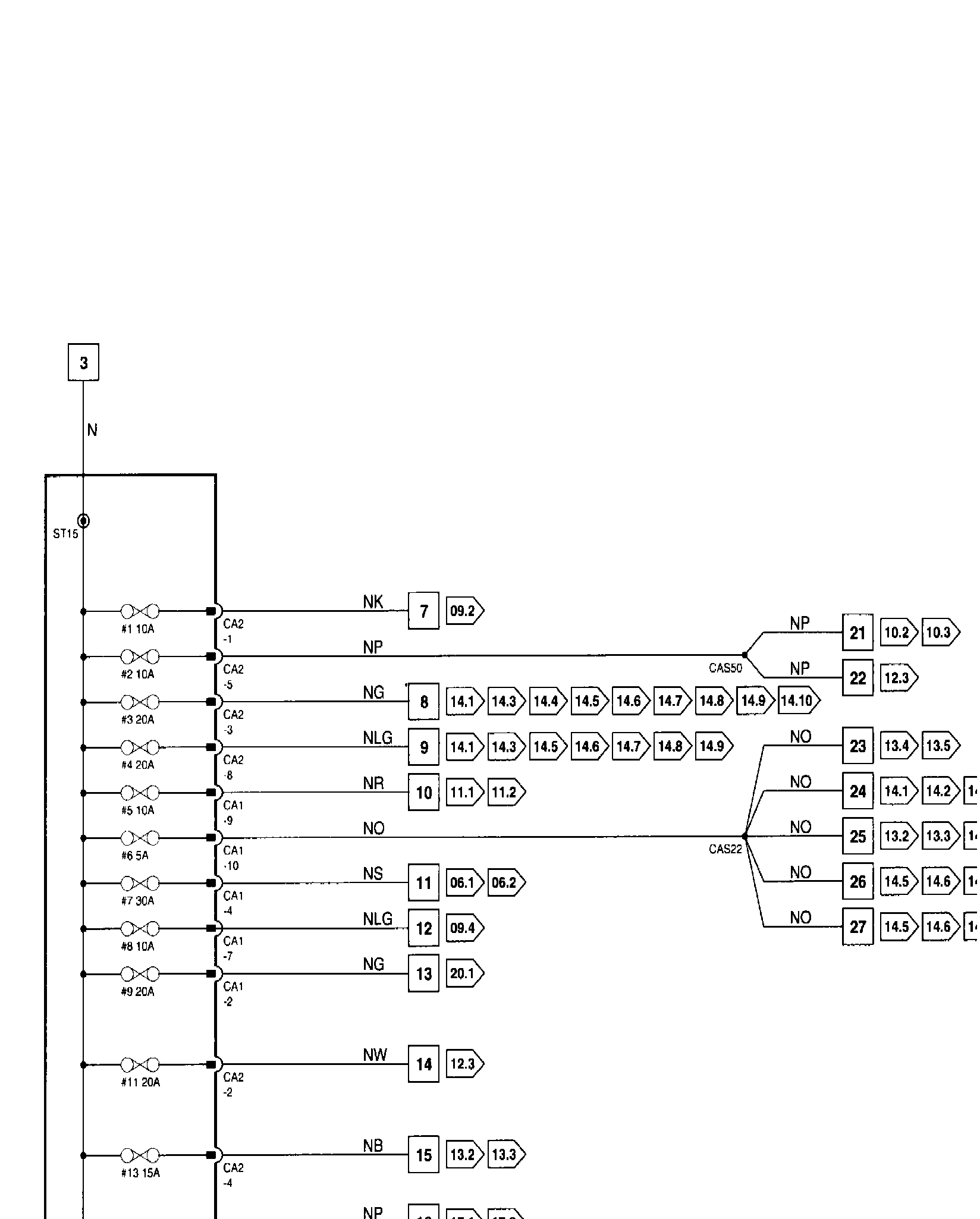

Wiring Diagram

Battery Power Distribution-Heel Board Fuse Boxes: Components:

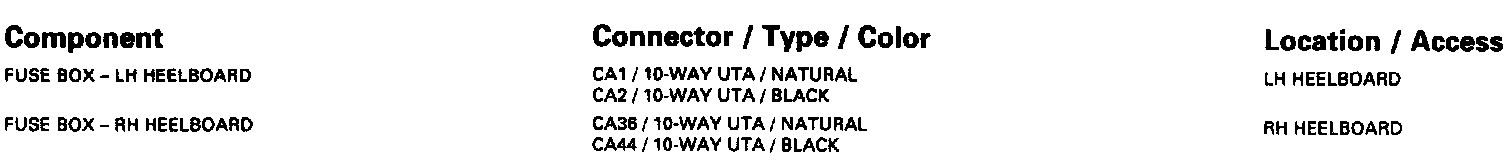

Component Informations

Battery Power Distribution-Heel Board Fuse Boxes: Harness-To-Harness Connectors:

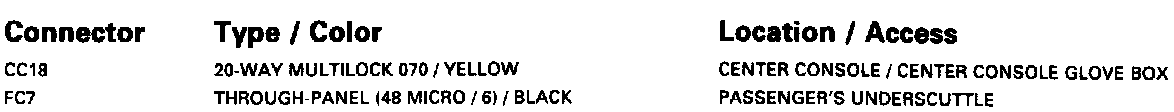

Harness-To-Harness Connector Information
