Fig 05.1

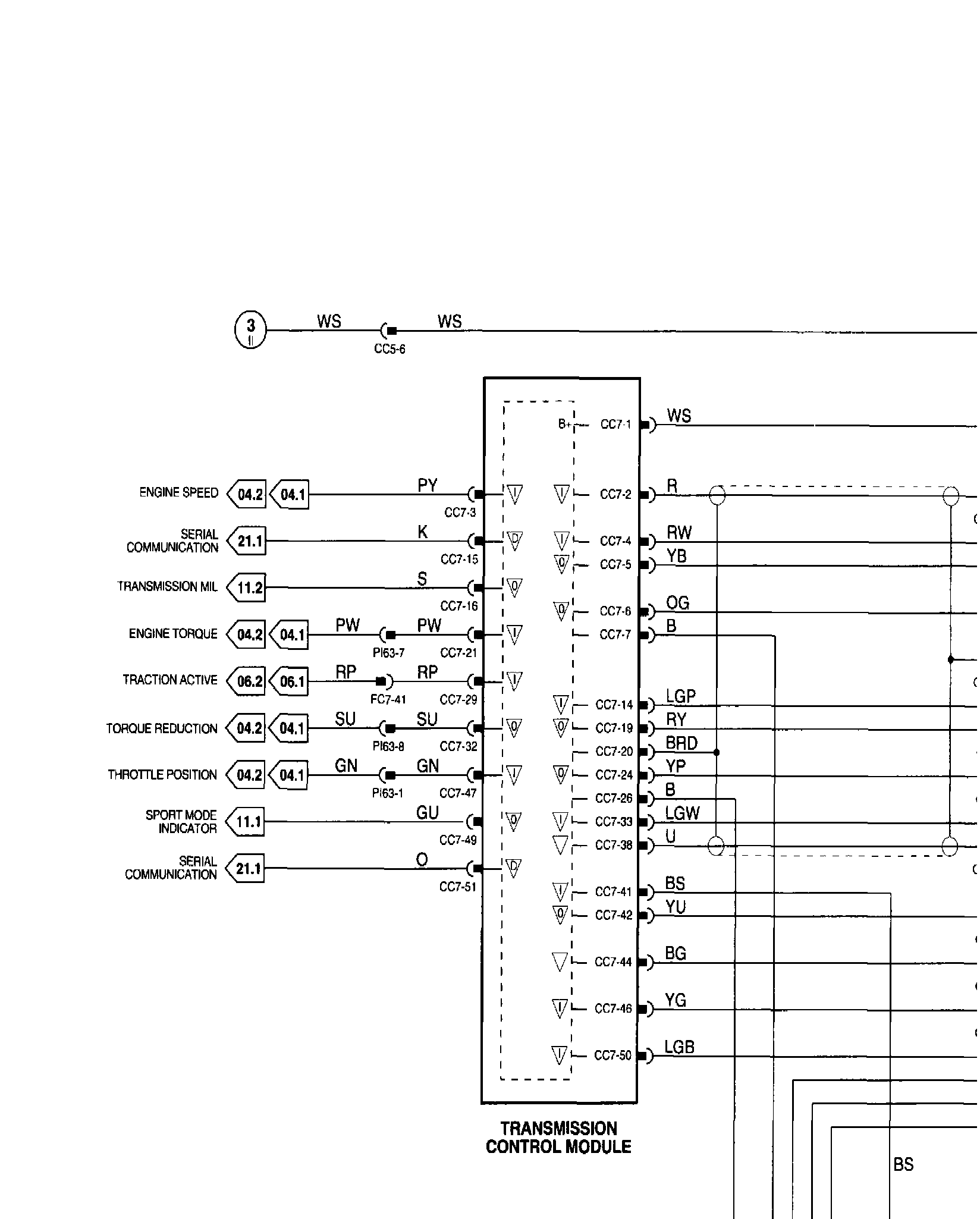

��j�j��j� k�%kAJ16 4.0L NA Automatic Transmission:
Wiring Diagram

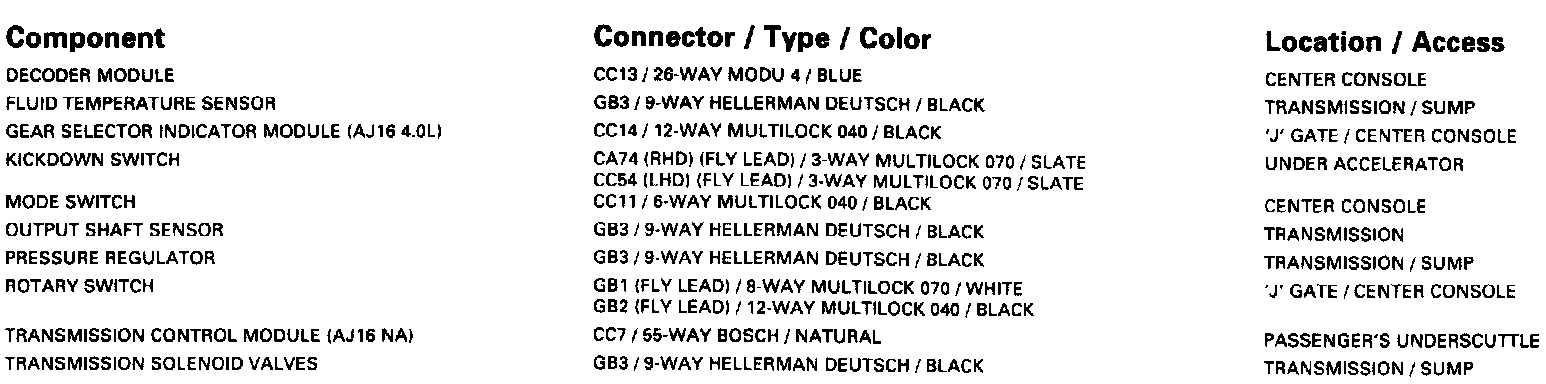

AJ16 4.0L NA Automatic Transmission: Components:
Component Informations

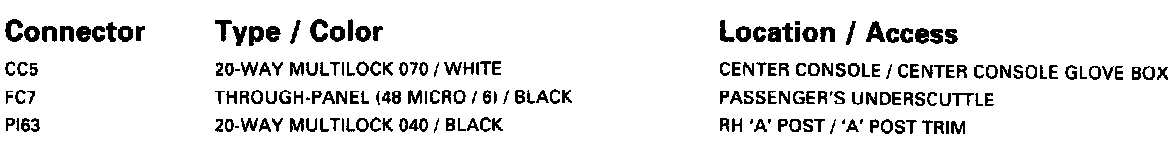

AJ16 4.0L NA Automatic Transmission: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information

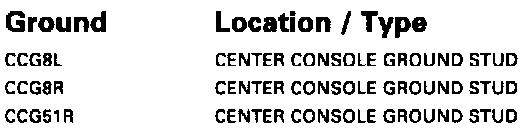

AJ16 4.0L NA Automatic Transmission: Grounds:
Ground Information

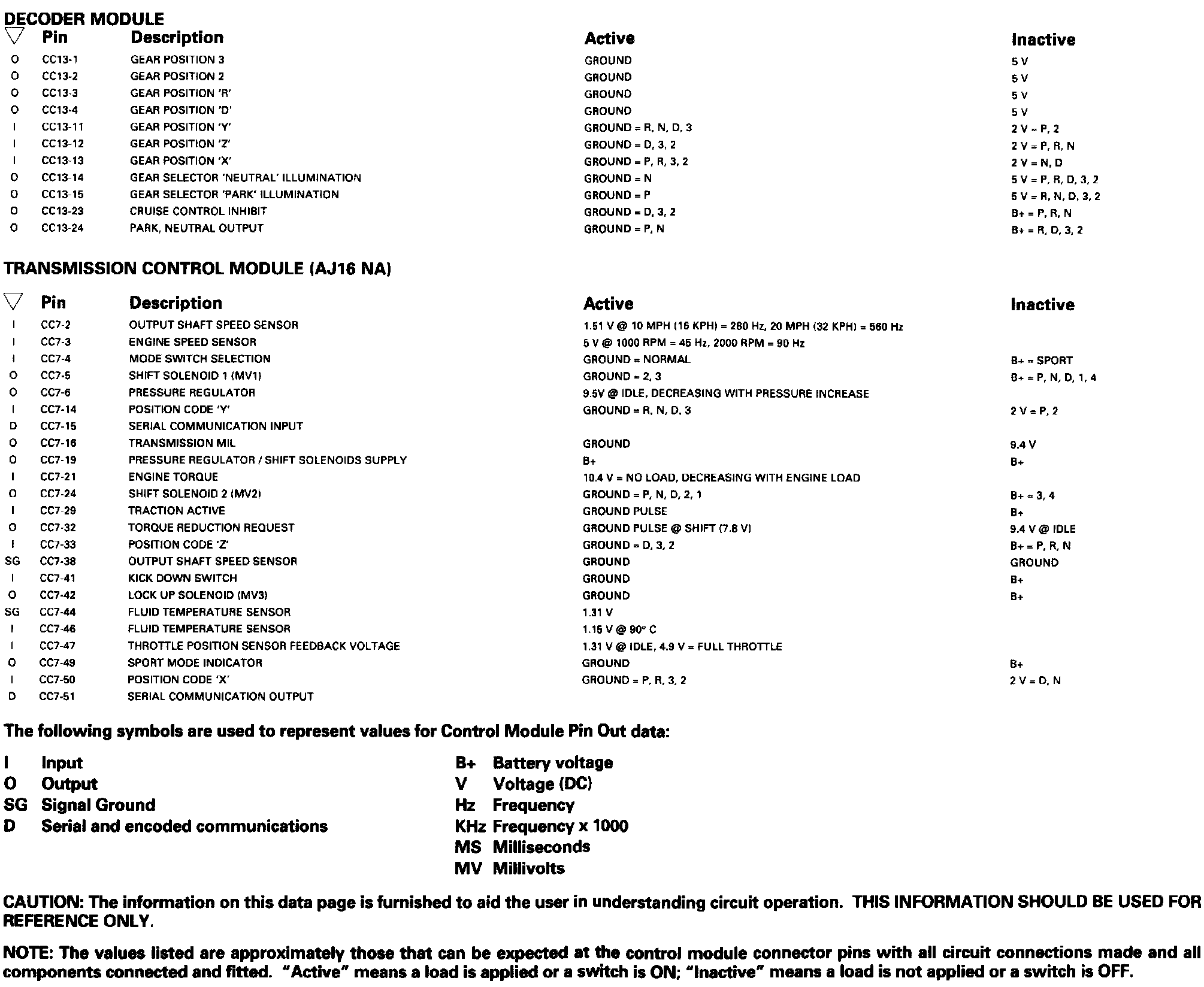

AJ16 4.0L NA Automatic Transmission: Control Module Pin Out Information:
Control Module Pin out Information
