Home >> Jaguar >> 1997 >> XJ-6 (X300) L6-4.0L (AJ16) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Fig Number >> Fig 10.3

Fig 10.3

Mx�`x �x%�x��xDimmer Controlled Lighting-LWB:




Wiring Diagram

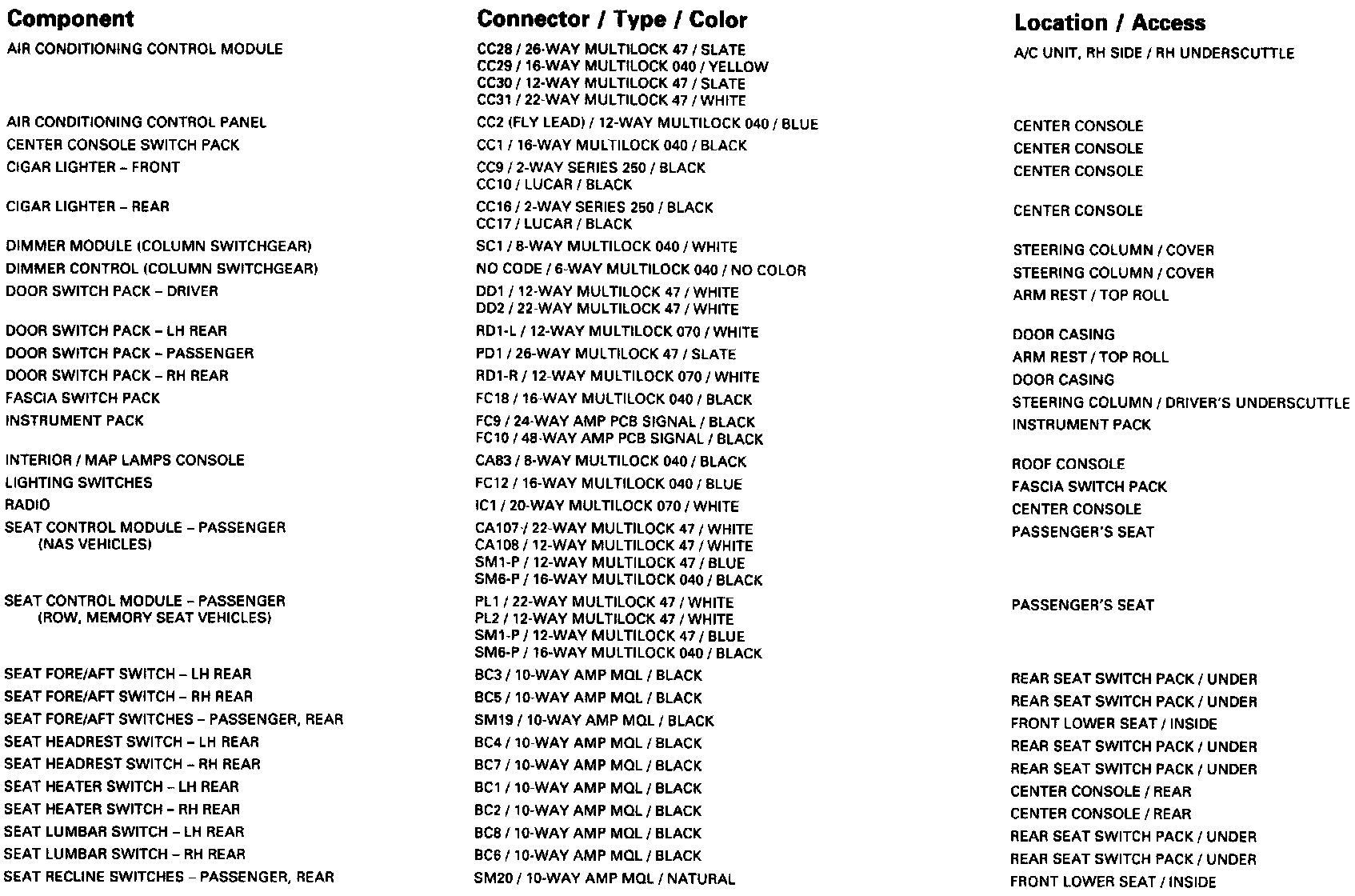

Dimmer Controlled Lighting-LWB: Components:




Component Informations

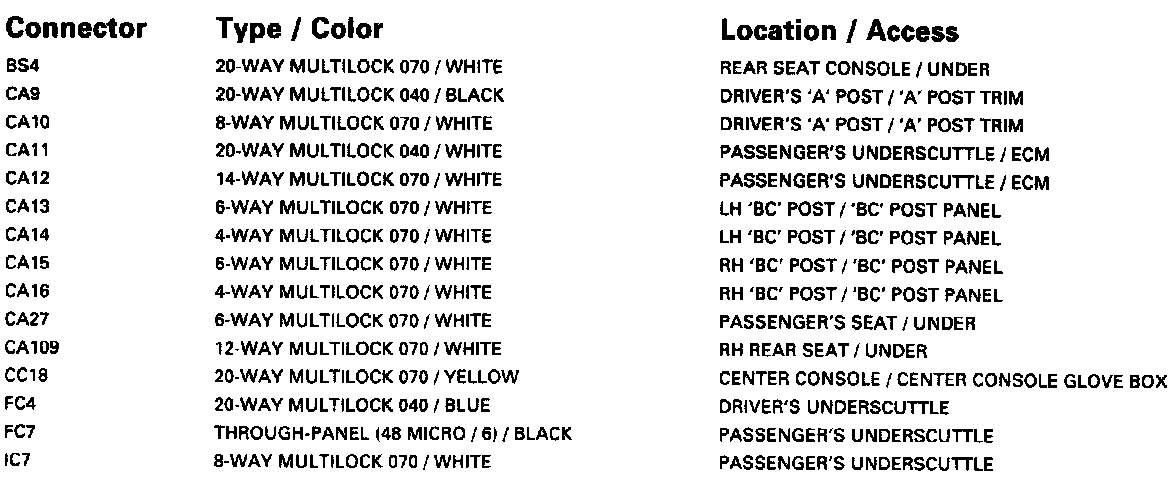

Dimmer Controlled Lighting-LWB: Harness-To-Harness Connectors:




Harness-To-Harness Connector Information

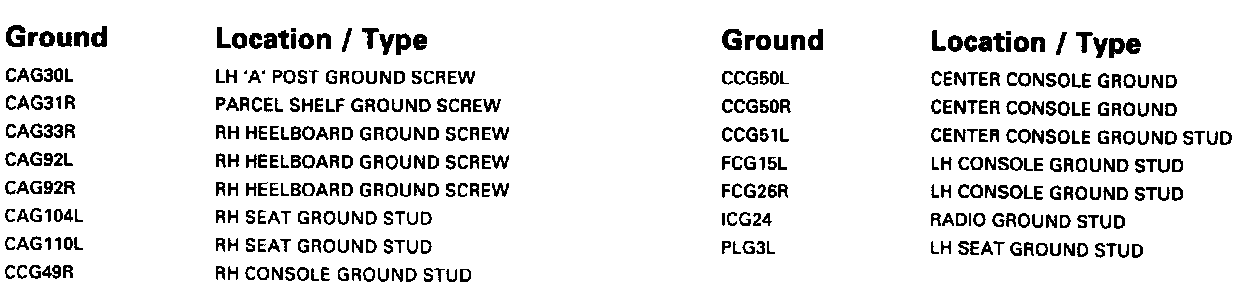

Dimmer Controlled Lighting-LWB: Grounds:




Ground Information

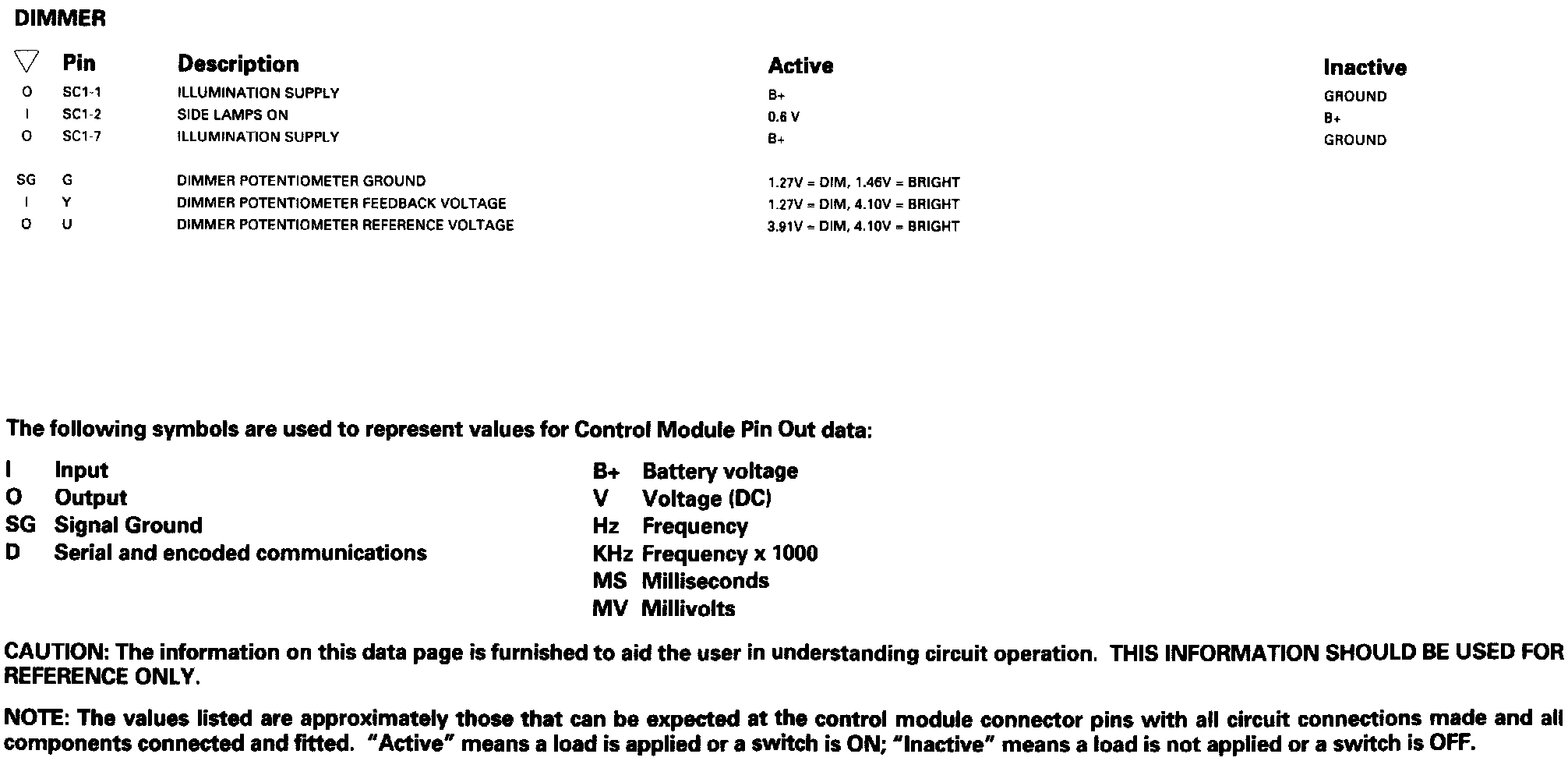

Dimmer Controlled Lighting-LWB: Control Module Pin Out Information:




Control Module Pin out Information
