Fig 12.1
������:��D�y`�AJ16 Climate Control Systems, Part1:

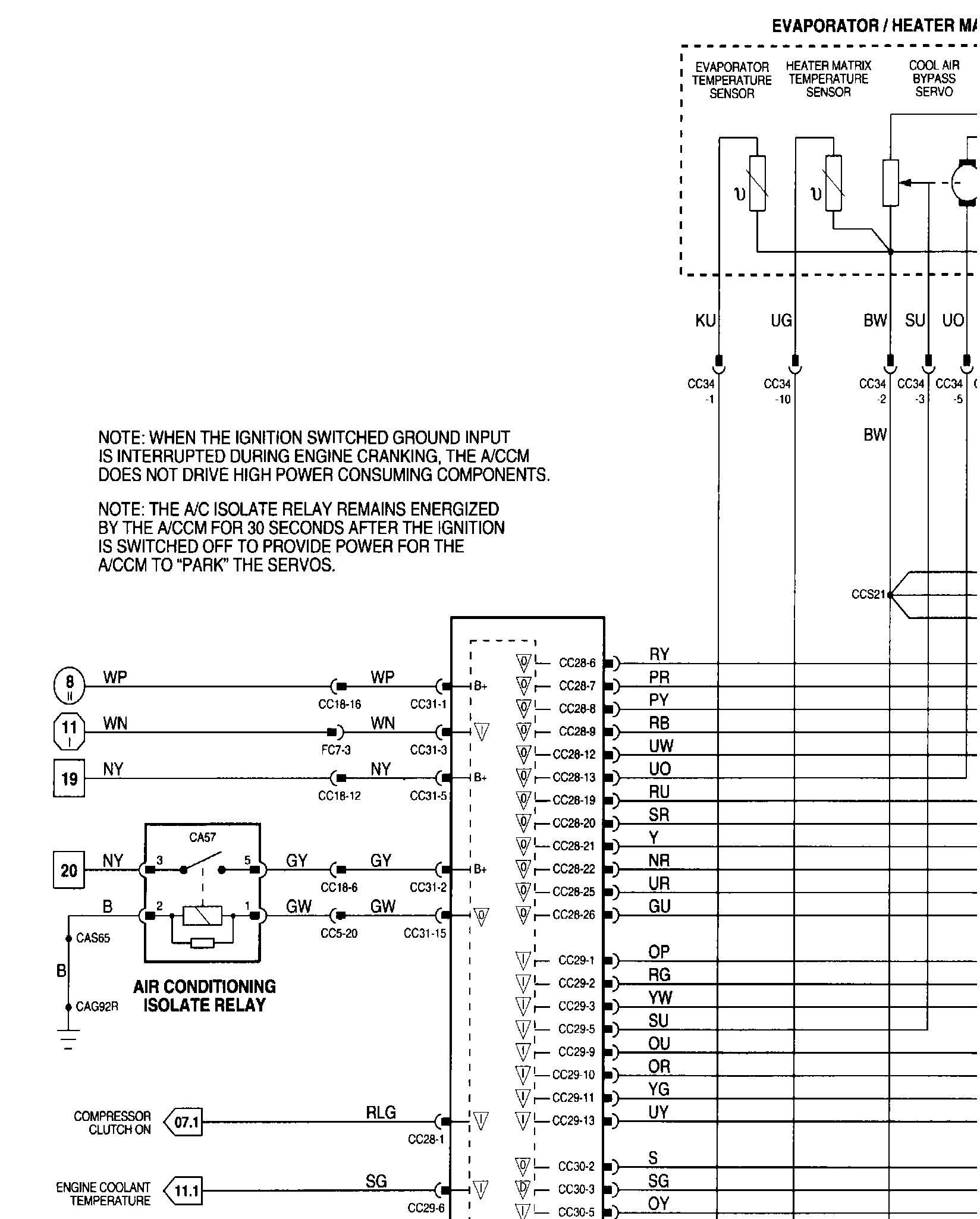

Wiring Diagram

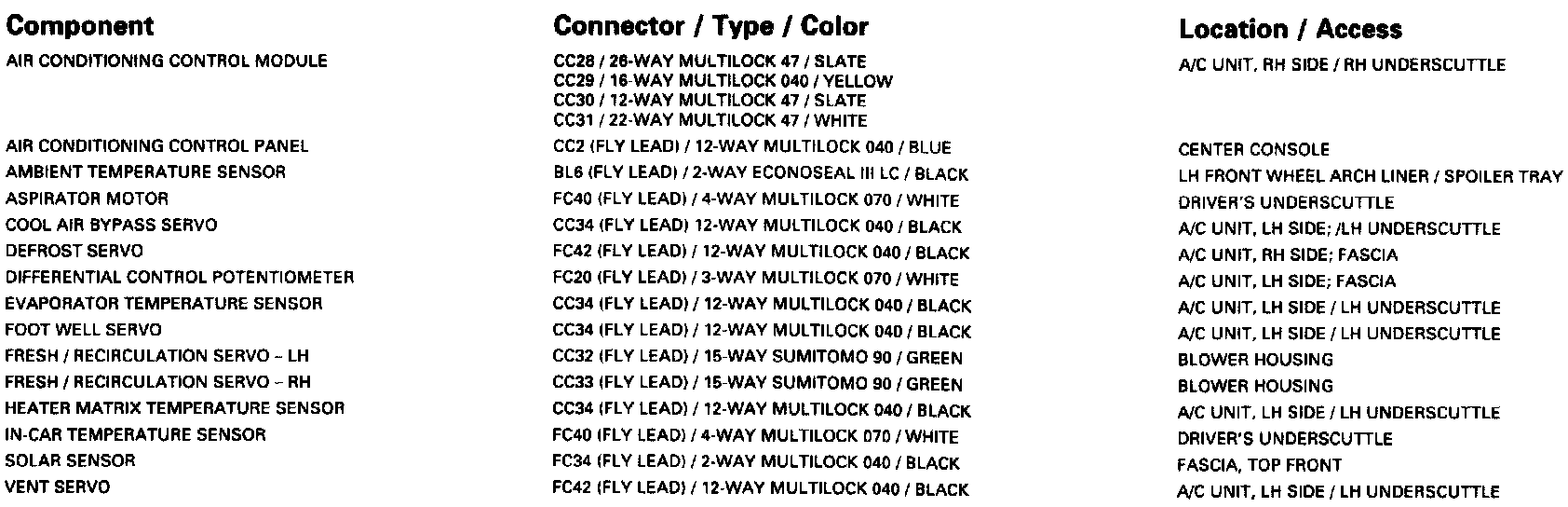

AJ16 Climate Control Systems, Part1: Components:
Component Informations
AJ16 Climate Control Systems, Part1: Relays:
Relay Informations
AJ16 Climate Control Systems, Part1: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information

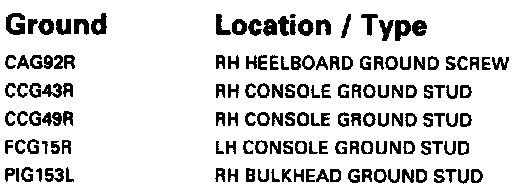

AJ16 Climate Control Systems, Part1: Grounds:
Ground Information

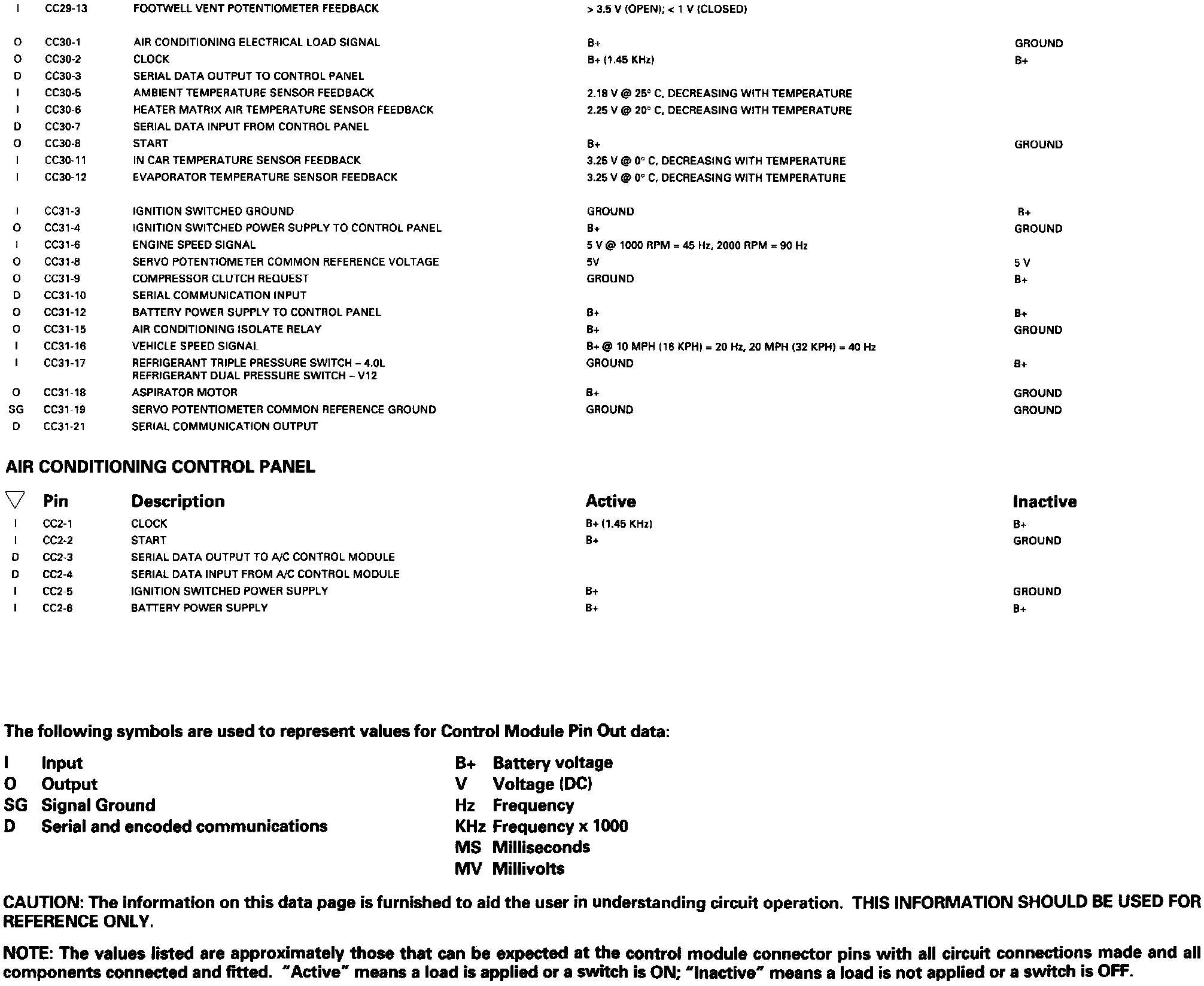

I+�AJ16 Climate Control Systems, Part1: Control Module Pin Out Information:
Control Module Pin out Information
