Fig 13.4
��4 �4 ��4 �5 �5 Mirror Movement-LHD:

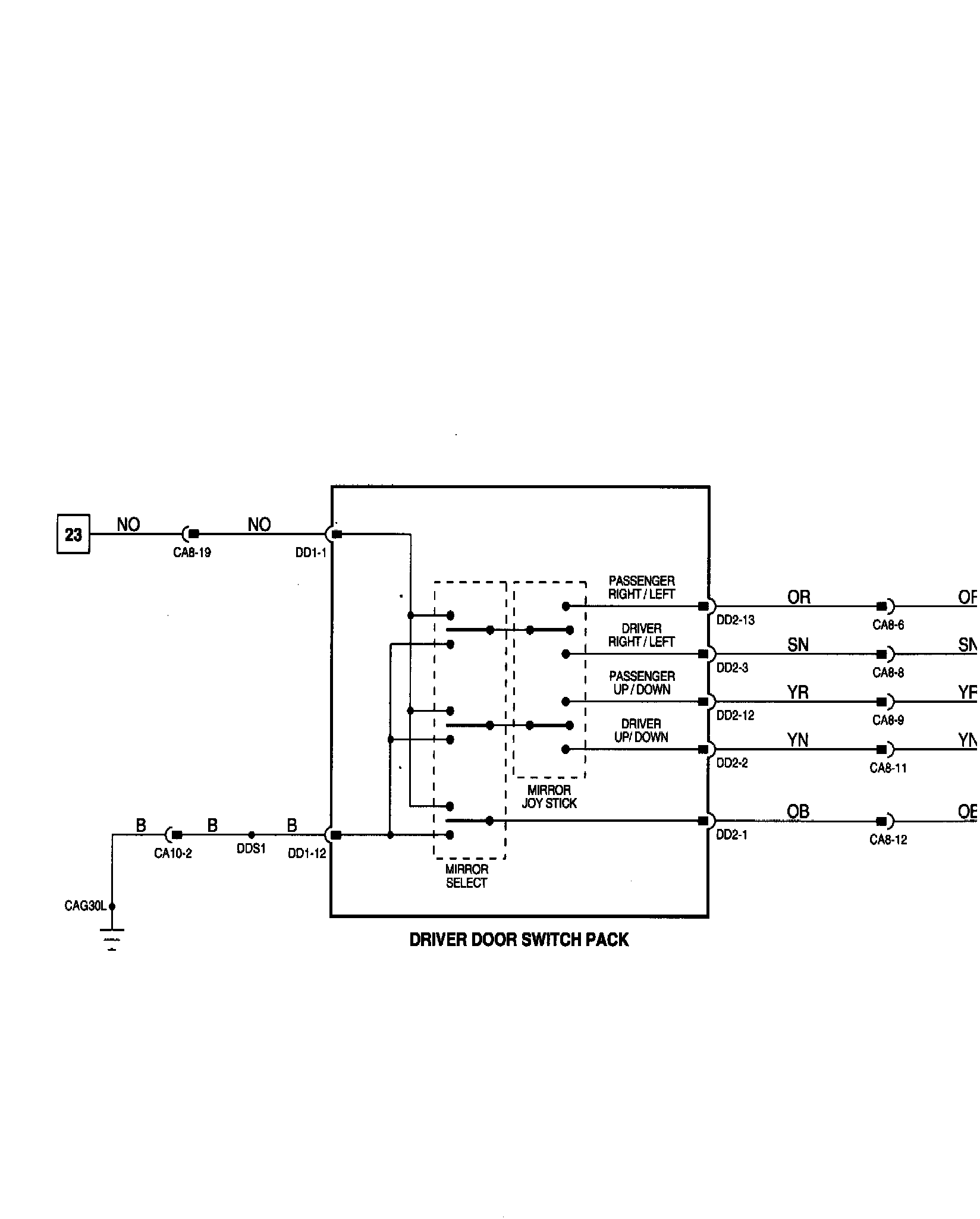

Wiring Diagram

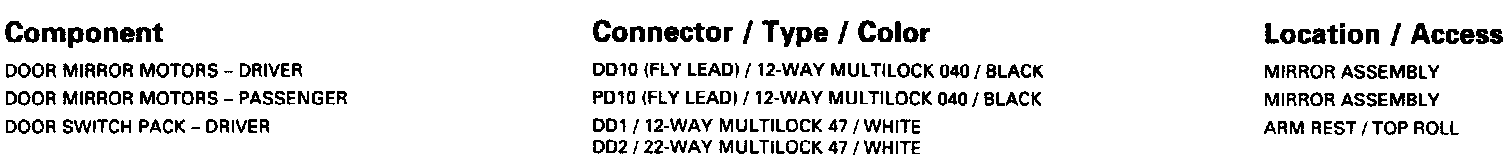

Mirror Movement-LHD: Components:
Component Informations

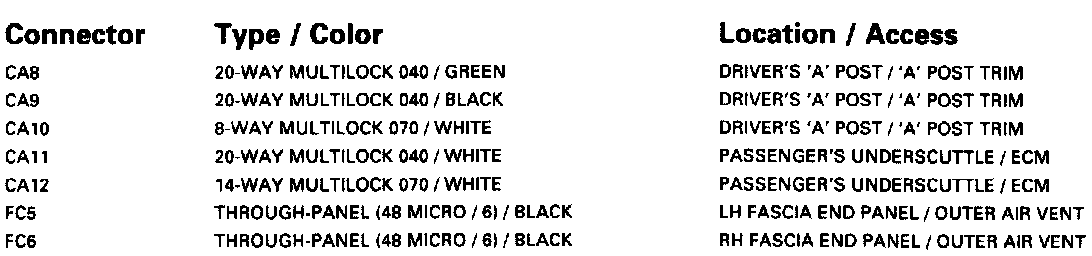

Mirror Movement-LHD: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information
Mirror Movement-LHD: Grounds:
Ground Information
