Fig 14.3
�X�"�u�"H��"h��"���"Driver Seat-Non-Memory:

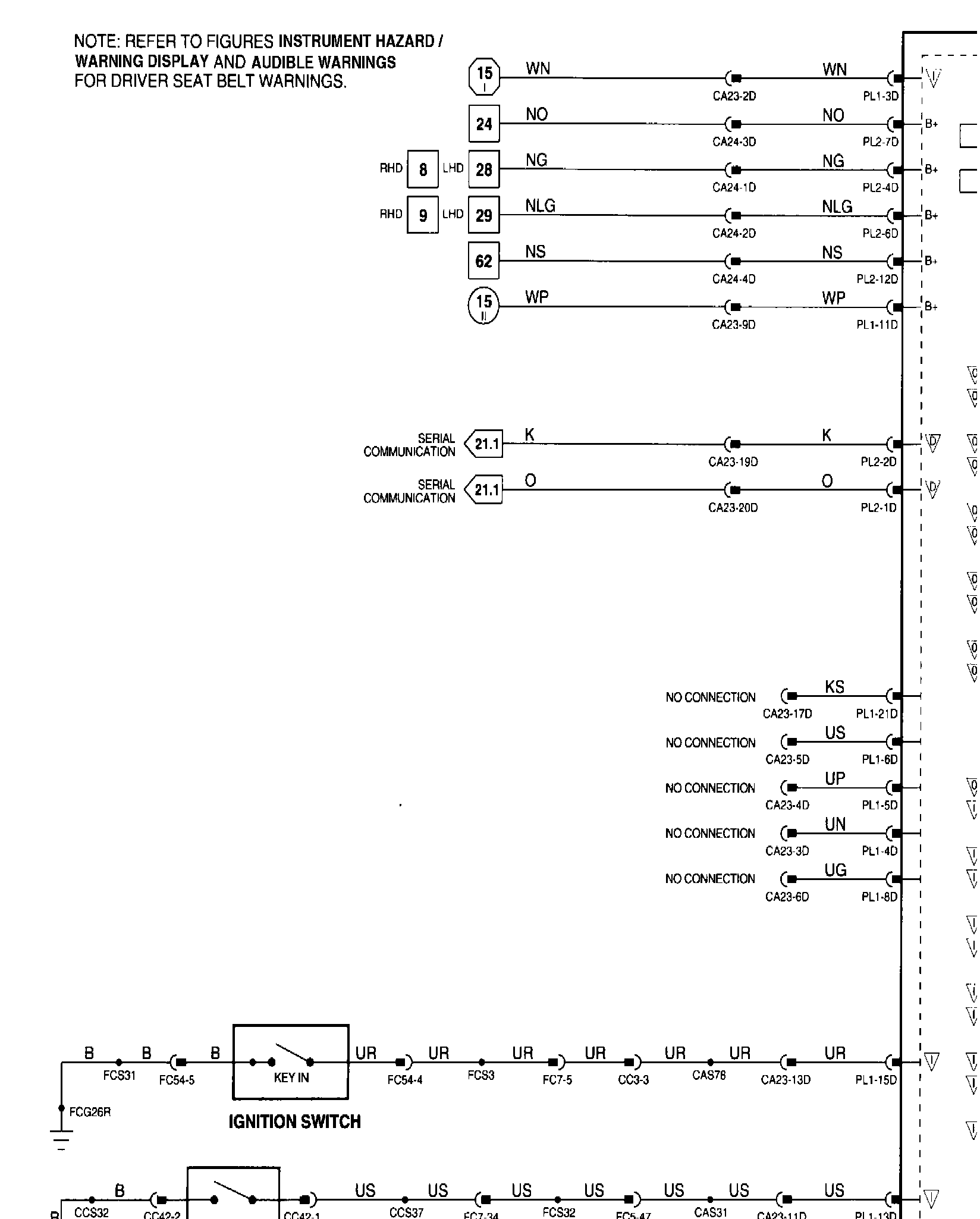

Wiring Diagram

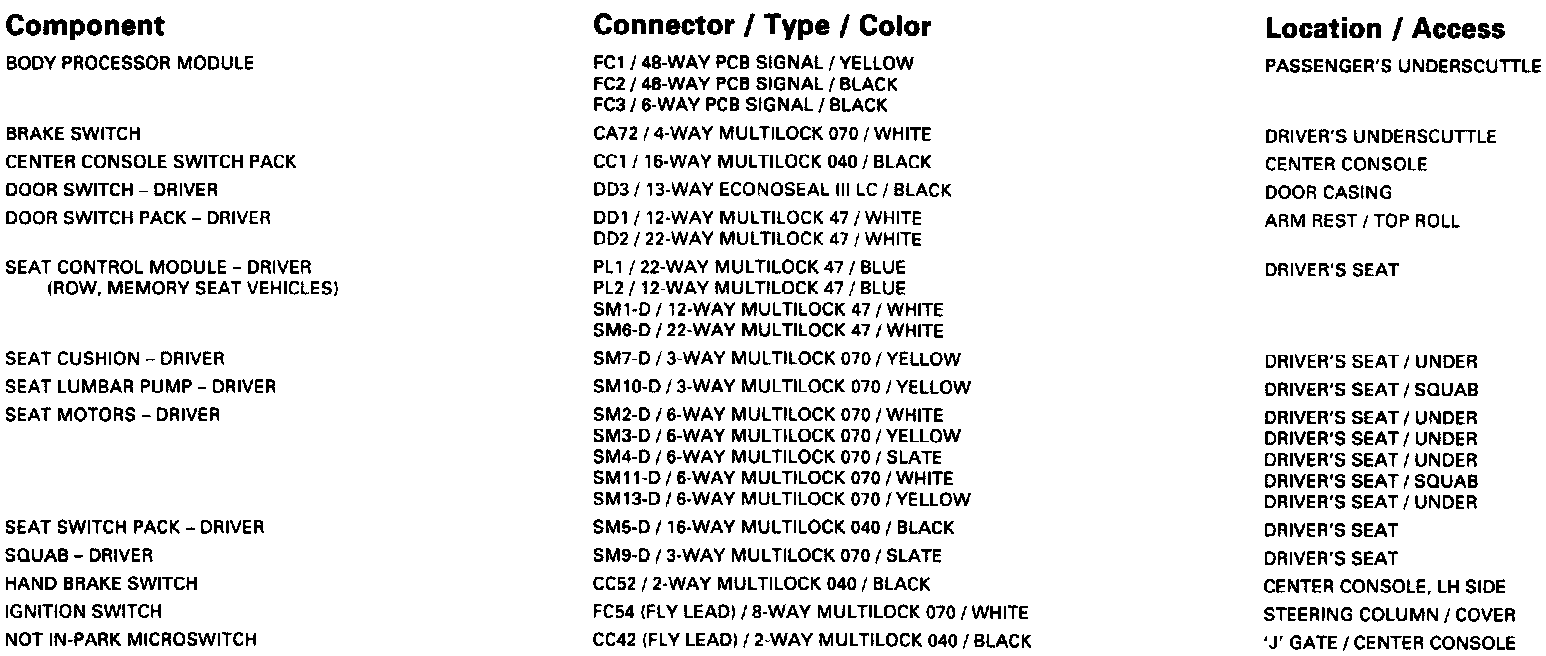

Driver Seat-Non-Memory: Components:
Component Informations

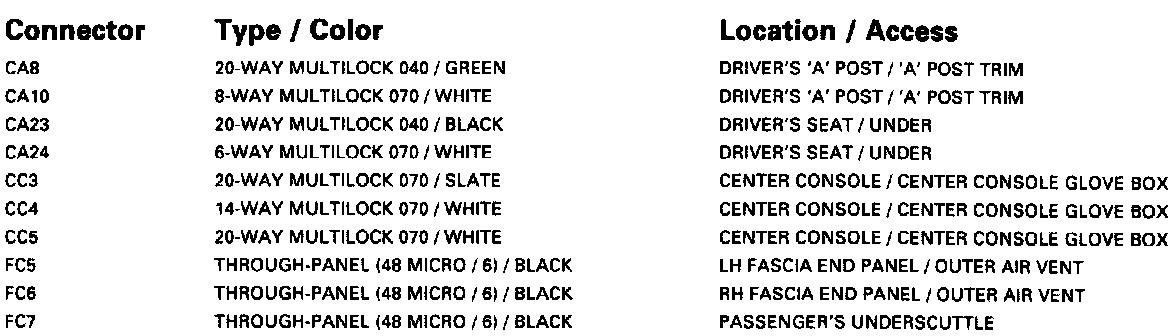

Driver Seat-Non-Memory: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information

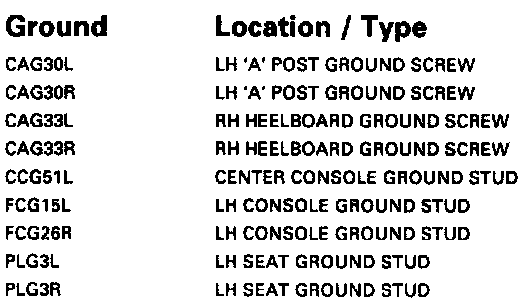

Driver Seat-Non-Memory: Grounds:
Ground Information

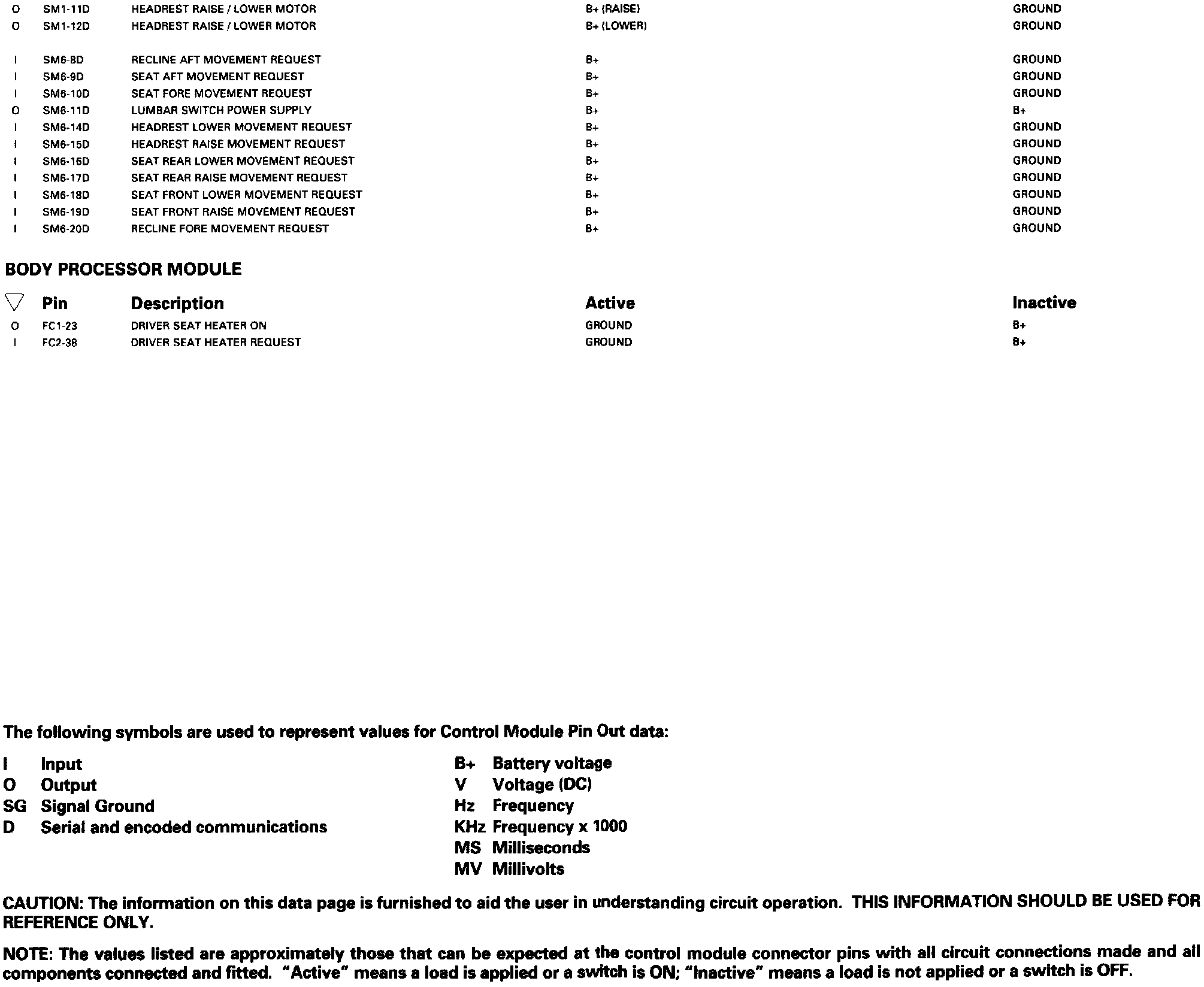

���"Driver Seat-Non-Memory: Control Module Pin Out Information:
Control Module Pin out Information
