Fig 14.4
���"��"`��"w��"���"Driver Seat-Raise/Lower Only:

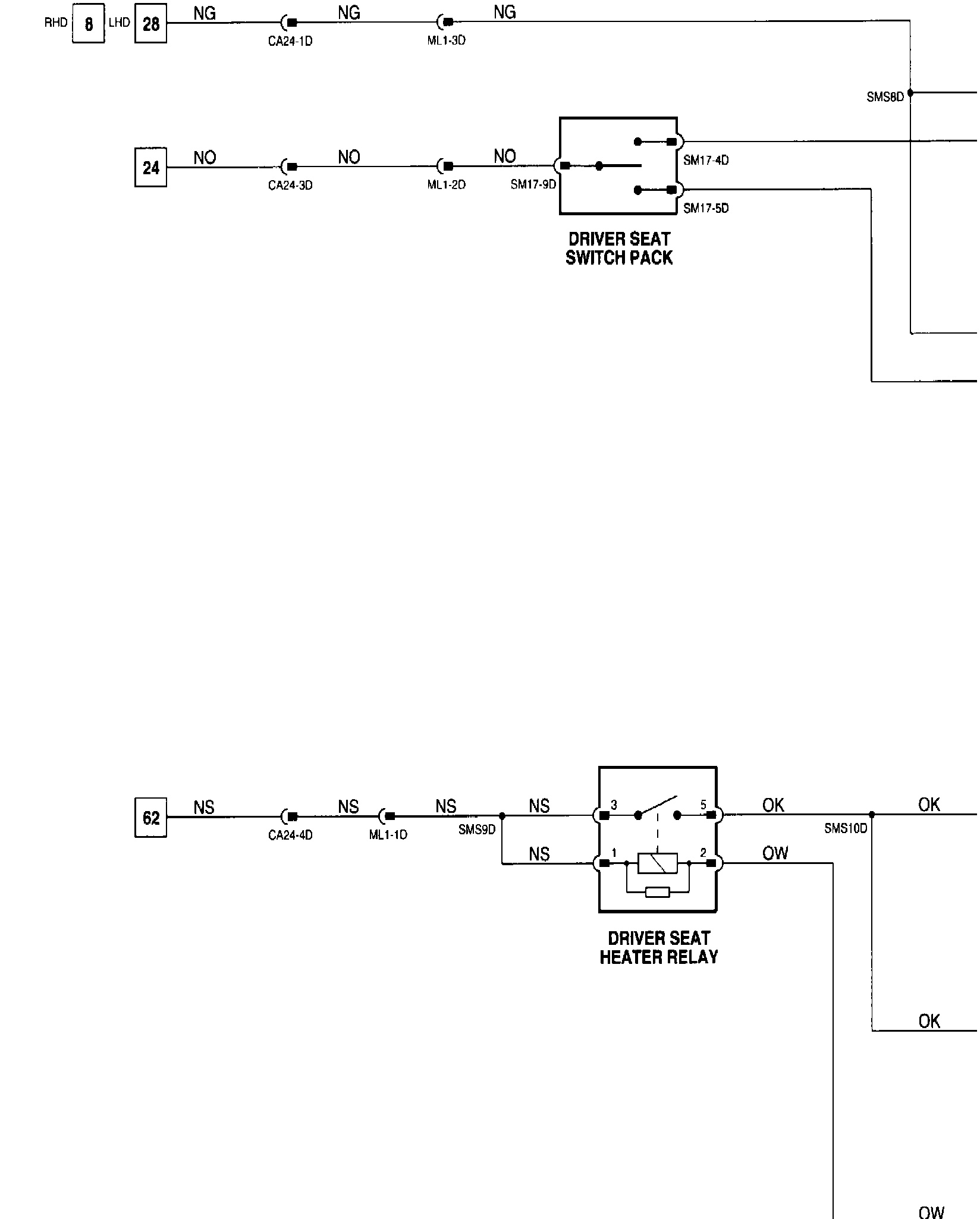

Wiring Diagram

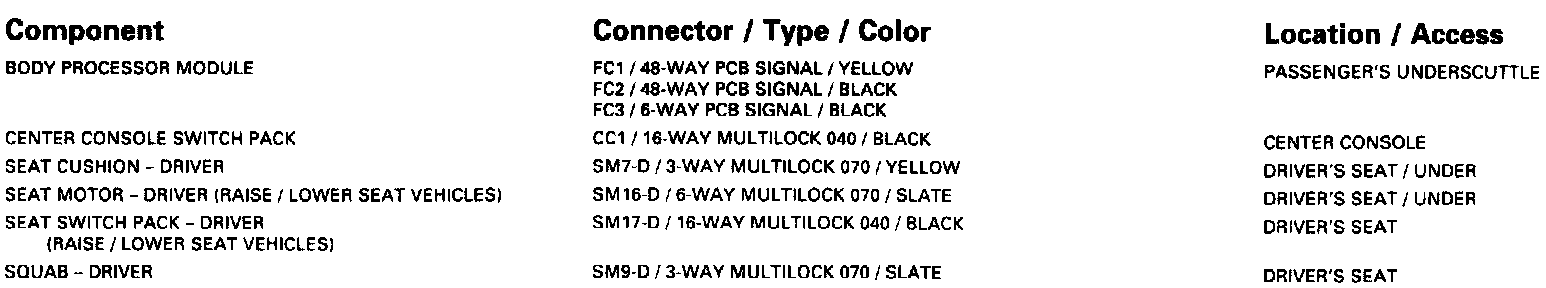

Driver Seat-Raise/Lower Only: Components:
Component Informations

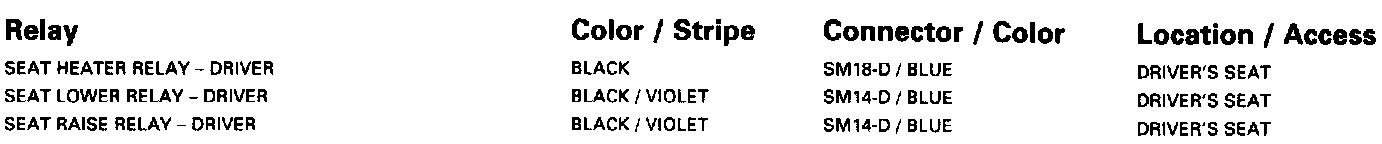

Driver Seat-Raise/Lower Only: Relays:
Relay Informations
Driver Seat-Raise/Lower Only: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information
Driver Seat-Raise/Lower Only: Grounds:
Ground Information

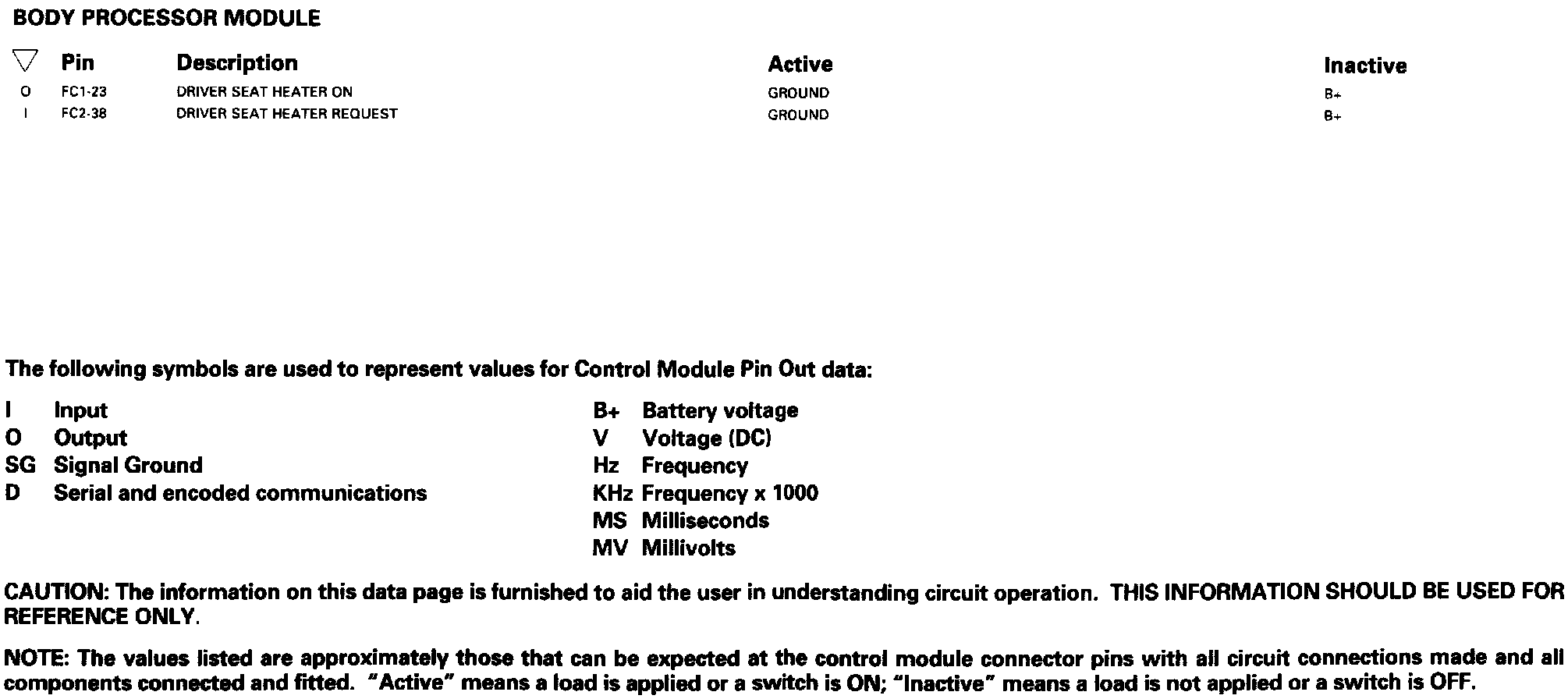

Driver Seat-Raise/Lower Only: Control Module Pin Out Information:
Control Module Pin out Information
