Fig 14.7
�} #�� #�� #|� #D #Passenger Seat-Memory, NAS/SWB:
Wiring Diagram

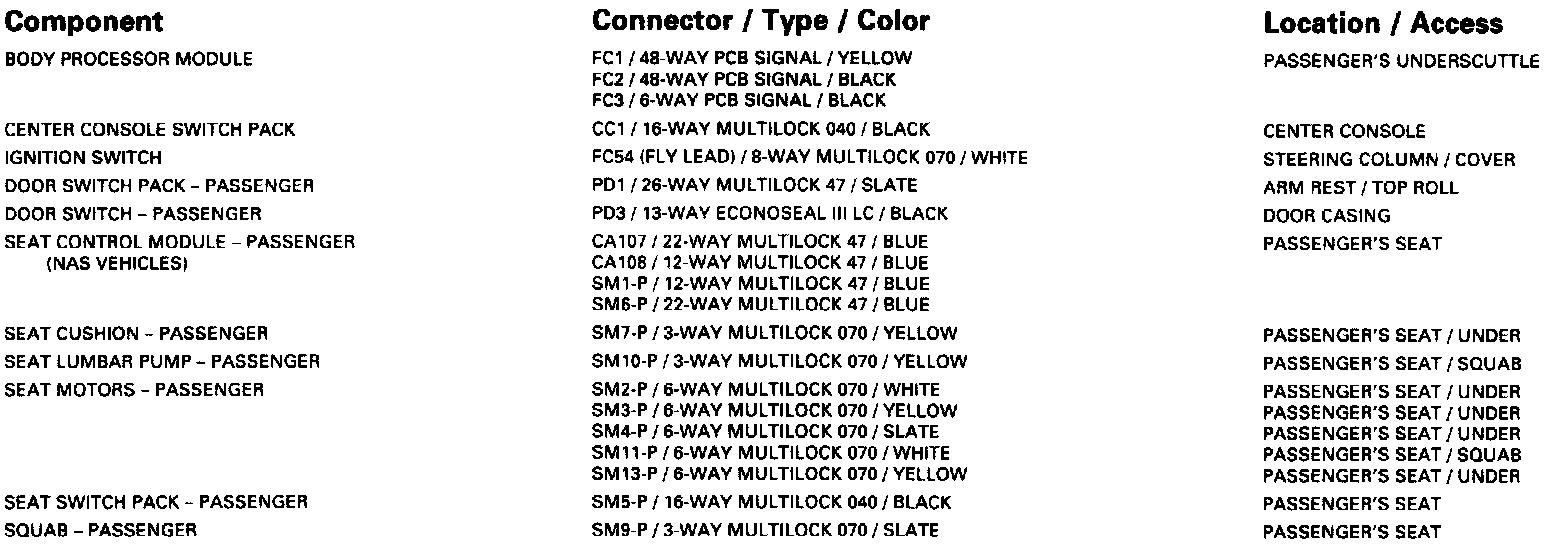

Passenger Seat-Memory, NAS/SWB: Components:
Component Informations

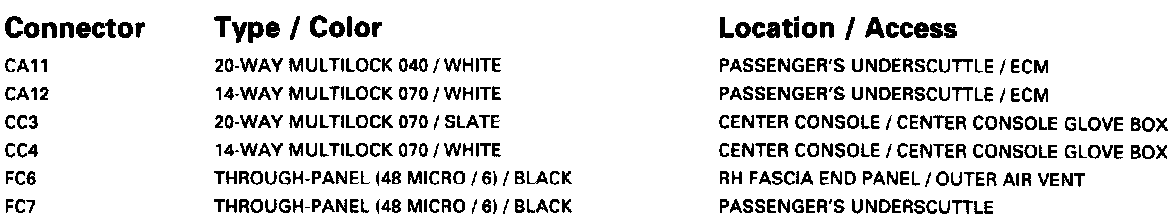

Passenger Seat-Memory, NAS/SWB: Harness-To-Harness Connectors:
Harness-To-Harness Connector Information
Passenger Seat-Memory, NAS/SWB: Grounds:
Ground Information

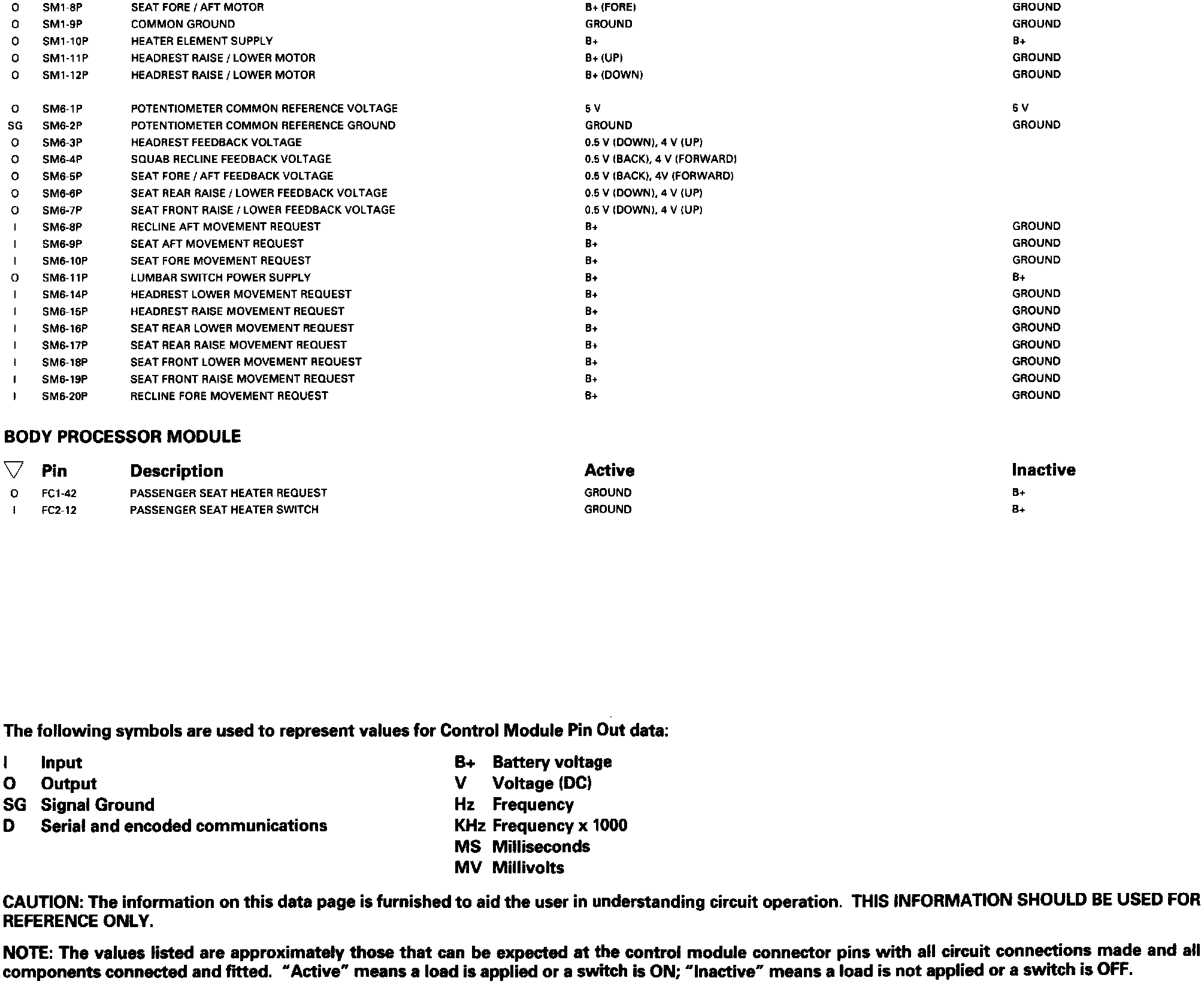

�� #Passenger Seat-Memory, NAS/SWB: Control Module Pin Out Information:
Control Module Pin out Information
