Fig 15.5
3xE'*�E'ϷE'2�E'��E'Security System-NAS:

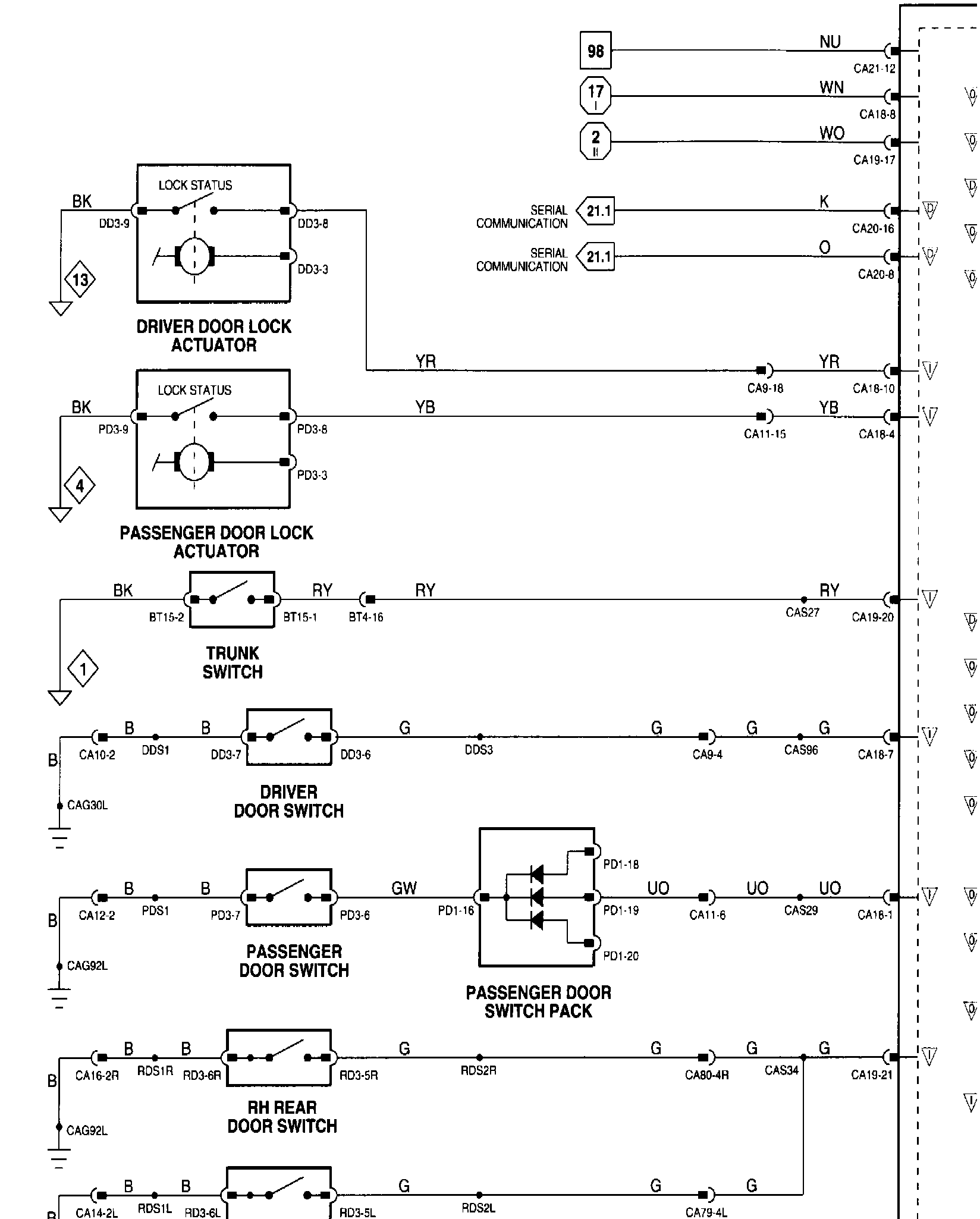

Wiring Diagram

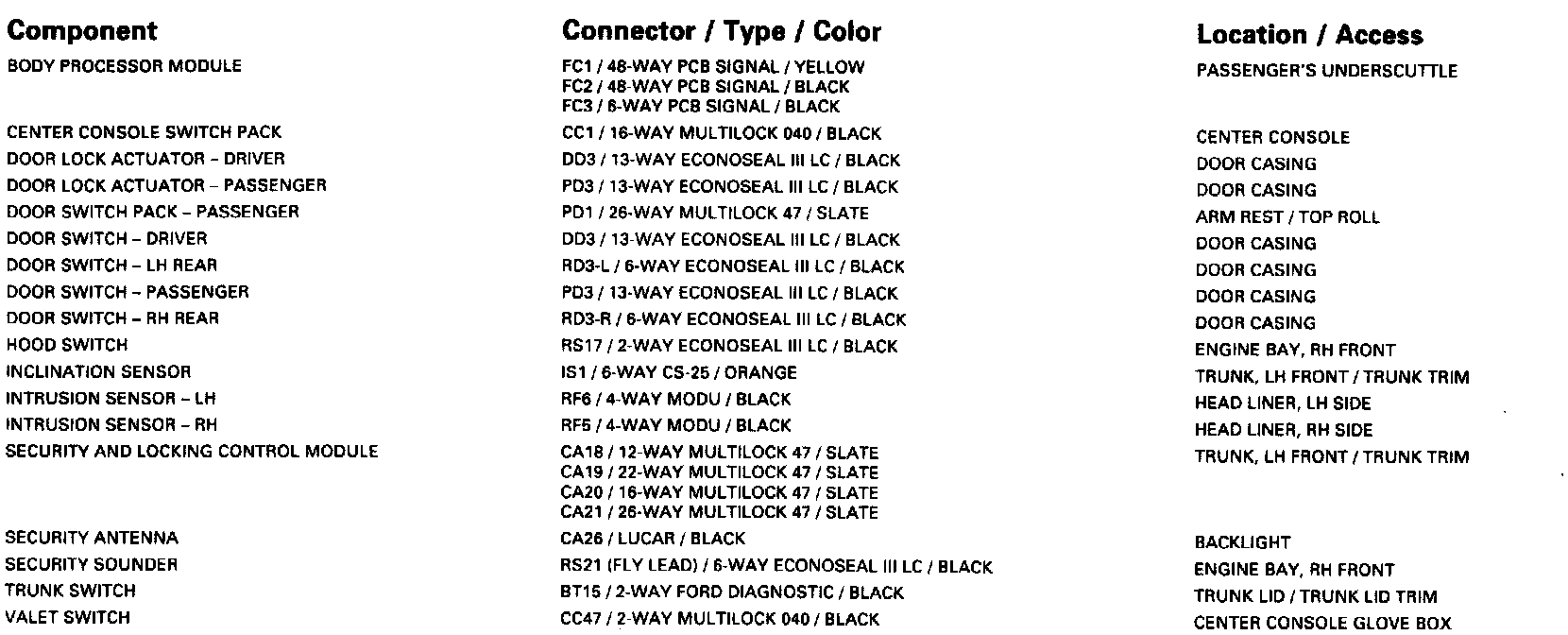

Security System-NAS: Components:
Component Informations

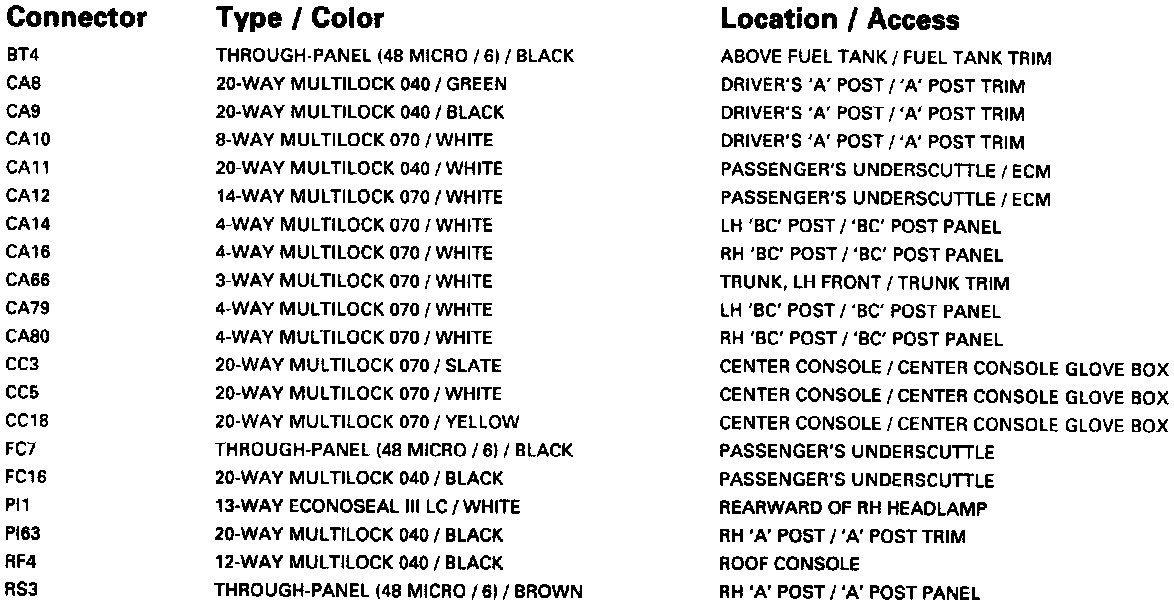

Security System-NAS: Harness-to-Harness Connectors:
Harness-To-Harness Connector Information

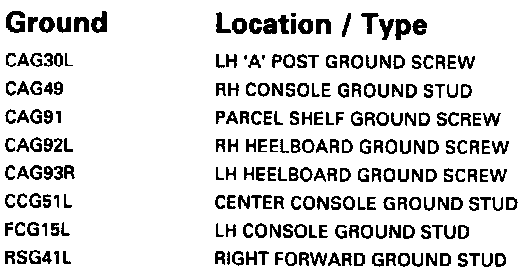

Security System-NAS: Grounds:
Ground Information

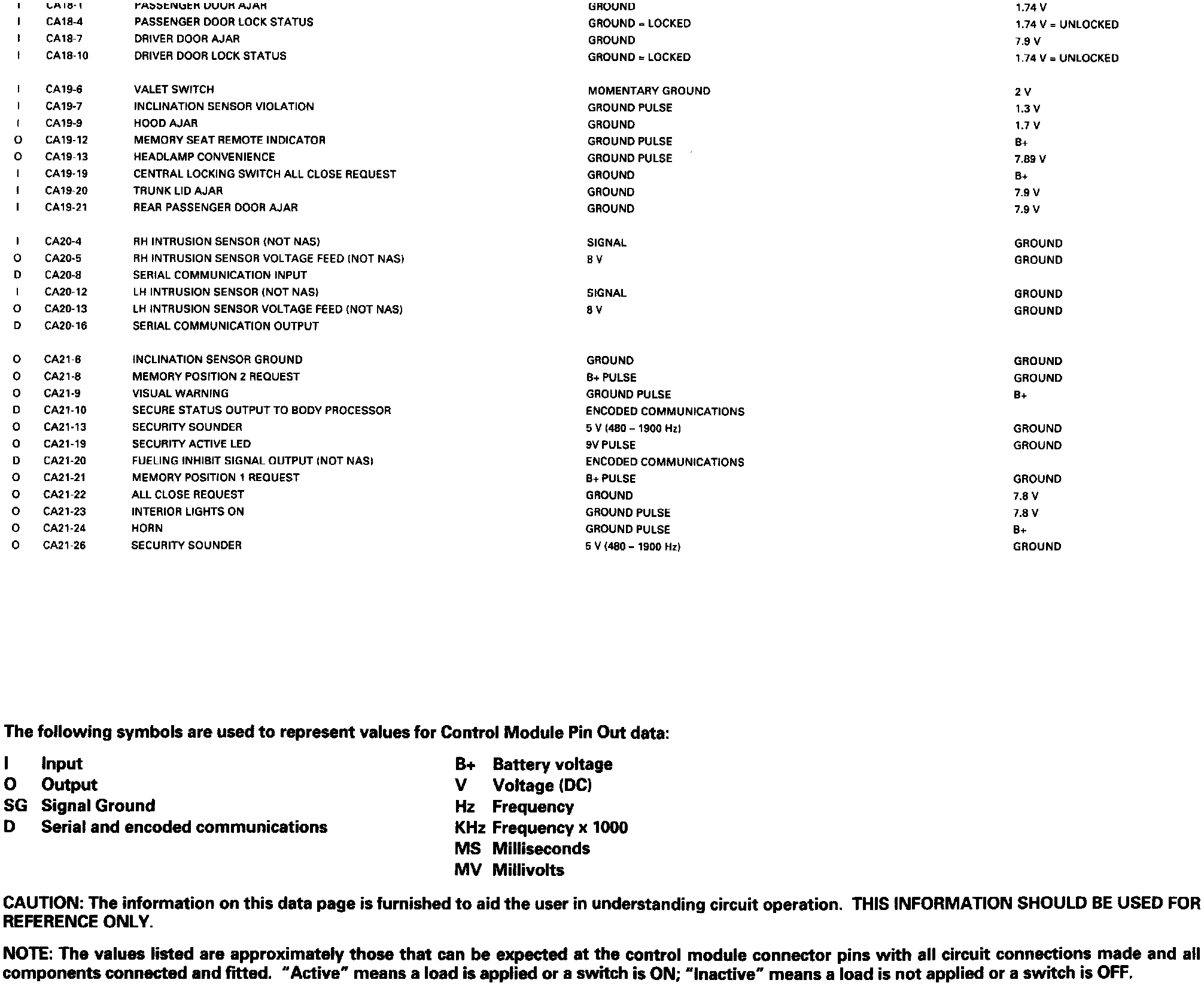

��F'Security System-NAS: Control Module Pin Out Information:
Control Module Pin out Information
