Climate Control, Part 2

Climate Control, Part 2

E��h��d��V��-:

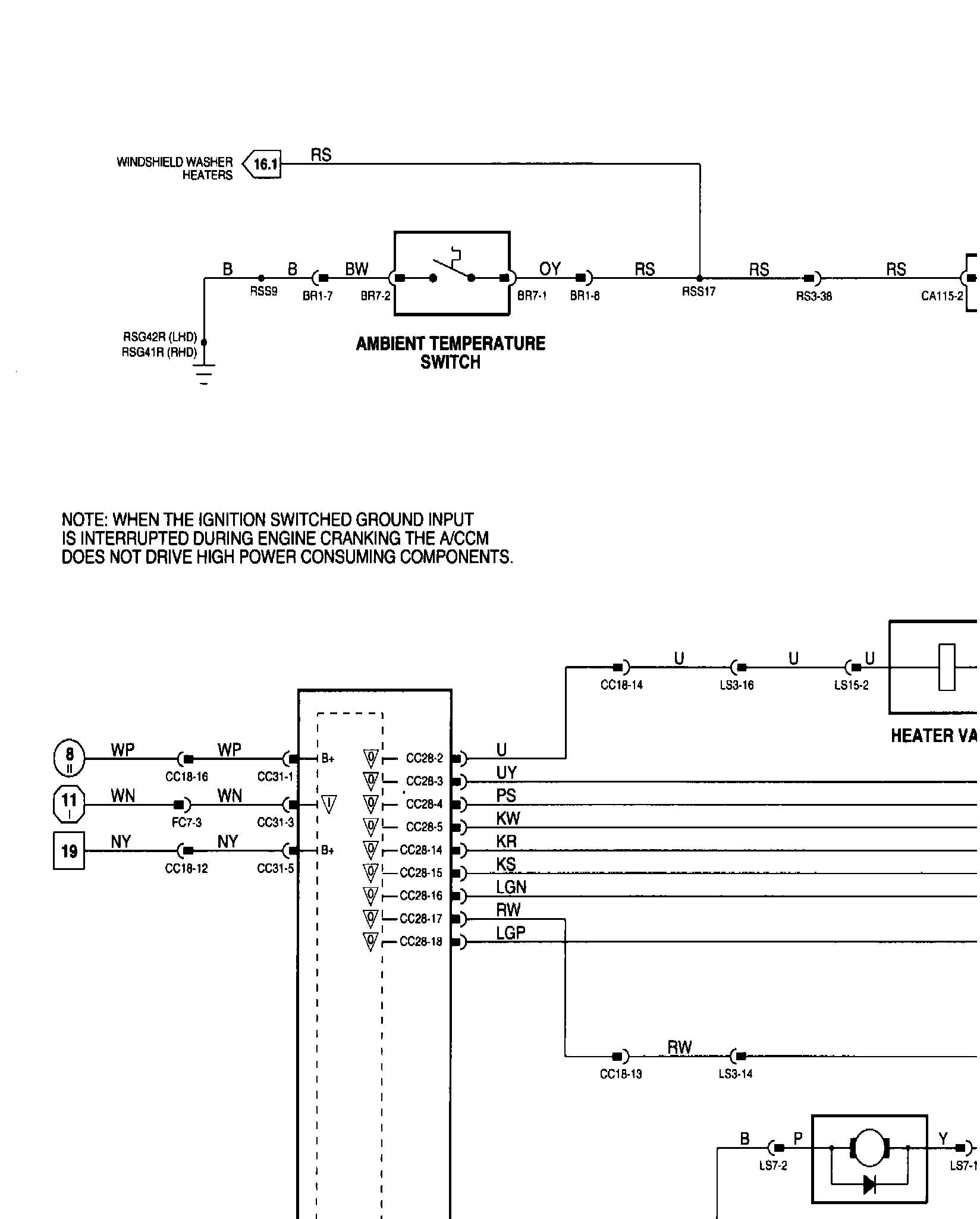

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

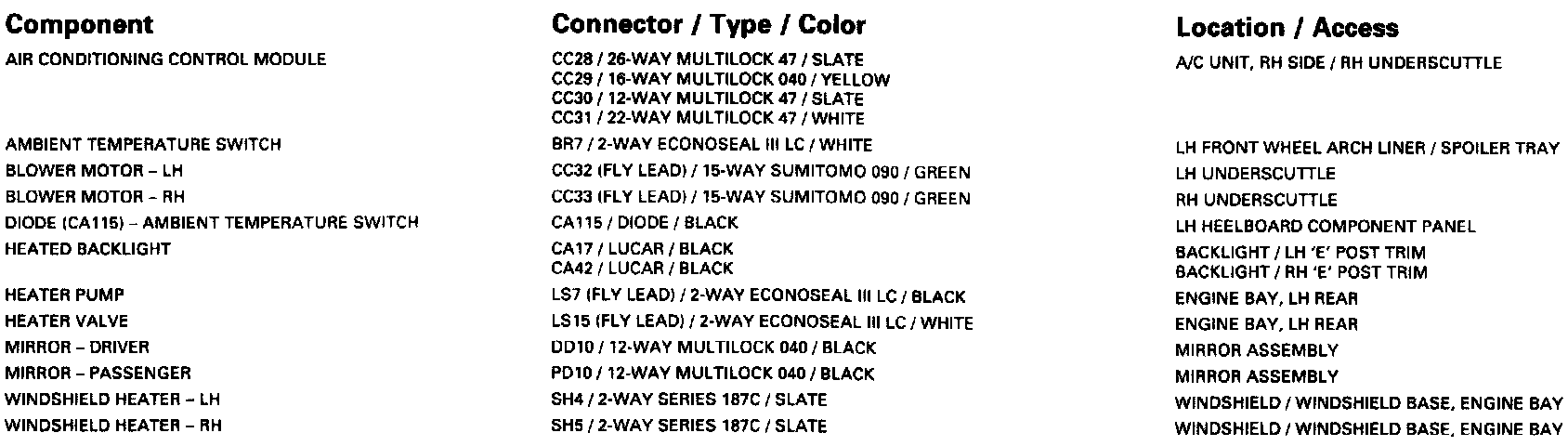

AJ16 And V12 Climate Control Systems, Part2: Components:

Component Information

AJ16 And V12 Climate Control Systems, Part2: Relays:

Relay Information

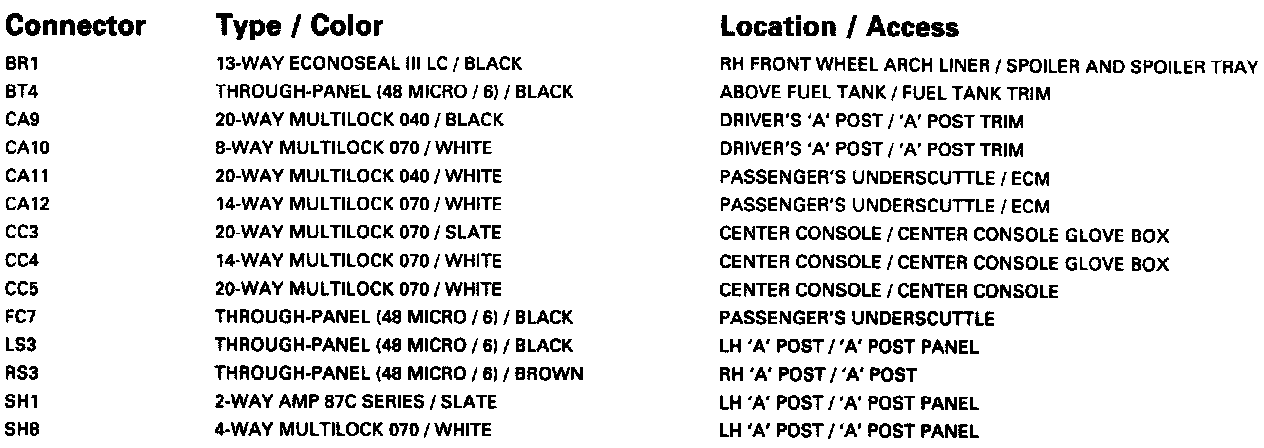

AJ16 And V12 Climate Control Systems, Part2: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

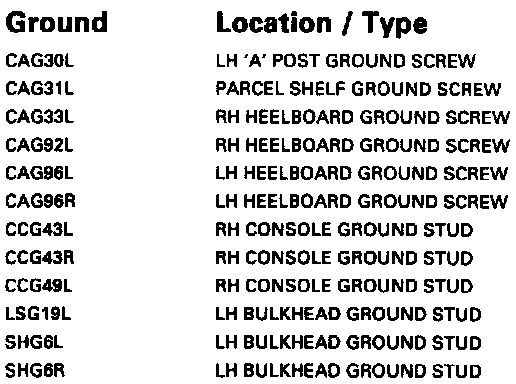

AJ16 And V12 Climate Control Systems, Part2: Grounds:

Ground Information

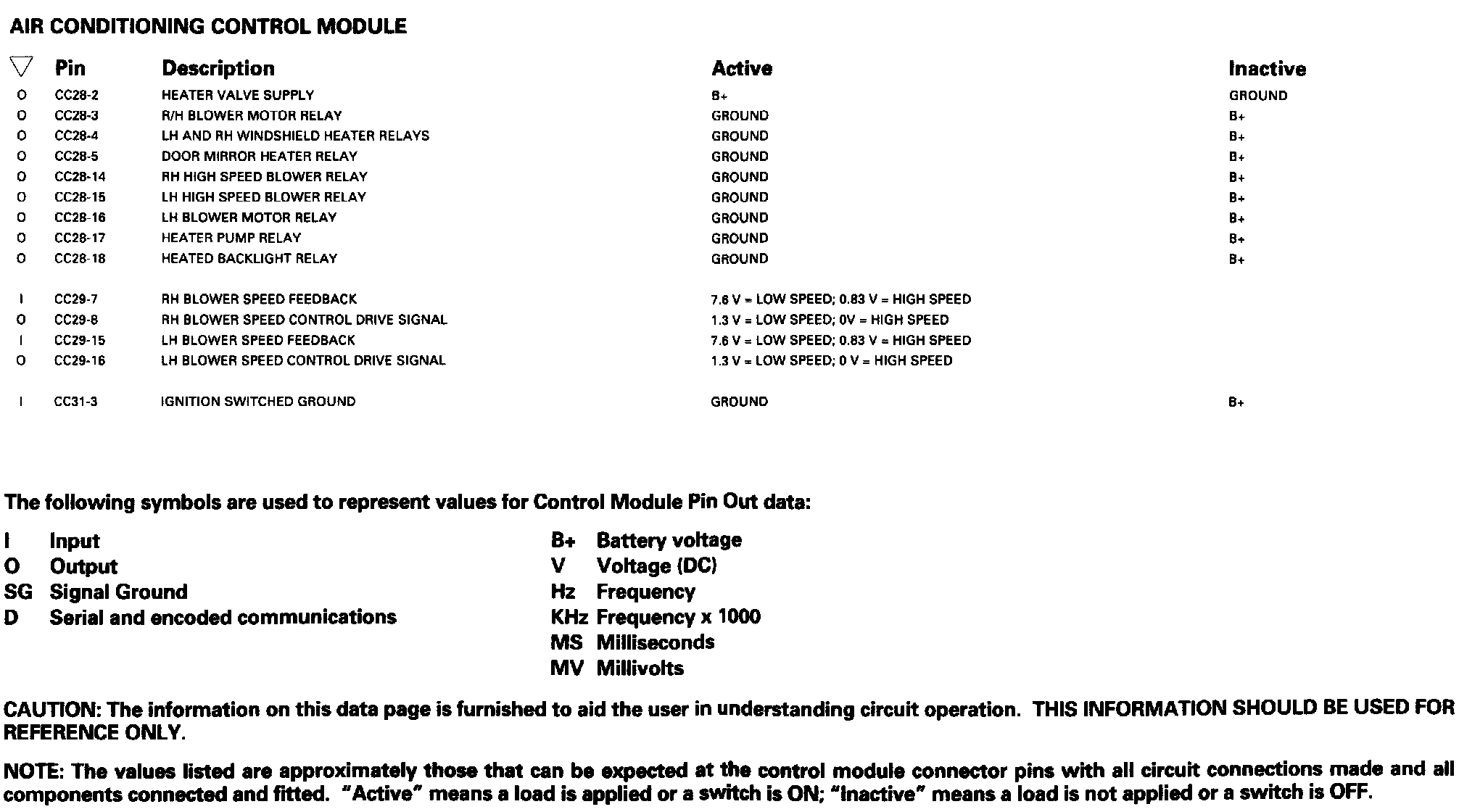

AJ16 And V12 Climate Control Systems, Part2: Control Module Pin Out Information:

Control Module Pin Out Informations
