�*��*t�*��*�+Radiator Cooling; Air Conditioning Compressor-AJ16:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Radiator Cooling; Air Conditioning Compressor-AJ16: Components:

Component Informations

Radiator Cooling; Air Conditioning Compressor-AJ16: Relays:

Relay Informations

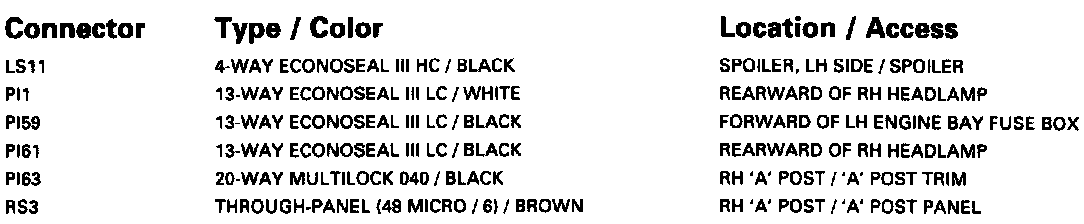

Radiator Cooling; Air Conditioning Compressor-AJ16: Harness-To-Harness Connectors:

Harness-To-Harness Connector Information

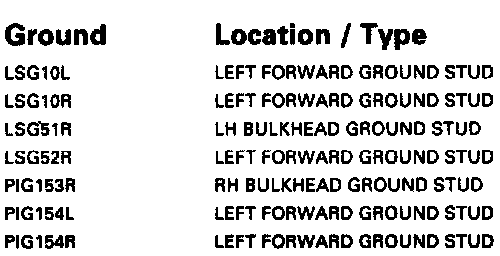

Radiator Cooling; Air Conditioning Compressor-AJ16: Grounds:

Ground Information

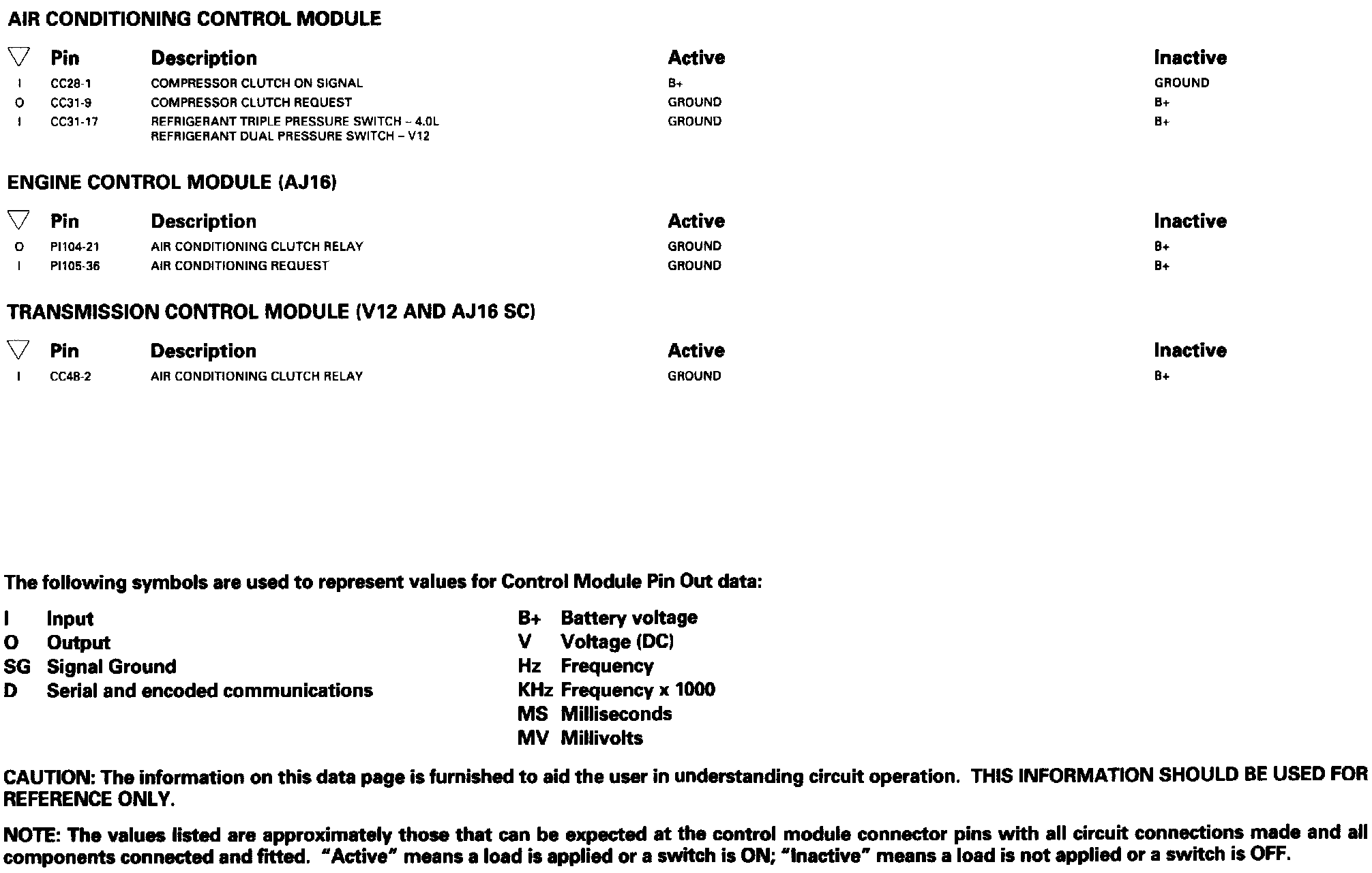

Radiator Cooling; Air Conditioning Compressor-AJ16: Control Module Pin Out Information:

Control Module Pin out Information
