Instrument Hazard/Warning Display

�6$-C$Ck$(�$��$Instrument Hazard / Warning Display:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

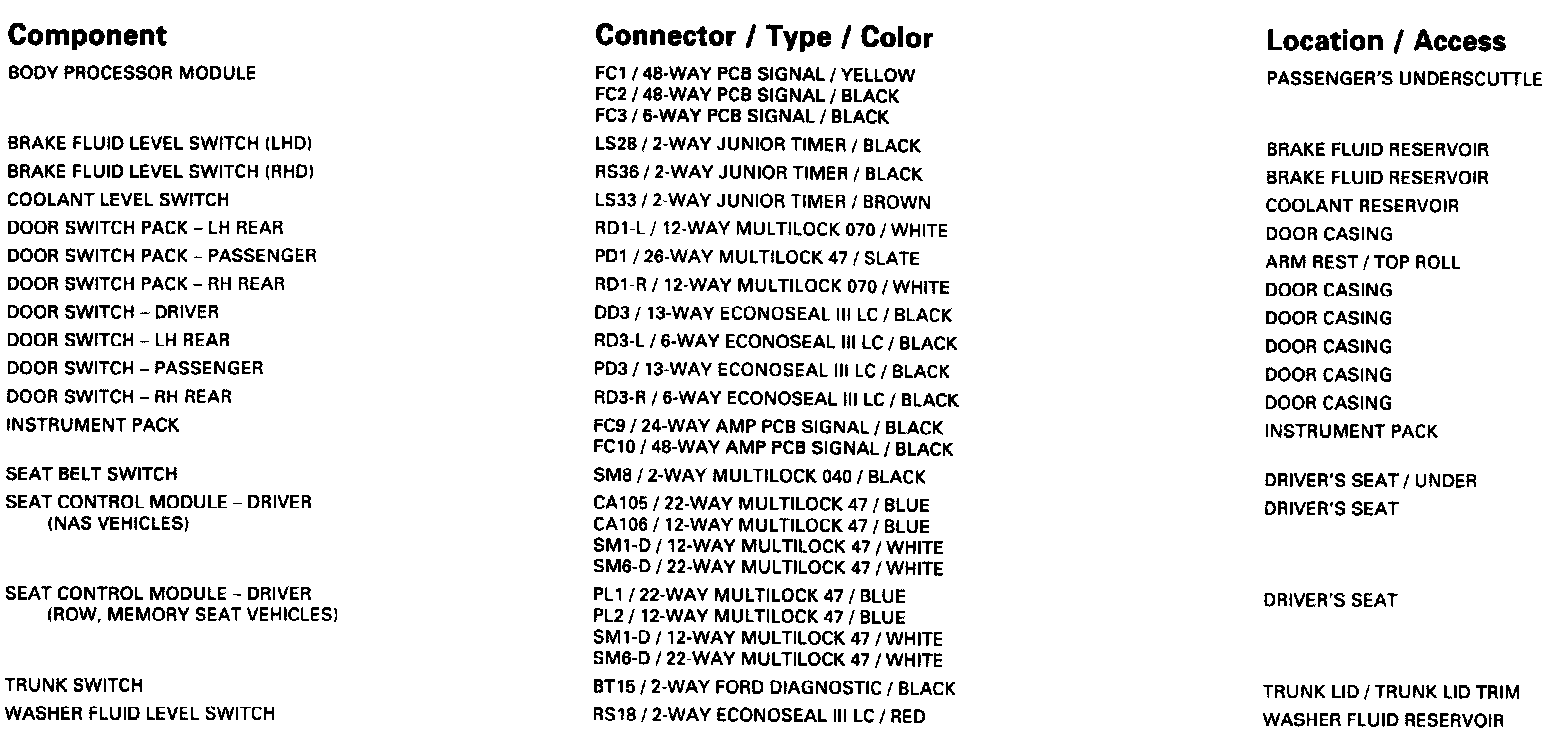

Instrument Hazard / Warning Display: Components:

Component Information

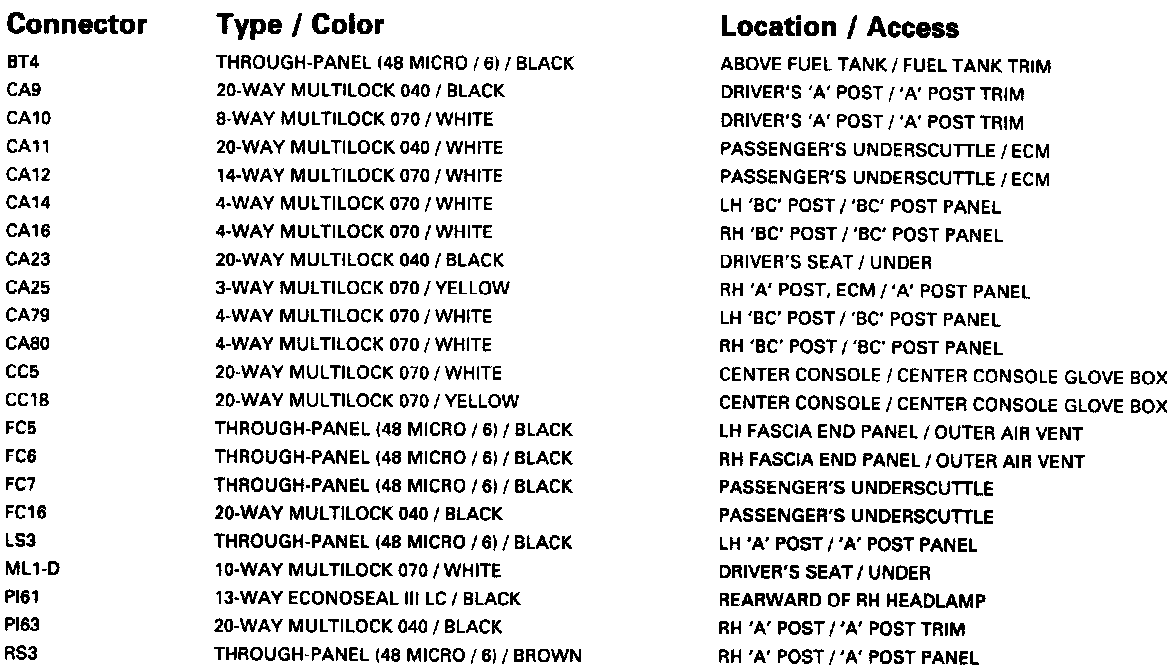

Instrument Hazard / Warning Display: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

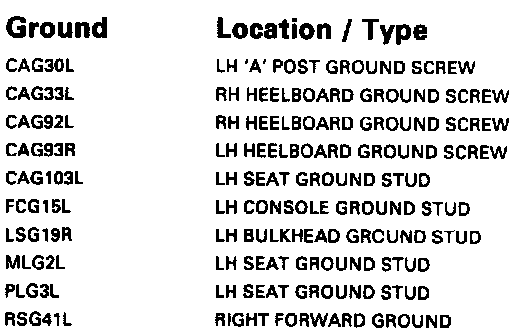

Instrument Hazard / Warning Display: Grounds:

Ground Information

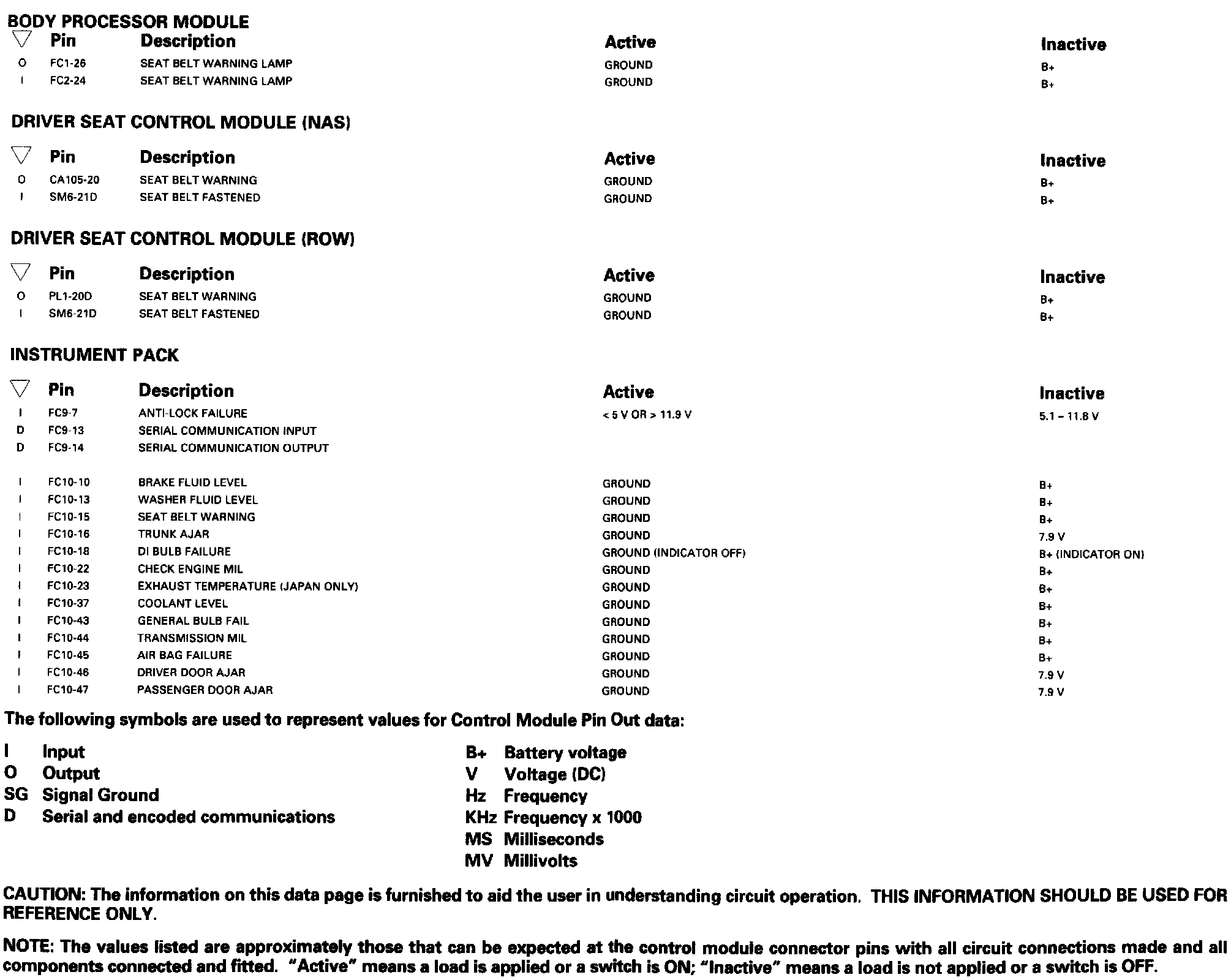

Instrument Hazard / Warning Display: Control Module Pin Out Information:

Control Module Pin Out Informations
