Instrument Normal Display

��$�$y�$��$
$Instrument Normal Display:

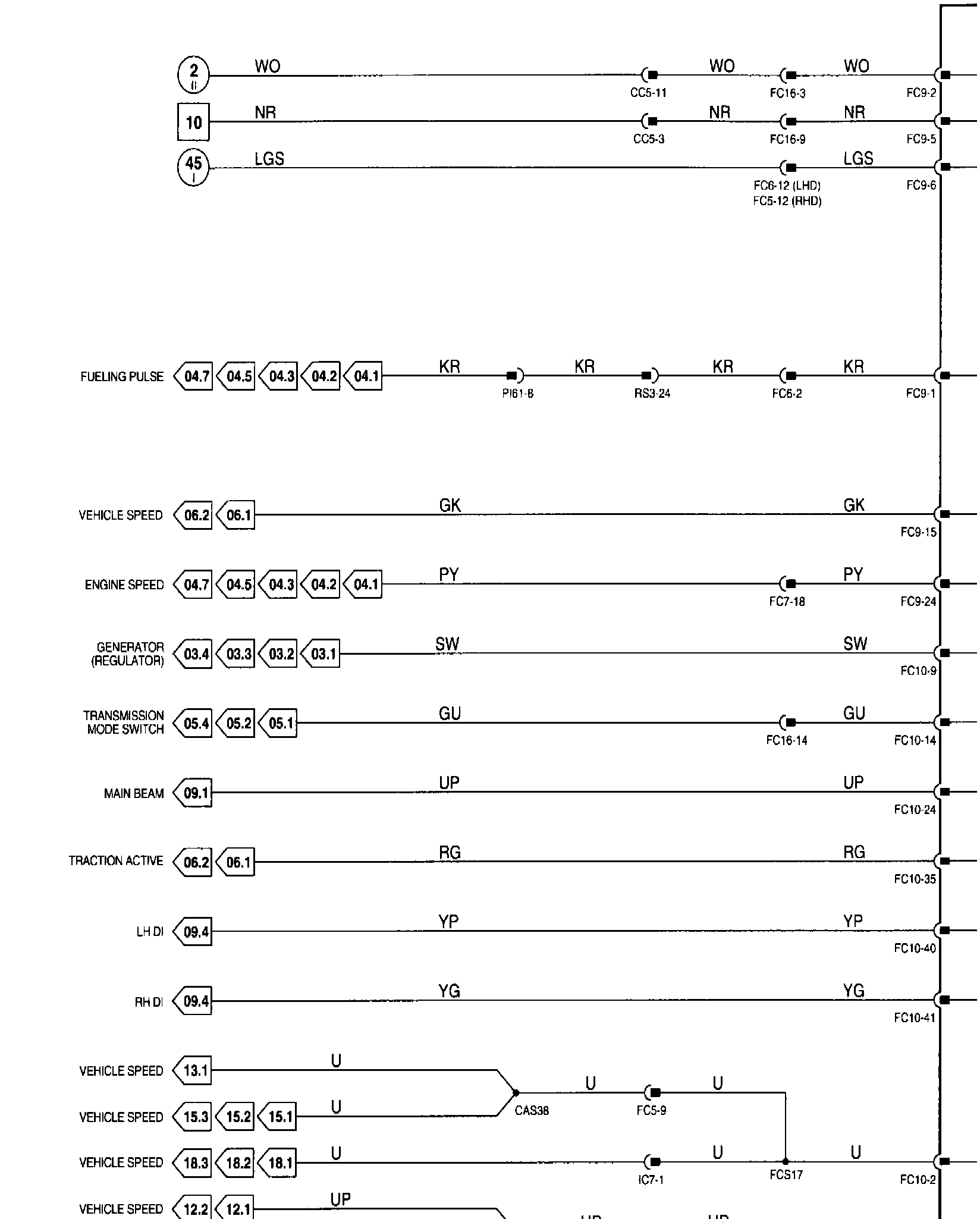

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

Instrument Normal Display: Components:

Component Information

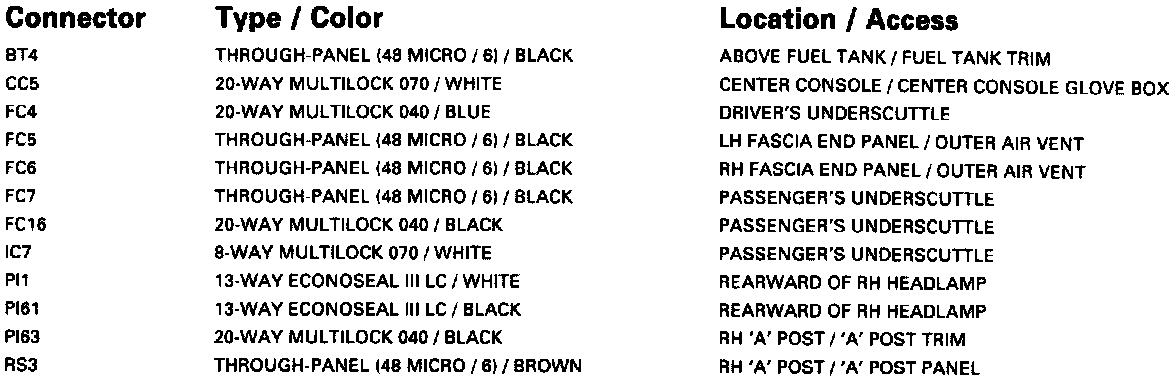

Instrument Normal Display: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

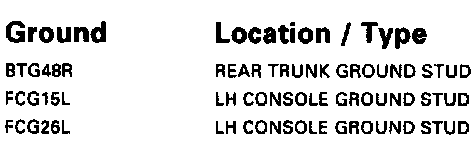

Instrument Normal Display: Grounds:

Ground Information

Instrument Normal Display: Control Module Pin Out Information:

Control Module Pin Out Informations
