Column and Mirror Movement-Memory

��[�\O\qw\��\Column And Mirror Movement-Memory, LHD:

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

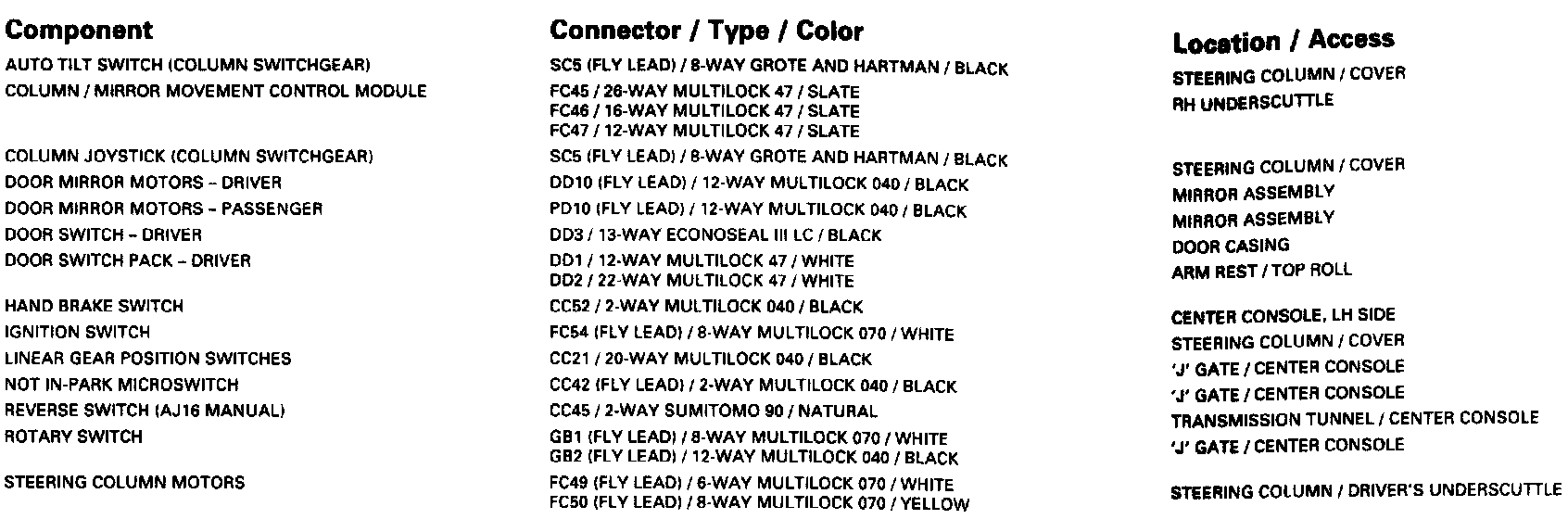

Column And Mirror Movement-Memory, LHD: Components:

Component Information

Column And Mirror Movement-Memory, LHD: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

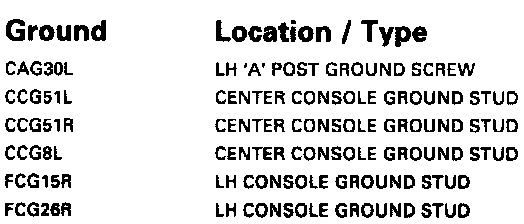

Column And Mirror Movement-Memory, LHD: Grounds:

Ground Information

Column And Mirror Movement-Memory, LHD: Control Module Pin Out Information:

Control Module Pin Out Informations
