System Diagram

���+��:�Z�f��AJ16 NA NAS Engine Management:

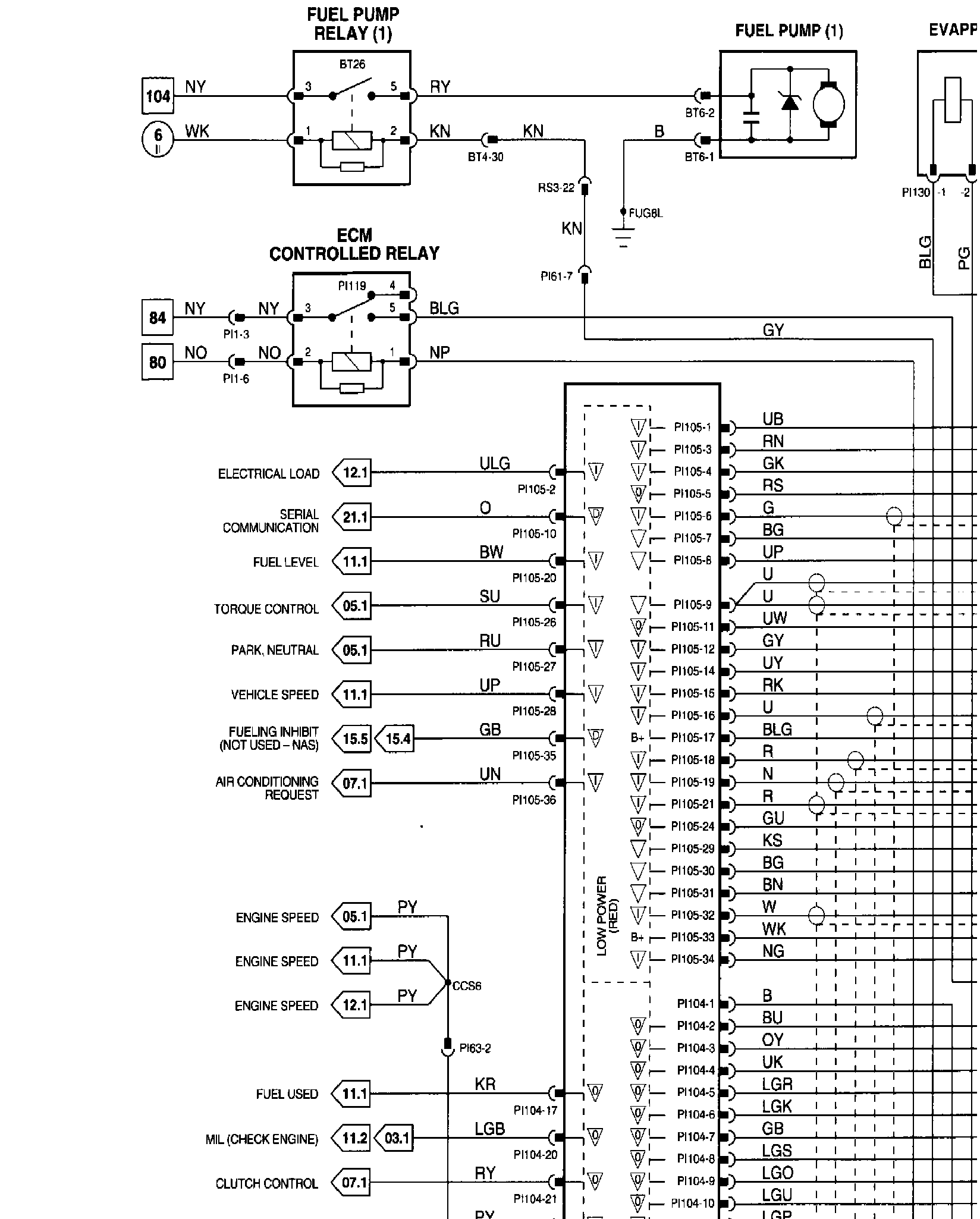

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

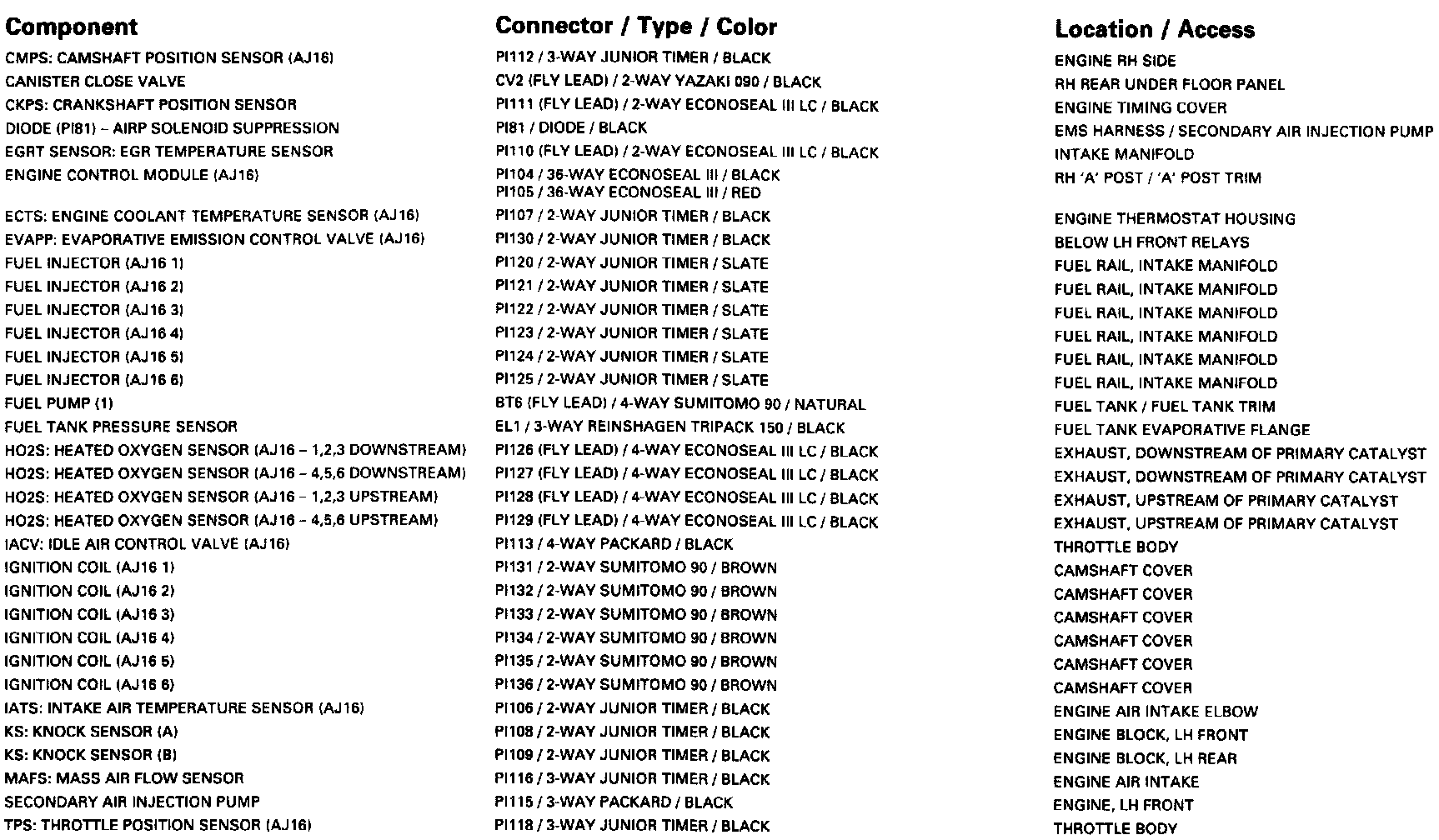

AJ16 NA NAS Engine Management: Components:

Component Information

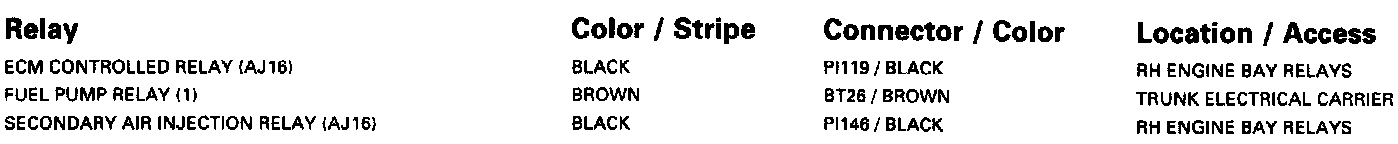

AJ16 NA NAS Engine Management: Relays:

Relay Information

AJ16 NA NAS Engine Management: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

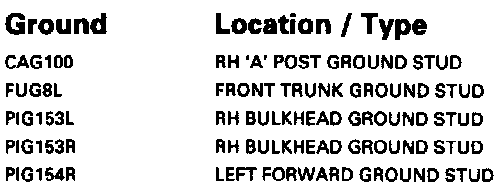

AJ16 NA NAS Engine Management: Grounds:

Ground Information

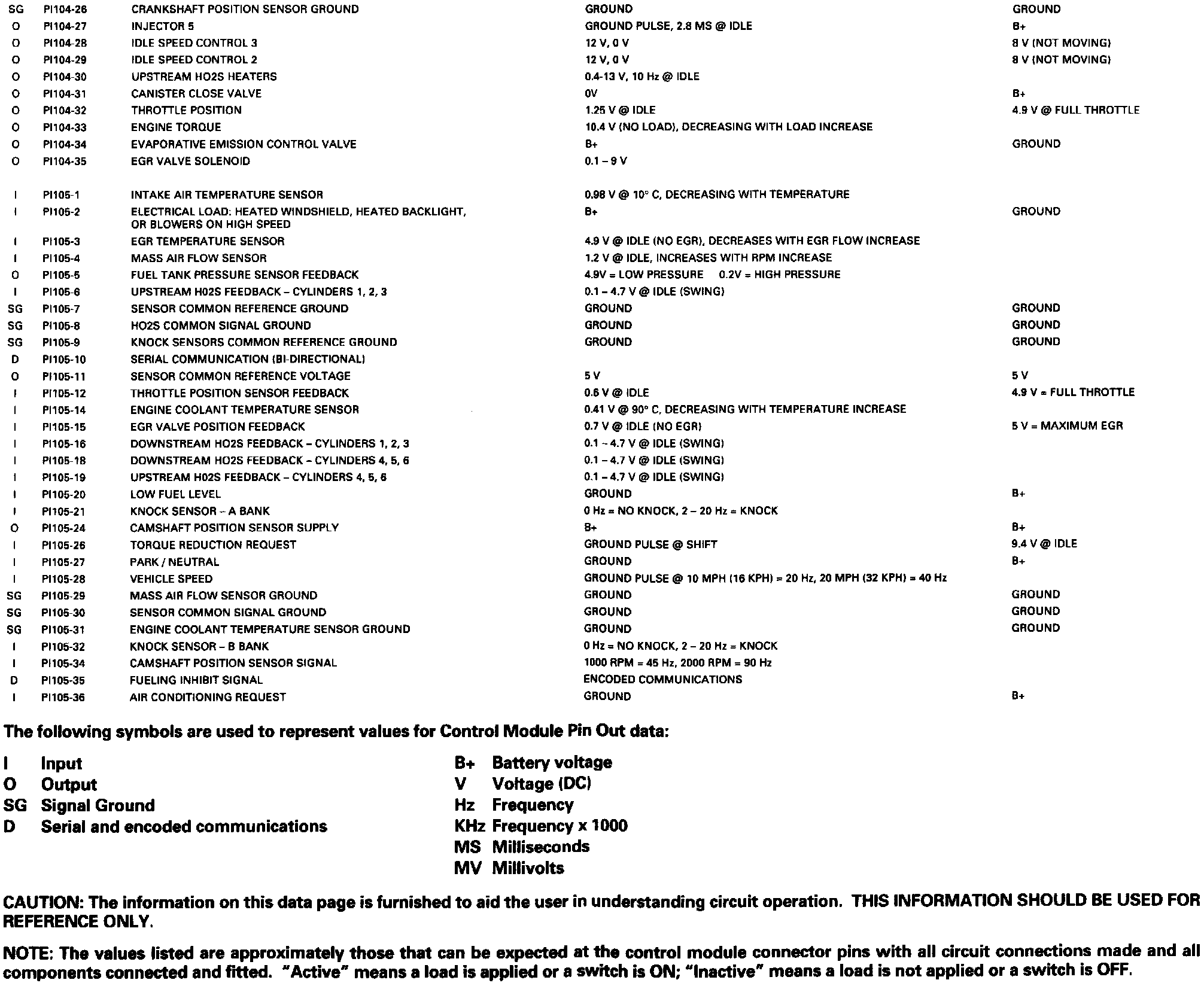

!��AJ16 NA NAS Engine Management: Control Module Pin Out Information:

Control Module Pin Out Informations
