System Diagram

Variable Power Steering-LHD And RHD:

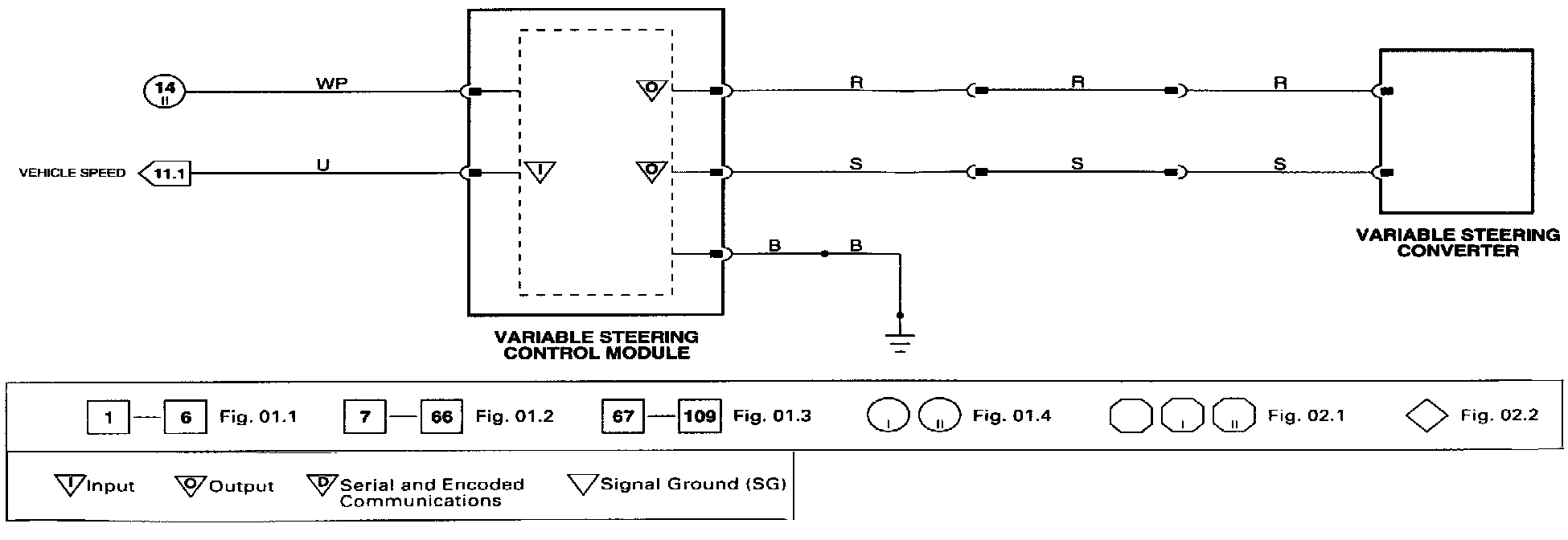

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

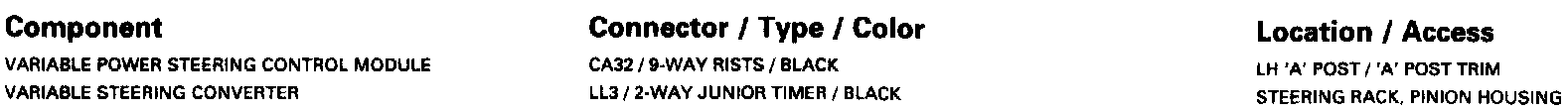

Variable Power Steering-LHD And RHD: Components:

Component Information

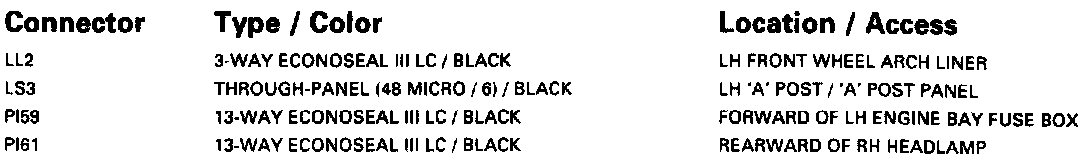

Variable Power Steering-LHD And RHD: Harness-To-Harness Connectors:

Harness-To-Harness Connectors Informations

Variable Power Steering-LHD And RHD: Grounds:

Ground Information

Variable Power Steering-LHD And RHD: Control Module Pin Out Information:

Control Module Pin Out Informations
