Battery Power Distribution

���Z ��#�^,�P<�Battery Power Distribution-Main:

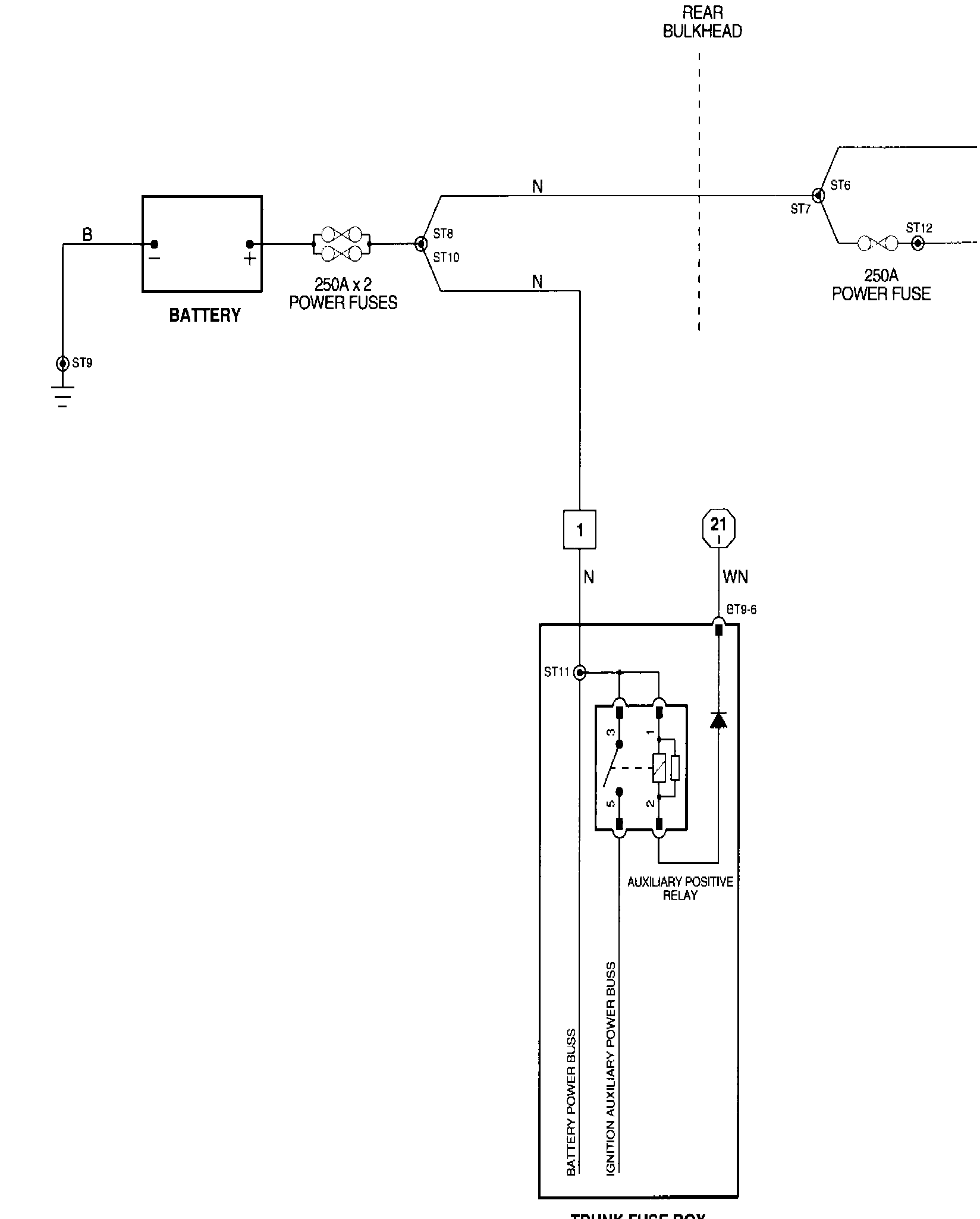

Wiring Diagram

Use the Hyperlink to access Figure Numbers referred to in the wiring diagram. Refer to -- Vehicle / Diagrams Electrical Diagrams

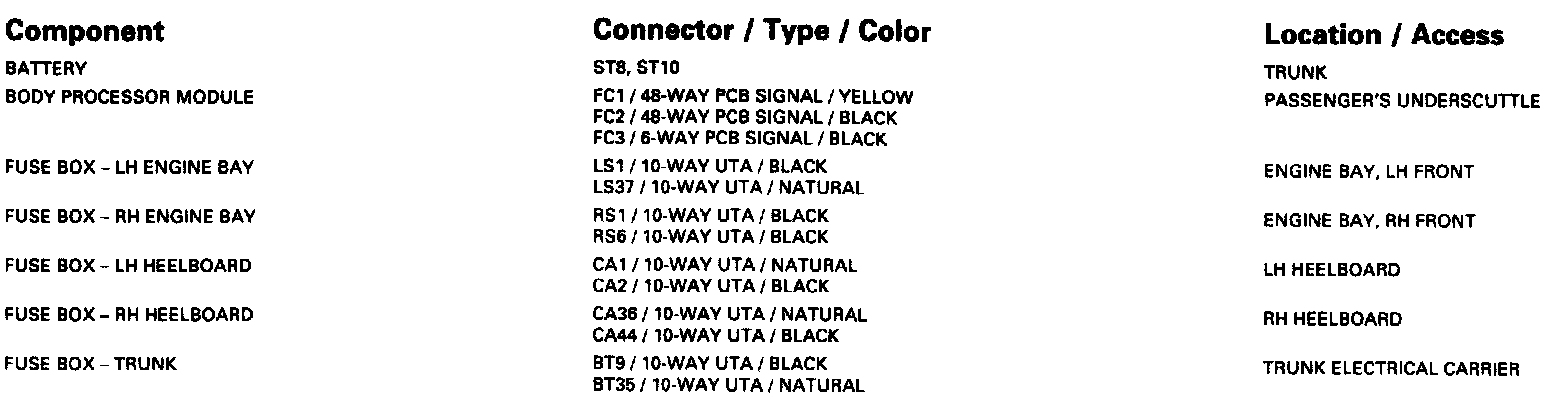

Battery Power Distribution-Main: Components:

Component Information

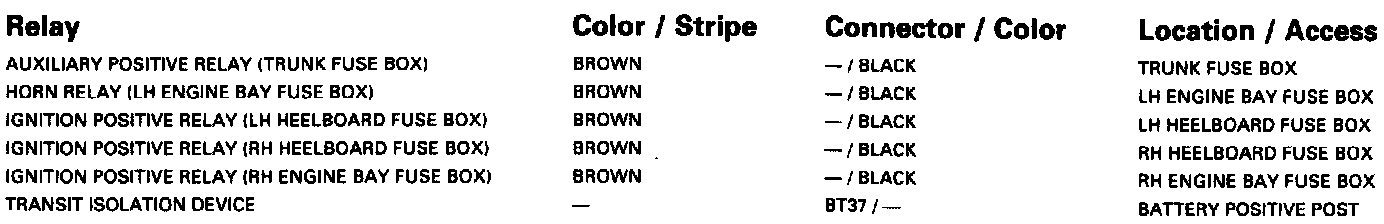

Battery Power Distribution-Main: Relays:

Relay Information

Battery Power Distribution-Main: Harness-To-Harness Connectors:

Harness-To-Harness Connector Informations

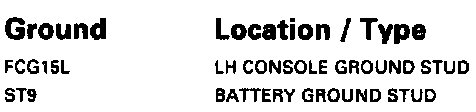

Battery Power Distribution-Main: Ground:

Ground Information

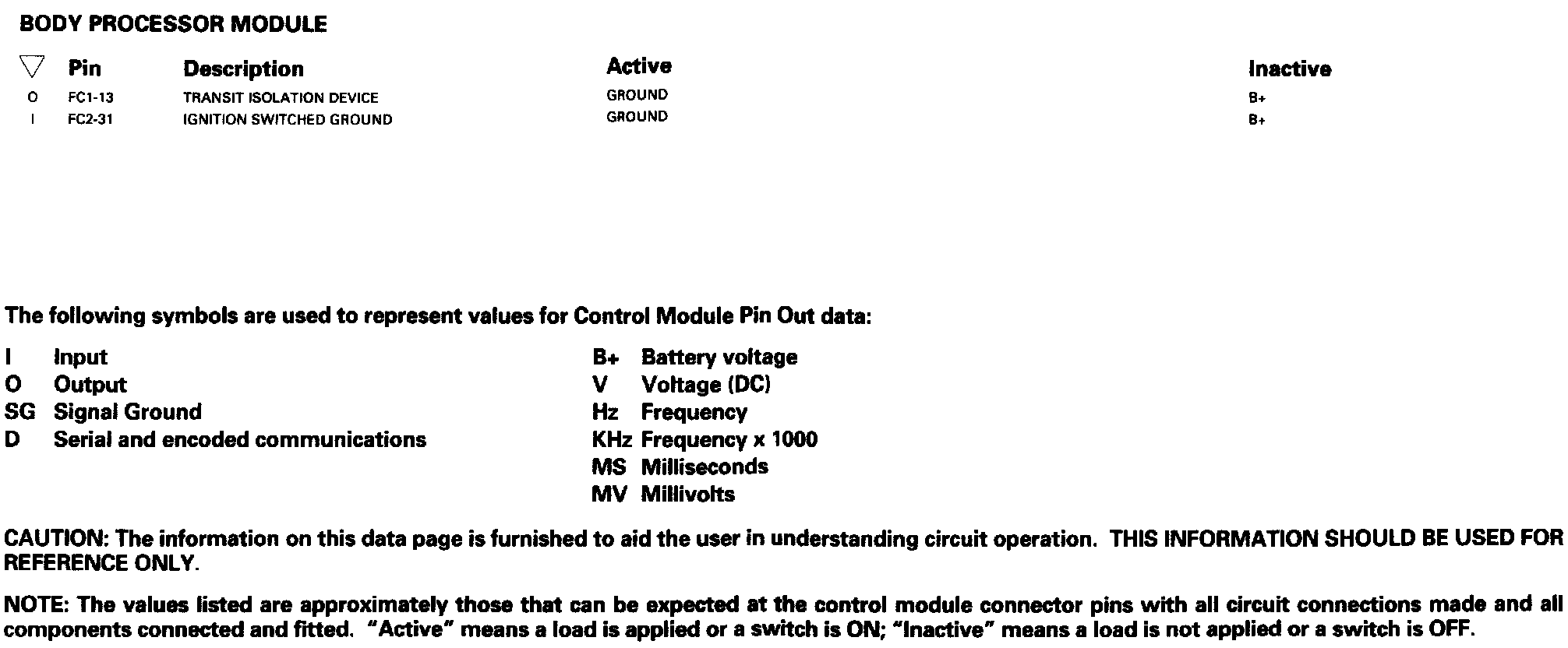

Battery Power Distribution-Main: Control Module Pin Out Information:

Control Module Pin Out Informations
